Tektronix TCP0030 User Manual

Accessories and Options

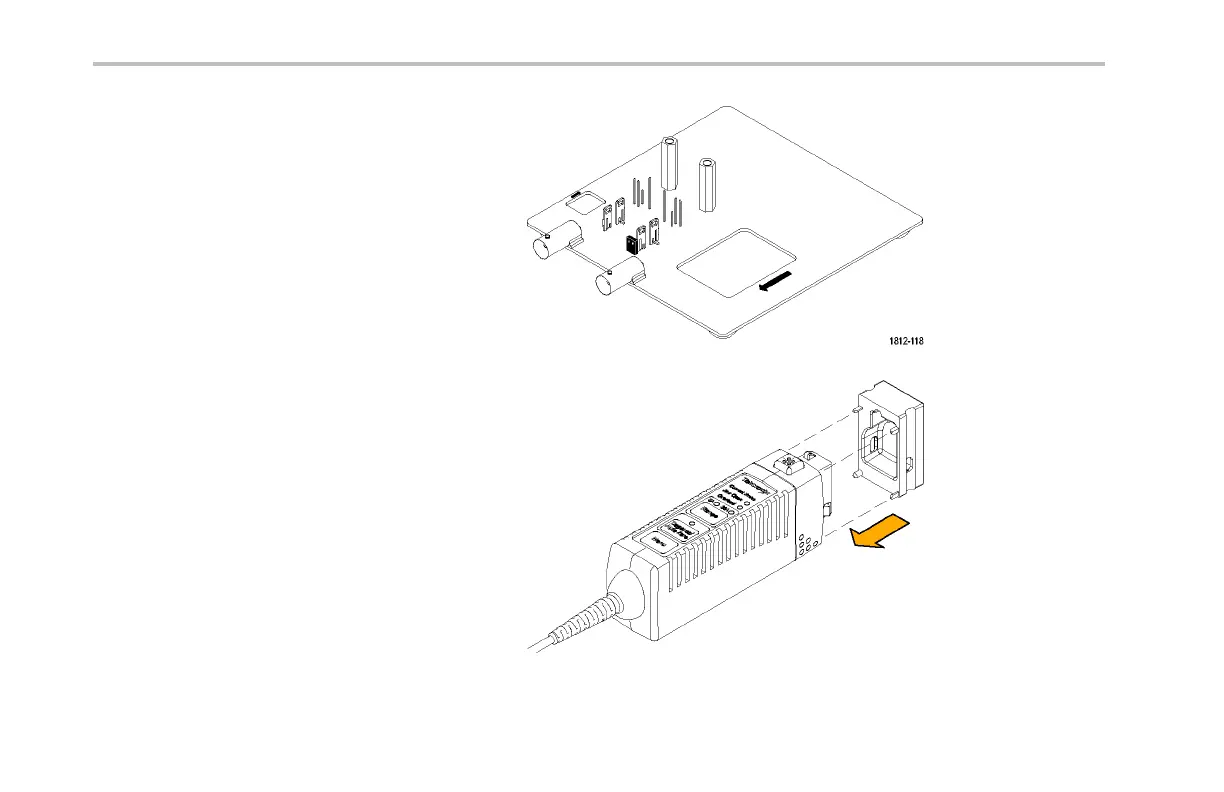

Deskew/Calibration Fixture
Connect th is fixture to host instrument s that
support the probe calibration or deskew
procedures. The deskew procedures
compensate for gain errors and timing
differences between current and voltage
probes. Refer to your oscilloscope manual or
fixture documentation for instructions.
Reorder Tektronix part number: 067-1686-00
Compensation Box Tool
Use this tool to open the compensation box
when servicing the probe (replacing the switch
panel, cable, or co m pensation box). Refer to
the compensation box replacement procedures
for instructions for using the tool.
Reorder Tektronix part number: 003-1892-00
24 TCP0030 Current Probe Instruction Manual

Tektronix TCP0030 Specifications

General

Connector Type	BNC
Cable Length	1.5 m
Probe Type	Current Probe
Maximum Peak Pulse Current	30 A
Requires Power Supply	Yes
Sensitivity	1 mA/div
Rise Time	11.7 ns
Input Impedance	1 MΩ
Maximum DC Current	±30 A
