ME910G1 Hardware Design Guide
1VV0301593 Rev.12 Page 66 of 93 2021-09-24
Not Subject to NDA

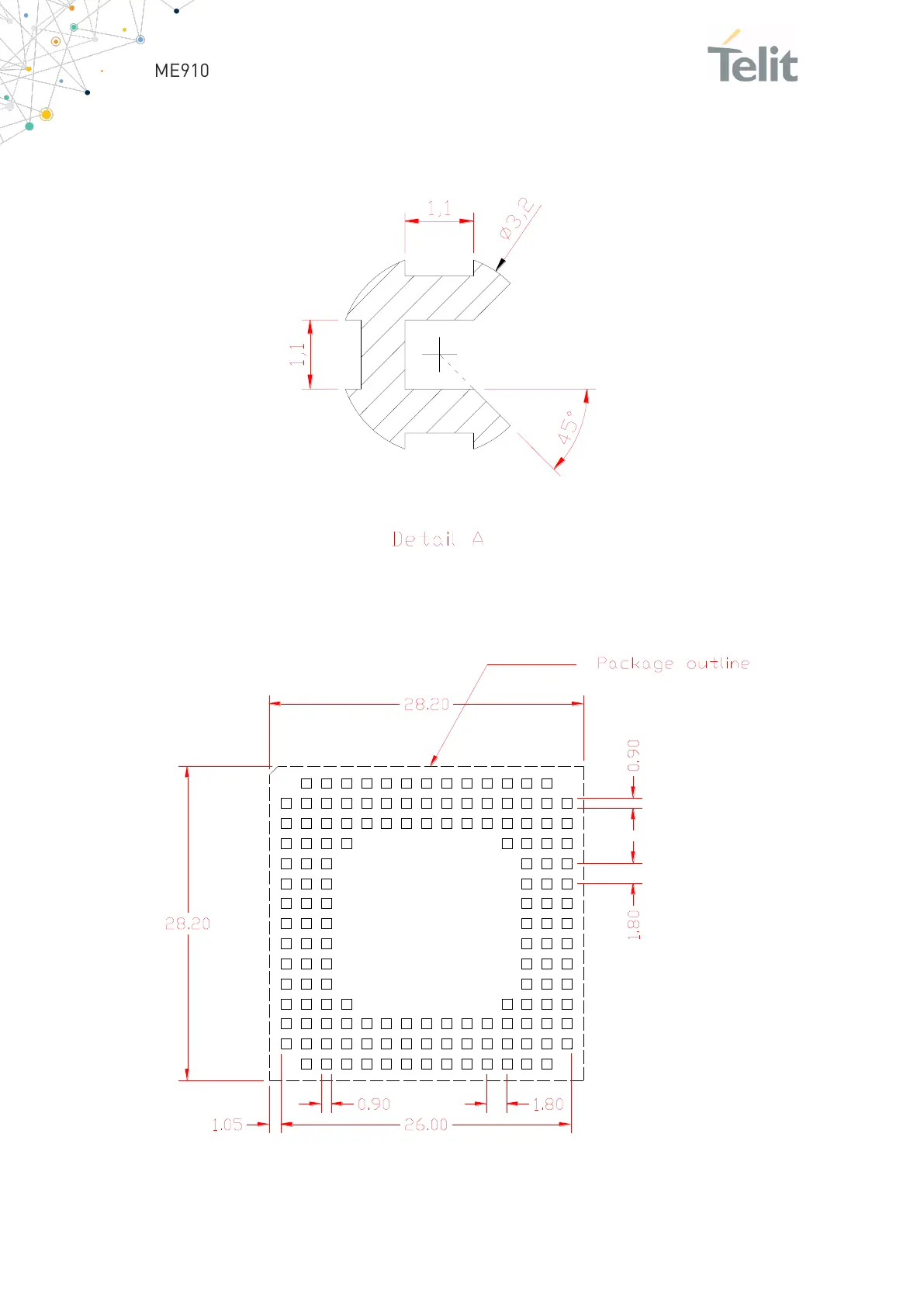

SOLDER RESIST PATTERN (dimensions in mm)
Figure 26:: Solder resist pattern
TOP TRANSPARENT VIEW
Figure 27: Top transparent view
