OMNIA MPX NODE MANUAL

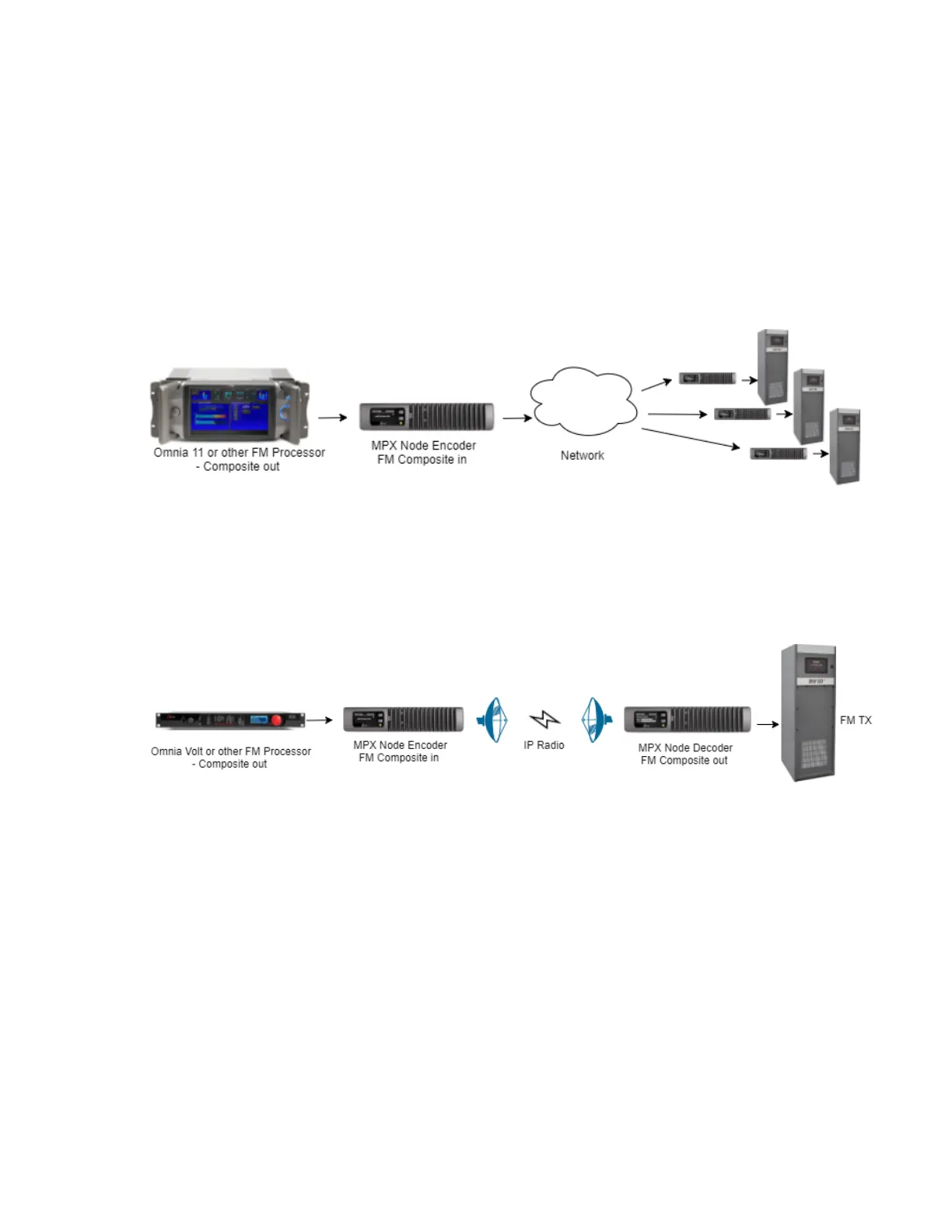

One Processor to Many Transmitters
This diagram gets at one of the primary benefits of MPX over IP: each decoder is a “carbon
copy” of the main processor. Main sites, backups and repeaters all get the same signal.
This leverages the value of your best processor, creates sonic uniformity at all TX sites,
and means you don’t have to tweak and adjust each transmission chain!
Use with private networks, and IP radios
With μMPX, lower bandwidth IP connections and narrow band STL channels can now be
used to transport MPX signals.
