OMNIA MPX NODE MANUAL

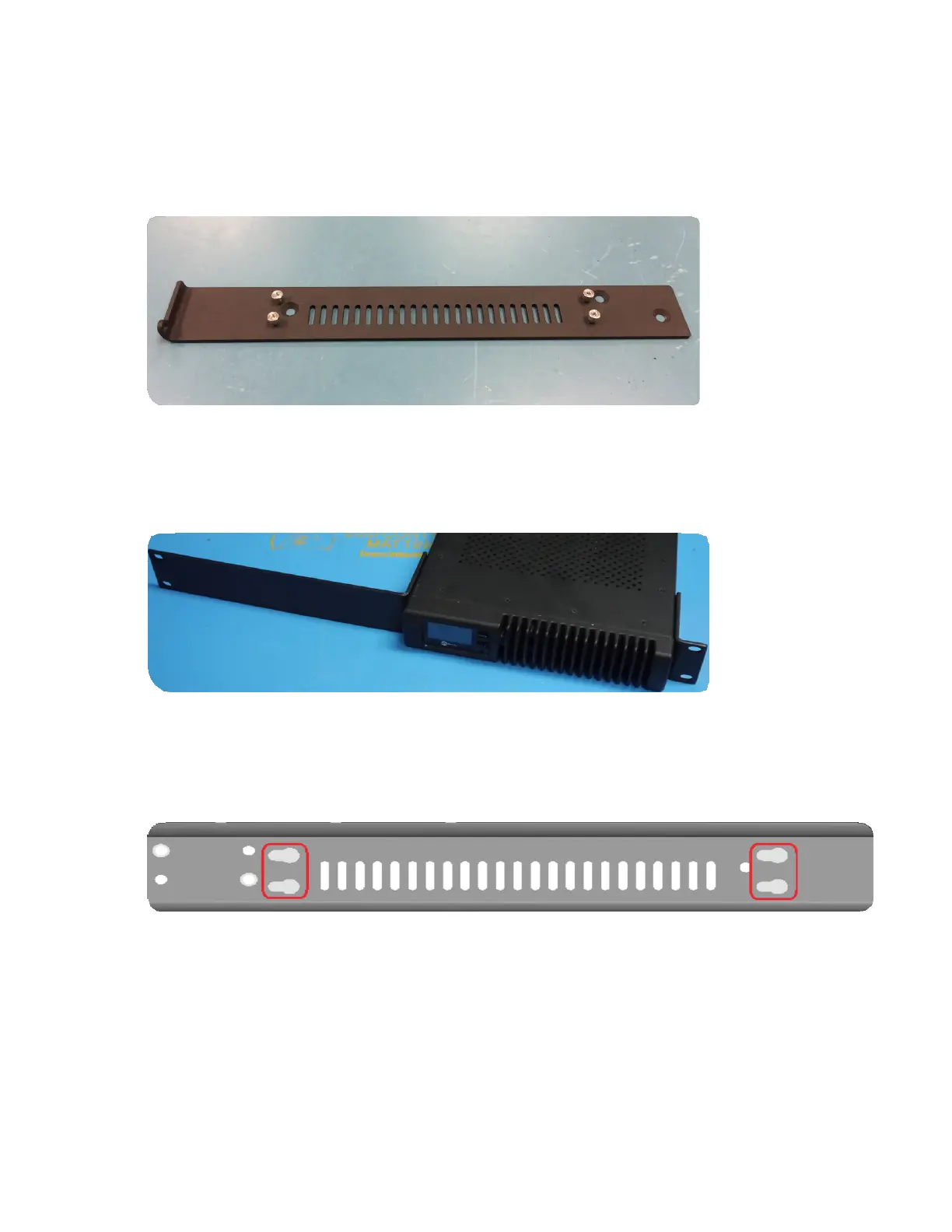

Revision 2 “L” bracket (p/n 1771-00128)
Single MPX Node
Secure the short rack ear to one side of the MPX Node. Secure the long ear to the opposing
side of the xNode.
Double MPX Node
Mounting 2 MPX Nodes together is accomplished with the “L” bracket, as all MPX Nodes
use a revision 2 chassis design.
If you are attempting to join an MPX Node to an older Axia xNode, and no keyholes are
present on the xNode right side when looking from the front, please skip to the Revision 1
section.
