V1.1-OCTOBER 2019
| 47
OMNIA MPX NODE MANUAL
Identifying Switches

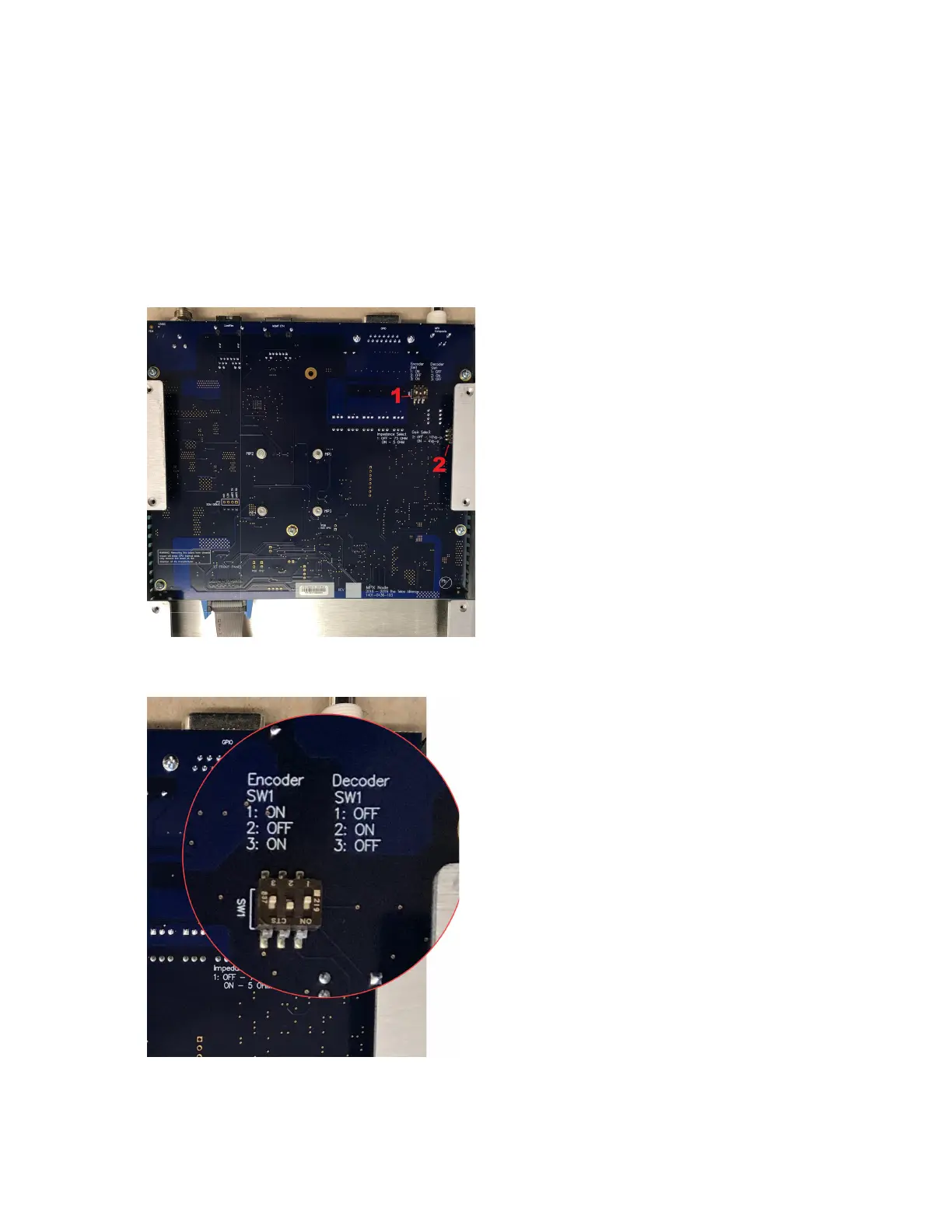

With the top cover removed, you can identify the 2 switch banks
Encode/Decode Mode Switch is closest to the composite connector. The Impedance and
Gain switch is under the chassis mount flange
Encode / Decode Mode (Switch bank 1)
When adjusting, we recommend using a magnifying glass and a small flat screwdriver
to move switches. This photo depicts an MPX Node set as a Decoder, with switches set
1:Off, 2:On, 3:Off
