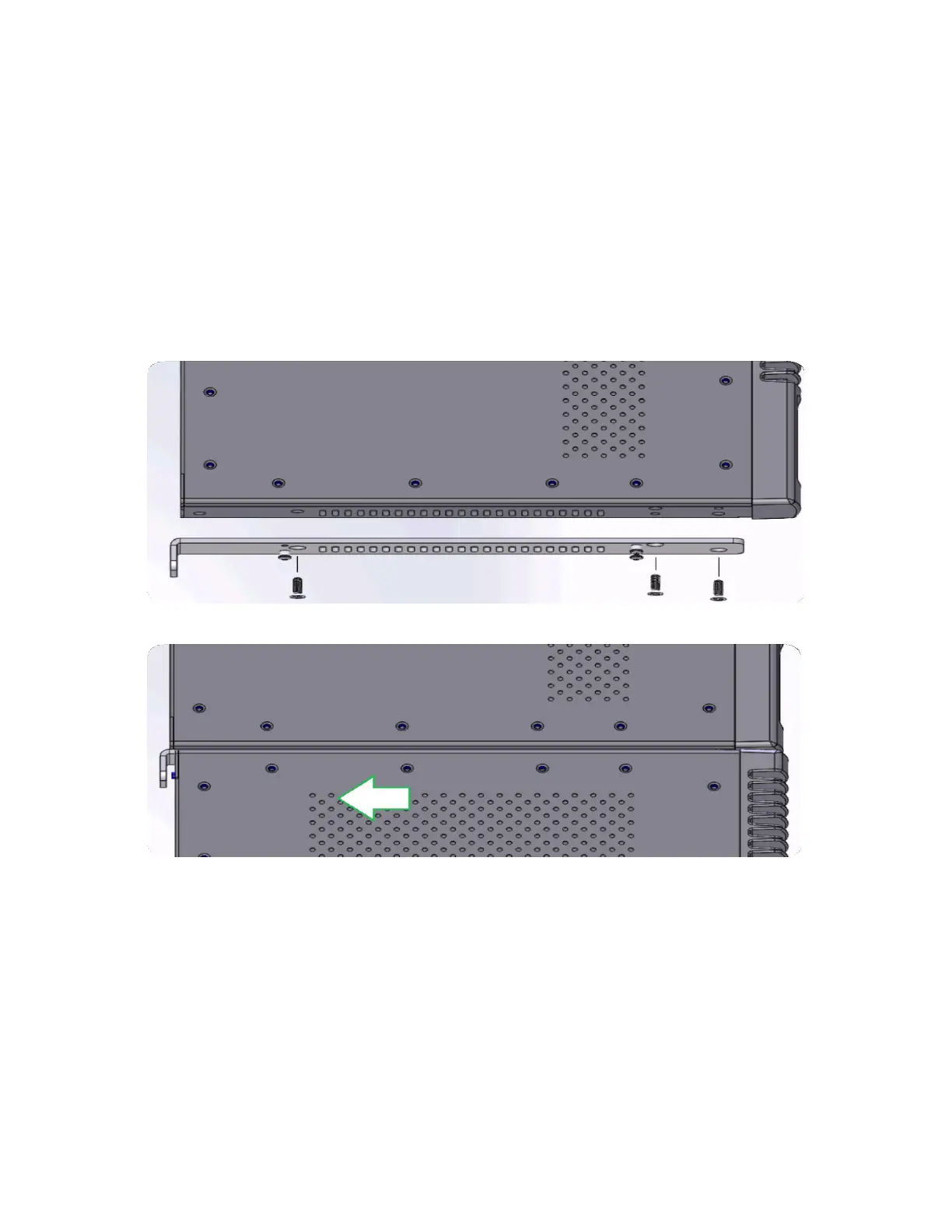

Secure the provided bracket to an MPX Node’s left side as shown with three provided flat
head screws.
Place the second MPX Node, so that the shoulder screws of the bracket fit into the key-
holes. Slide the MPX Node into place. NOTE: The shoulder screws may require adjust-
ment for better fit.
Lock the MPX Node in place with a screw secured to the back.
