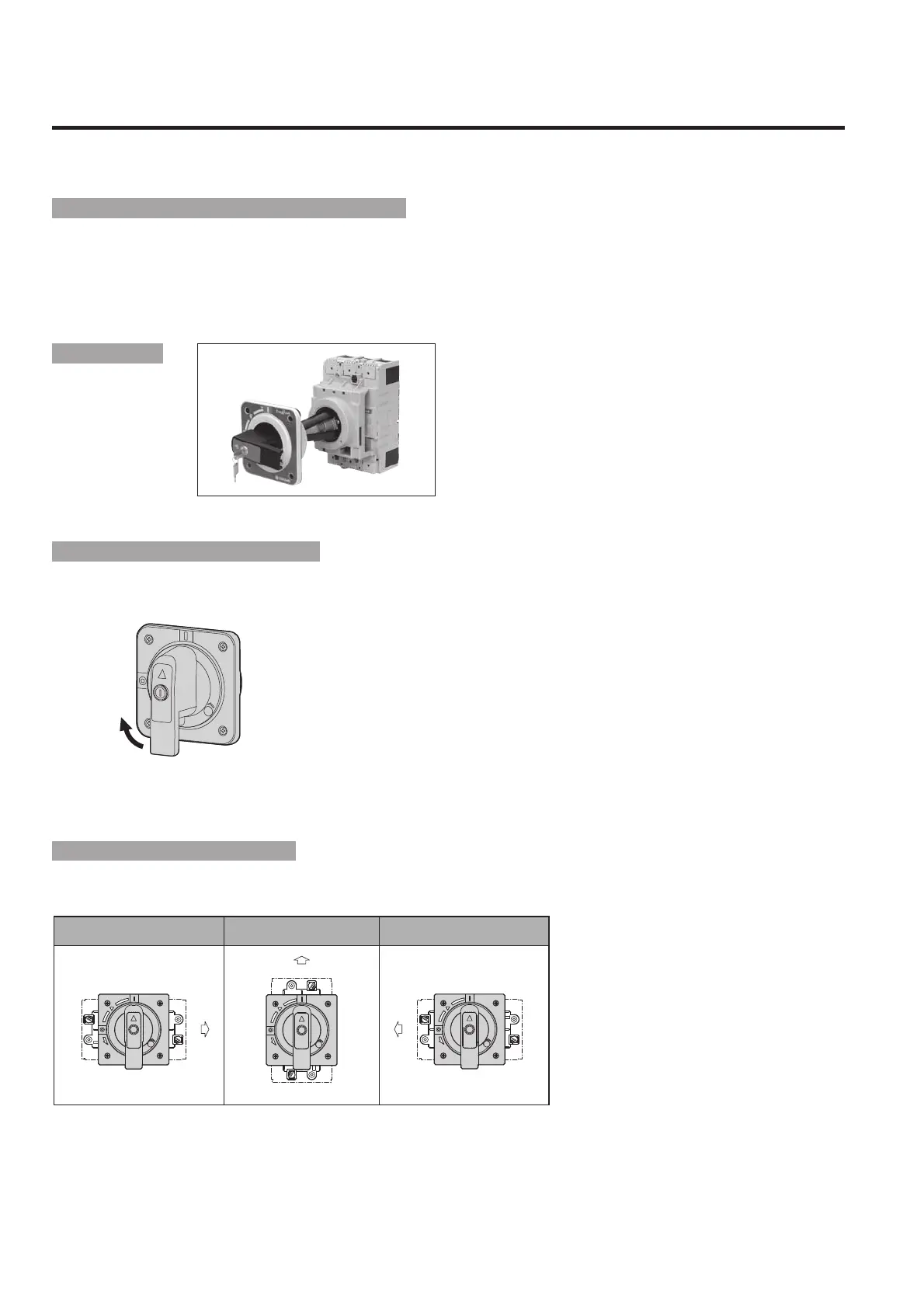

TERASAKI TemBreak 2 - Door-Mounted (Depth Adjustable) (HP)

5-20
Externally mounted accessories
2. External operating handles
Door-mounted type external operating handles allow breakers installed in control centers or switchboards to be manually operated from outside
and complies with IEC 60204-1.
This handle assembly consists of an operation mechanism section which is to be installed in the breaker body, a handle section which is to be
installed in a panel and a square shaft which couples both the sections.
(3) Door-mounted (depth adjustable) (HP)
Rotate the operating handle clockwise to turn the
breaker on.
Rotate clockwise
to turn the breaker ON
TRIP
ON
OFF
OPEN
RESET
TRIP
ON
OFF
OPEN
RESET
TRIP
ON
OFF
OPEN
RESET
Line (ON)
Line (ON) Line (ON)
Horizontal mounting /
ON to move the breaker handle right
Horizontal mounting /
ON to move the breaker handle left
Vertical mounting /
ON to move the breaker handle up
■ Outer view■ Outer view
■ Operation direction of handles
The ON and OFF positions of the handle and the positions of drilled holes in the panel do
not need to be changed depending on the breaker mounting direction.
■ Breaker mounting direction
