Terex Genie GS-1330m Maintenance Manual

Maintenance Manual November 2021
Quarterly Maintenance Procedures
32 Scissor Lifts Part No. 1305686GT
Q-4
Inspect the Battery Balancer -
GS-69 DC
Genie specifications require that this procedure be
performed quarterly.

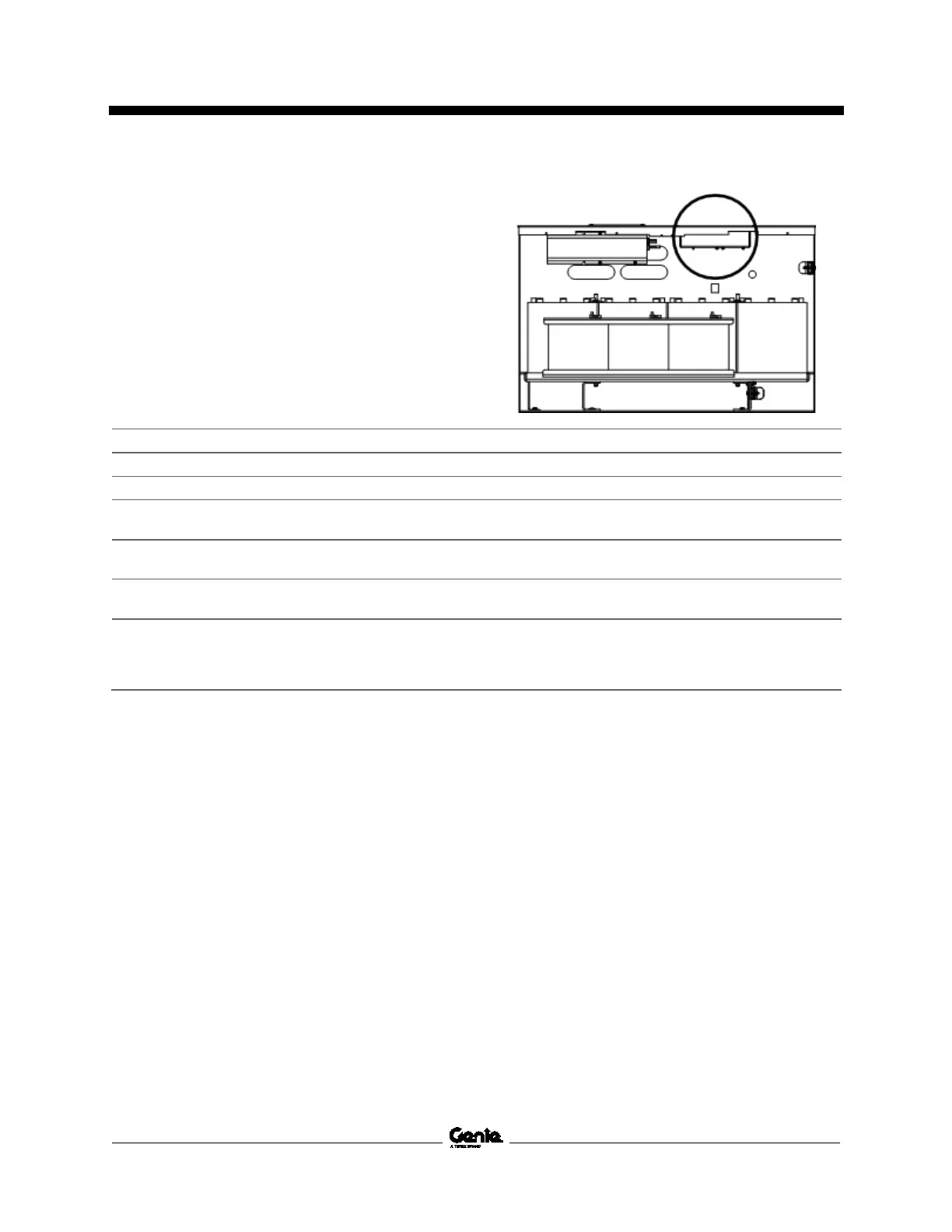

1 Open the battery compartment and locate the
fuse box.
2 Locate the LED indicator under the fuse box
and watch the LED for 5 seconds to verify the
battery balancer condition.
Mode
Led indicator
Condition
Balanced
Green
- Steady
Voltage
differential (< 0.3V)
Equalizing
Green
- Blinking (1 per sec)
Voltage differential (> 0.3V)
Low or Over voltage
Auto shutdown
Green w/ Orange blinking
(
1 every 4 seconds)
B
- to 24V battery pack beyond normal range (< 18V or > 33V)
Low or Over voltage
Auto shutdown
Green w/ Orange blinking
(2 every 4 seconds)
24V to 48V battery pack beyond normal range (< 18V or >
33V)
24V circuit
Disconnected
No LED
24V lead not connected
Auto shutdown
Red
- Steady
1) Voltage differential, 8V between battery
packs.
OR
2) 48V disconnected.
