November 2021 Maintenance Manual
Programmed Maintenance Procedures
Part No. 1305686GT Scissor Lifts 81
9 Lift the wheels off the ground and then place
jack stands under the drive chassis for
support.

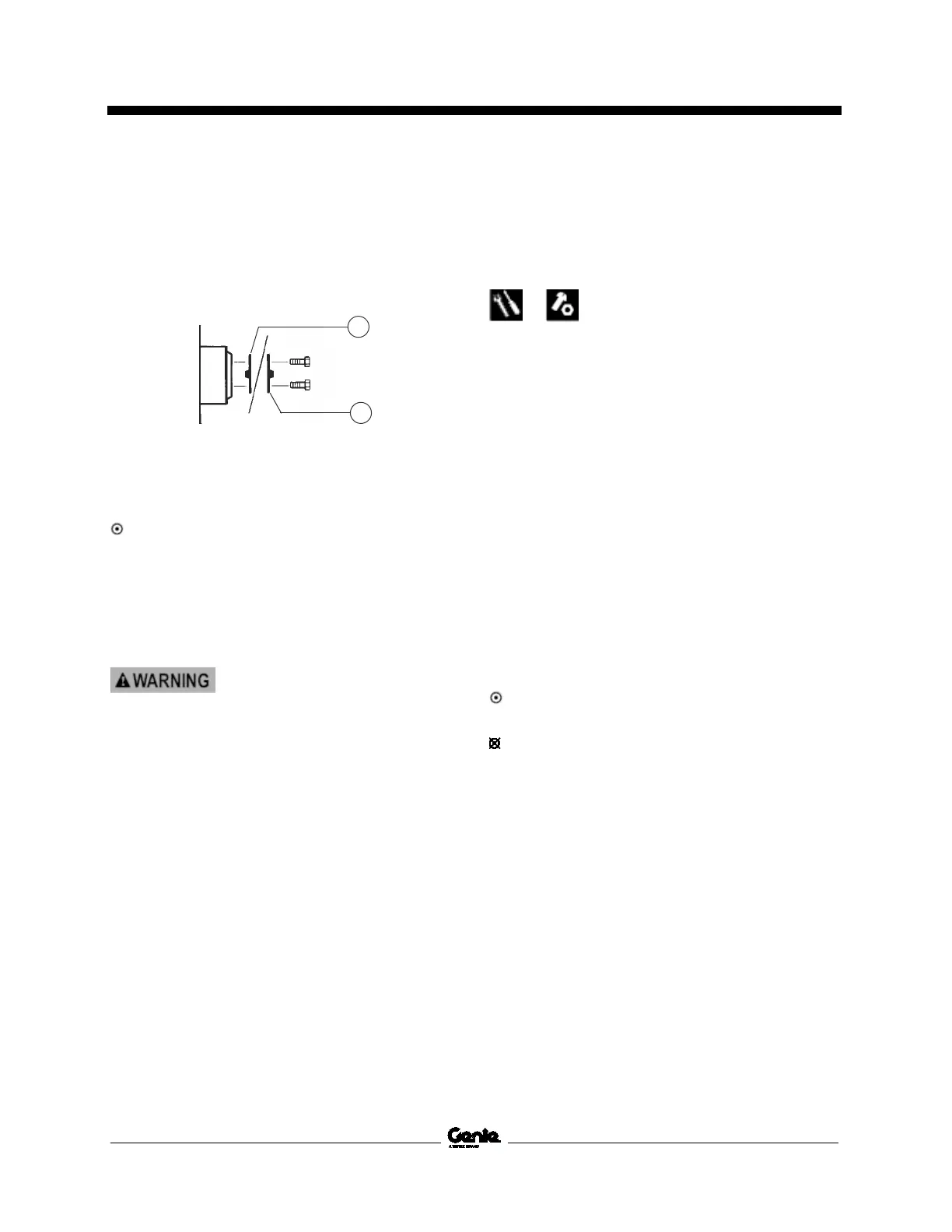

10 Disengage the drive hubs by turning over the
drive hub disconnect caps on each steer
wheel hub.
1 brake disengaged position
2 brake engaged position
11 Manually rotate each steer wheel.
Result: Each steer wheel should rotate with
minimum effort.
12 Re-engage the drive hubs by turning over the
hub disconnect caps. Rotate each wheel to
check for engagement. Raise the machine,
remove the jack stands and lower the
machine.
ard. Failure to re-
engage the drive hubs could
result in death or serious injury
and property damage.
P2-4
Check the Scissor Arm Wear
Pads
(and Slider Blocks, if equipped)
Genie requires that this procedure be performed
every 2000 hours.
Maintaining the condition of the scissor arm wear
pads is essential to safe machine operation.
Continued use of worn out wear pads may result in
component damage and unsafe operating
conditions.
Note: Perform this procedure with the machine on
a firm, level surface that is free of obstructions.
GS-1330m, GS-1530, GS-1532, GS-1930,
GS-1932:
1 Measure the distance between the number
one inner arm cross tube and the chassis
deck at the ground controls side of the non-
steer end of the machine. Refer to illustration
1.
Result: The measurement is 0.90 inch /
22.9 mm or more. Proceed to step 2.
Result: The measurement is less than
0.90 inch / 22.9 mm. Replace both wear pads.
Refer to Repair Procedure in the appropriate
Service and Repair Manual for your machine,
How to Replace the Scissor Arm Wear Pads.
To Next Page
