5. Operator Enclosure Disassembly and Assembly
5-2

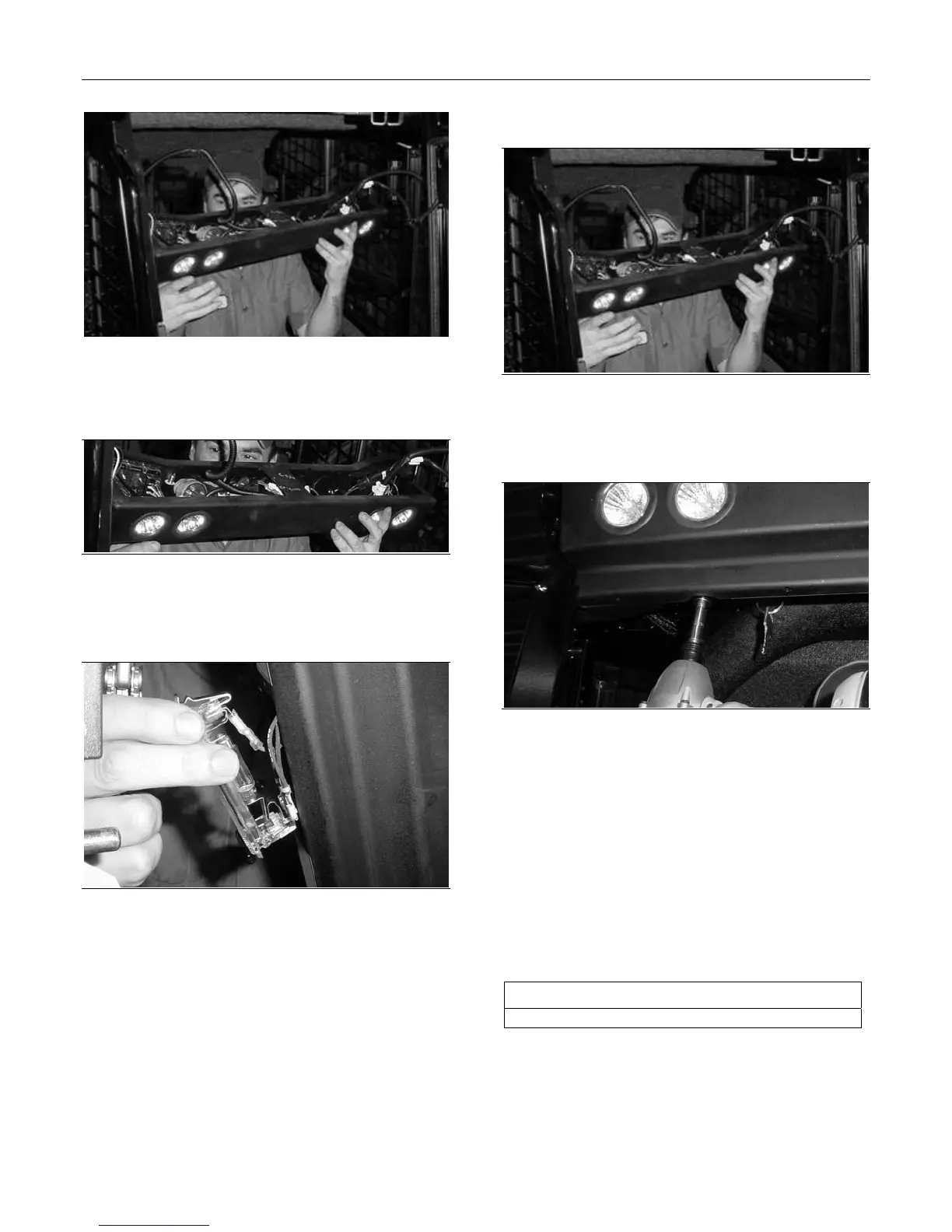

Figure 5-2
2. Carefully lower the light bar with the wire har-
ness attached.
Figure 5-3
3. View of light bar interior components. Interior
components are now accessible for servicing.
Figure 5-4
4. View of dome light. If removal is required, simply
insert a lever (blade-type screw driver) at oppo-
site end of switch in pry-pocket, and gently pry
the light assembly out of the light bar.
Light Bar Installation
Figure 5-5
1. Carefully position the light bar, without pinching
the wiring harness against the cab roof.
Figure 5-6
2. Secure the light bar to the cab roof with the two
capscrews
Ignition Switch Removal and
Installation
The tools required for ignition switch removal and
installation are listed in Table 5-2. Use manufactur-
er-recommended tools whenever possible.
Table 5-2
Required Tools
Combination Wrench
Ignition Switch Removal
1. Lower the light bar. Refer to Chapter 5. Light Bar
Removal procedure.
To Next Page
