7. Radiator/Oil Cooler Disassembly and Assembly
7-6

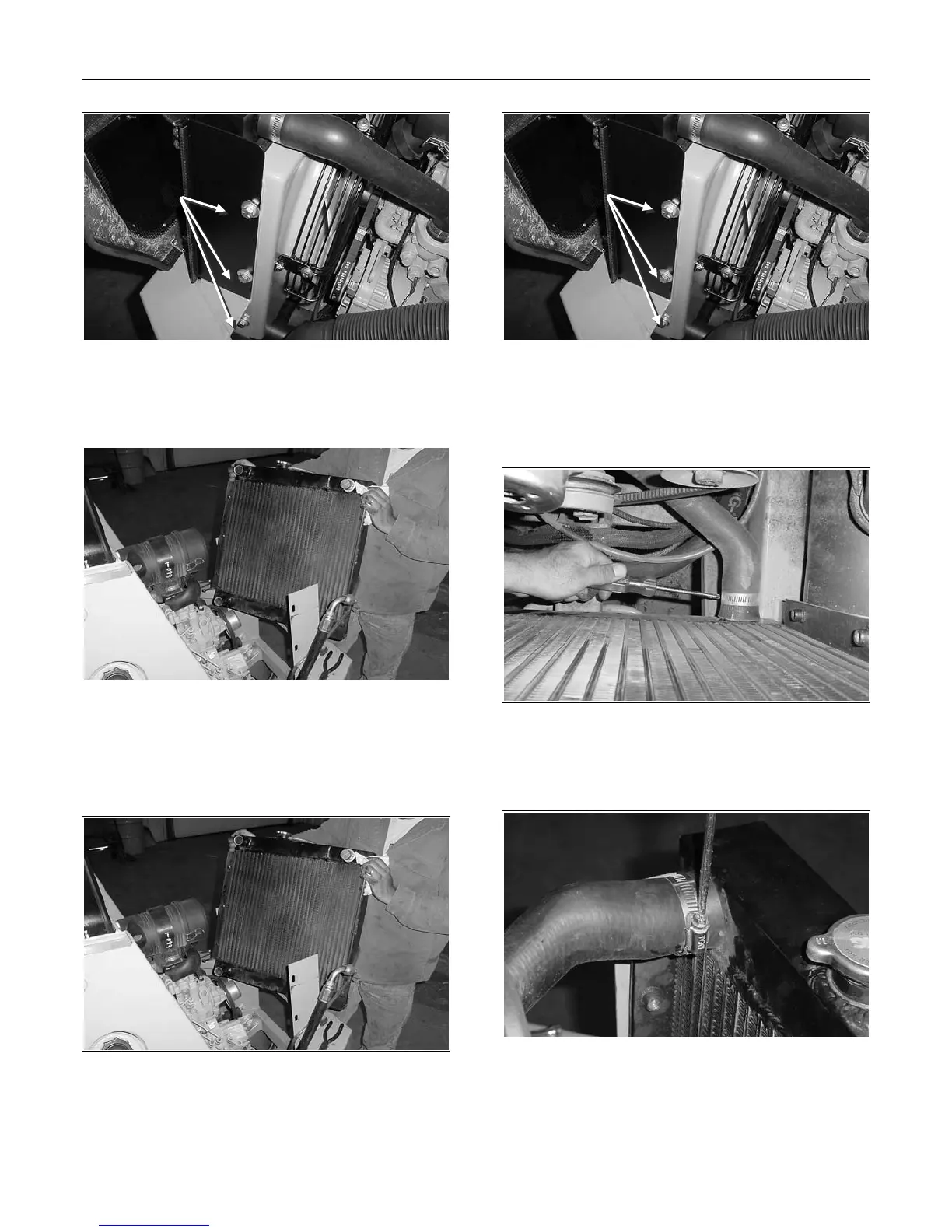

Figure 7-19
9. Remove the three mounting bolts on each side
of the radiator/cooler.
Figure 7-20
10. Remove the radiator/cooler from the engine
compartment.
Radiator/Cooler Installation
Figure 7-21
1. Position the radiator/cooler in the engine com-
partment.
Figure 7-22
2. With the radiator/cooler in position, install the
three mounting bolts on each side of the radia-
tor/cooler.
Figure 7-23
3. Remove the hose and fitting caps and install the
lower hose on the radiator section.
Figure 7-24
4. Remove the hose and fitting caps and install the
upper hose on the radiator section.
Install
Bolts
Remove
Bolts
