Compact Track Loader
7. Radiator/Oil Cooler Disassembly and Assembly
7-5

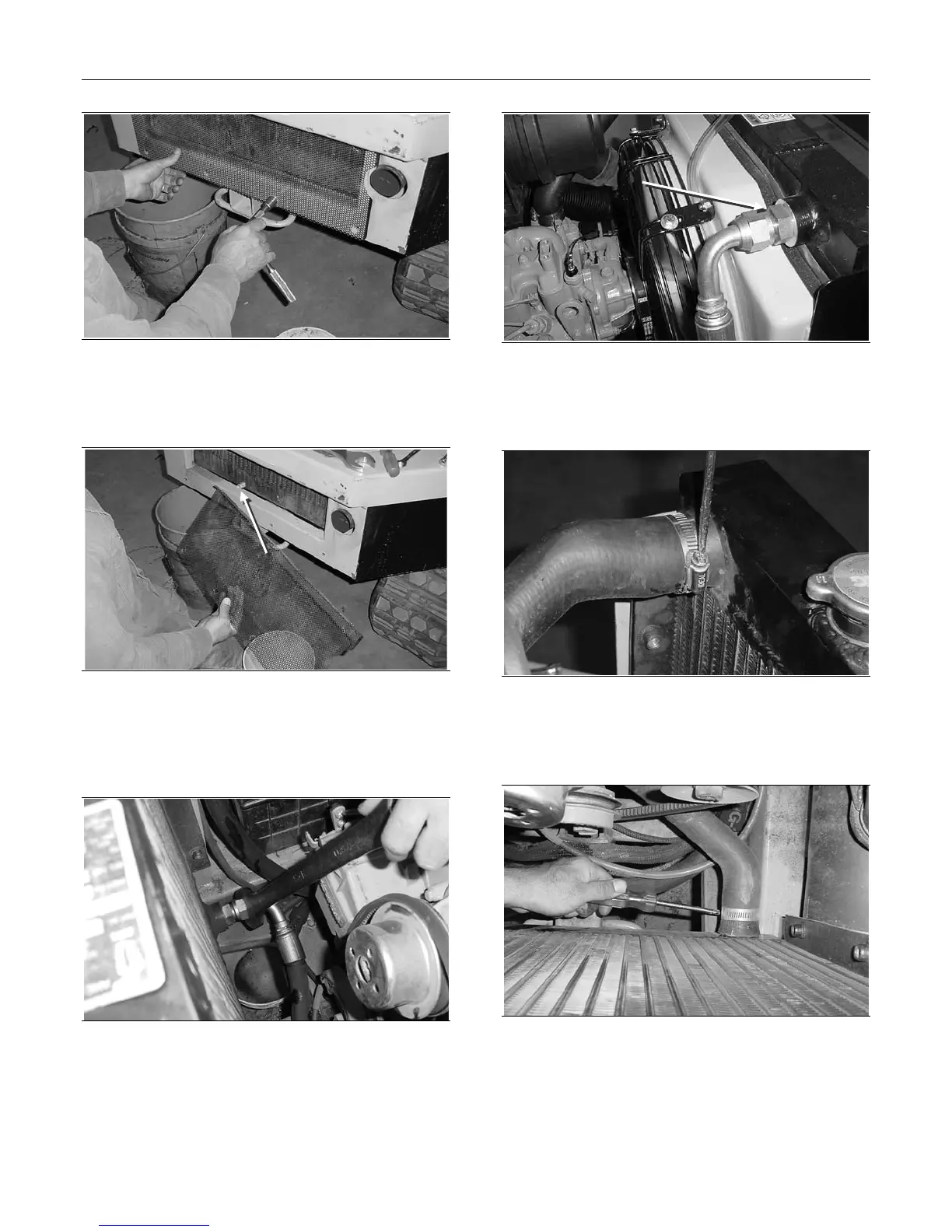

Figure 7-13
3. Remove the bolts from the lower engine com-
partment screen.
Figure 7-14
4. Remove the lower engine compartment screen
and drain the coolant using the petcock on the
bottom of the radiator.
Figure 7-15
5. Remove the lower hose from the oil cooler sec-
tion. Cap the hose and fitting.
Figure 7-16
6. Remove the upper hose from the oil cooler sec-
tion. Cap the hose and fitting.
Figure 7-17
7. Remove the upper hose from the radiator sec-
tion. Cap the hose and fitting.
Figure 7-18
8. Remove the lower hose from the radiator sec-
tion. Cap the hose and fitting.
Remove
Hose
Drain
Coolant
