7. Radiator/Oil Cooler Disassembly and Assembly
7-4

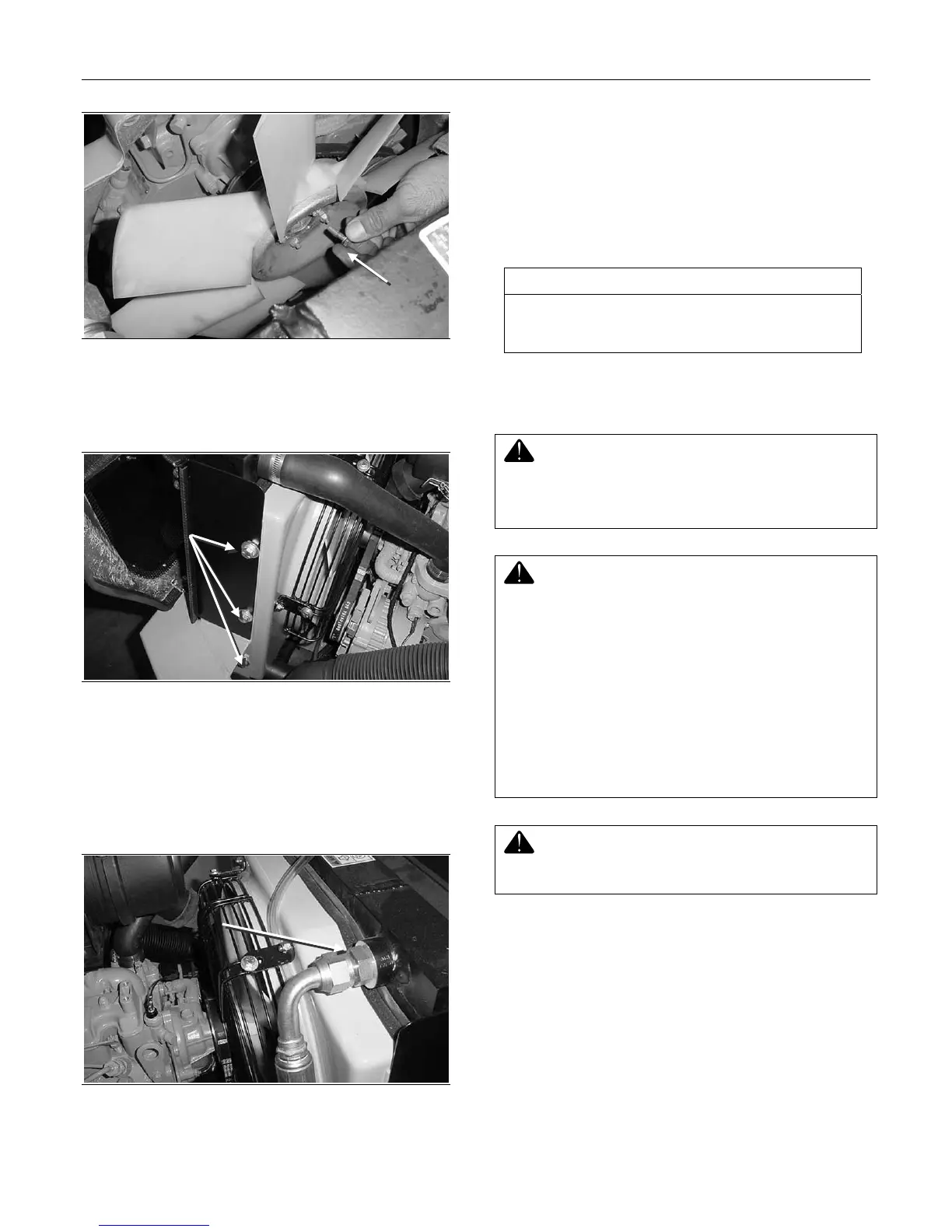

Figure 7-10
3. Holding the fan in position between the radia-
tor/cooler and the fan shroud, install the four
bolts that secure the fan to the fan drive motor.
Figure 7-11
4. Pull the shroud over the fan and install the three
bolts on each side of the fan shroud that secure
the shroud to the radiator/cooler.
5. Install the fan guard. Refer to Chapter 7. Fan
Guard Installation.
Figure 7-12
6. Install the upper hose on the oil cooler section.
Radiator/Cooler Removal and
Installation
The tools required for radiator/cooler removal and
installation are listed in Table 7-3. Use manufactur-
er-recommended tools whenever possible.
Table 7-3
Required Tools
Combination Wrench
Socket Wrench
Screwdriver
Radiator/Cooler Removal
Hot oil can cause personal injury. Make sure the
oil is cool before removing any components or lines.
Remove the oil filler cap only when the engine is
stopped and has been allowed to cool thoroughly.
Personal injury can result from hot coolant,
steam and alkali.
At operating temperature, engine coolant is hot and
under pressure. The radiator and hoses contain hot
coolant and steam. Allow the machine to cool tho-
roughly prior to performing service or repair proce-
dures to avoid burns.
Remove the filler cap slowly to relieve pressure only
when the engine is stopped and the machine has been
allowed to cool thoroughly.
Cooling system conditioner contains alkali. Avoid
contact with skin and eyes.
Collect and contain liquids in a suitable contain-
er. Dispose of all liquids according to local regula-
tions and mandates.
1. Remove fan and shroud. Refer to Chapter 7.
2. Drain the hydraulic fluid. Refer to Chapter 16.
Hydraulic Fluid and Filter Change.
Install
Bolts
Install
Bolts
Install
Hose
To Next Page
