8. Hydraulic Reservoir Disassembly and Assembly
8-3

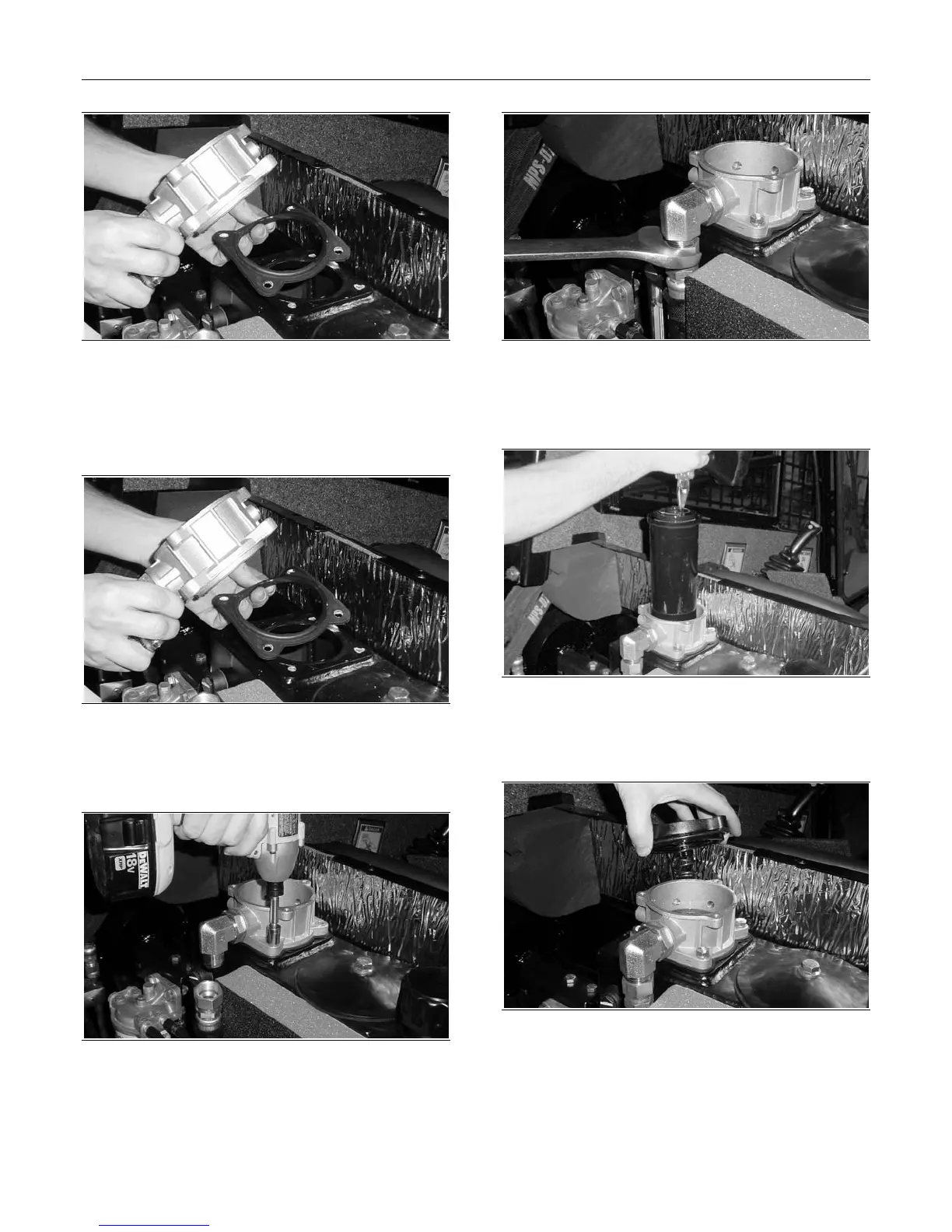

Figure 8-6
6. Remove the filter head and gasket from the re-
servoir.
Filter Assembly Installation
Figure 8-7
1. Place the filter assembly gasket in position on
top of the reservoir. Replace if damaged.
Figure 8-8
2. Position the filter head onto the gasket with the
mounting holes aligned, install bolts.
Figure 8-9
3. Reconnect the hose to the filter head and se-
cure.
Figure 8-10
4. Reinstall the filter and filter tube into the reser-
voir as shown.
Figure 8-11
5. Install the cap onto the filter head as shown.
