Terex PT-30 - Battery Removal and Installation; Battery Removal

Compact Track Loader
11. Engine Components Disassembly and Assembly
11-5

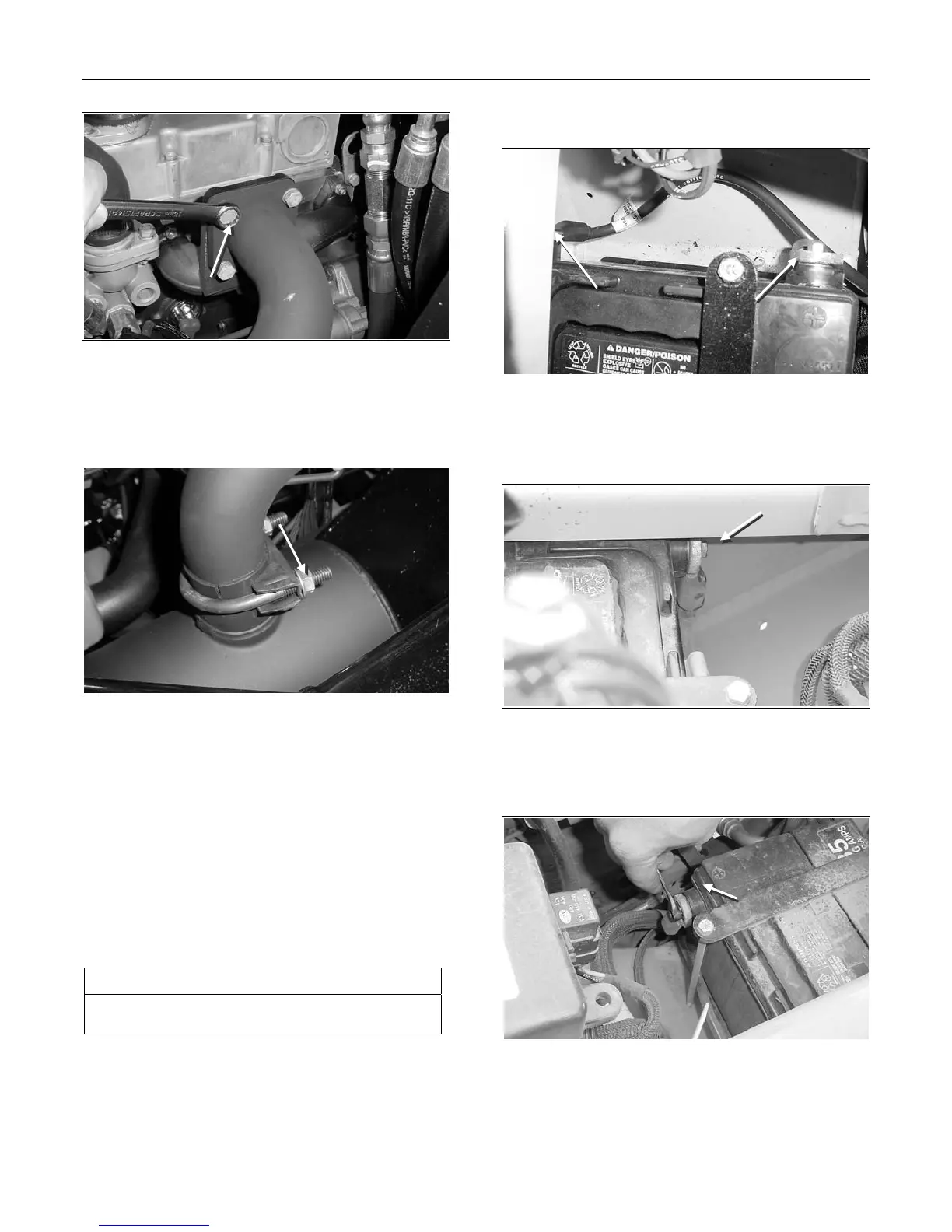

Figure 11-14
7. With the exhaust pipe gasket in place, install the
remaining bolts that secure the exhaust pipe to
the exhaust manifold.
Figure 11-15
8. Reinstall the muffler clamp, then tighten the nuts
to secure.
Battery Removal and Installa-
tion
The tools required for battery removal and installa-
tion are listed in Table 11-3. Use manufacturer-
recommended tools whenever possible.
Table 11-3
Required Tools
Combination Wrench
Socket Wrench
Battery Removal
Figure 11-16
1. Identify the positive and negative battery termin-
als.
Figure 11-17
2. Disconnect the battery cable from the negative
battery terminal.
Figure 11-18
3. Disconnect the battery cable from the positive
battery terminal.
Install
Bolts
Tighten
Nuts
Positive
Terminal
Negative
Terminal
Disconnect
Positive
Cable
Disconnect
Negative
Cable
