8. Hydraulic Reservoir Disassembly and Assembly
8-5

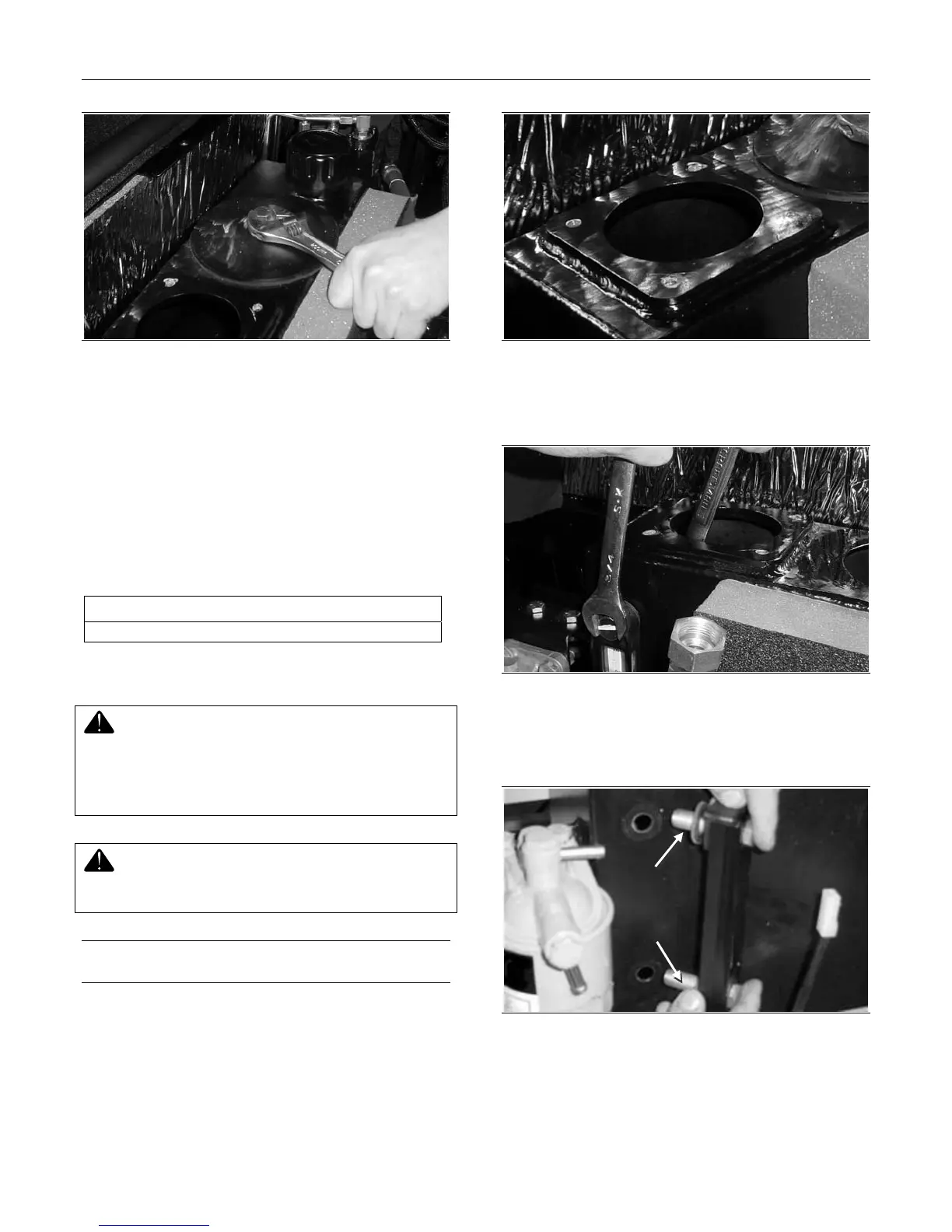

Figure 8-16
2. Tighten the access cover bolt.
Reservoir Gauge Removal and
Installation
The tools required for reservoir gauge removal and
installation are listed in Table 8-3. Use manufactur-
er-recommended tools whenever possible.
Table 8-3
Required Tools
Combination Wrenches
Reservoir Gauge Removal
Hot oil can cause personal injury. Make sure the
oil is cool before removing any components or lines.
Remove the oil filler cap only when the engine is
stopped and the machine has been allowed to cool
thoroughly
Collect and contain liquids in a suitable contain-
er. Dispose of all liquids according to local regula-
tions and mandates.
Note: During disassembly, cap all hoses and fittings to
prevent fluid loss and contamination of the system fluids.
1. Drain the hydraulic fluid. Refer to Chapter 16.
Hydraulic Fluid and Filter Change.
2. Remove the filter assembly. Refer to Chapter 8.
Filter Assembly Removal.
Figure 8-17
3. View of hydraulic reservoir with filter assembly
removed.
Figure 8-18
4. Reach inside the reservoir and remove the two
nuts that fasten the reservoir gauge to the reser-
voir.
Figure 8-19
5.
Pull the reservoir gauge and the two mounting
bolts/washers off the reservoir. DO NOT mis-
place the Compact washers or the reservoir will
leak.
Remove Re-
servoir Gauge
with Mounting
Bolts/Washers
To Next Page
