Terex PT-30 - Lower Friction Points

Compact Track Loader
13. Loader Disassembly and Assembly
13-8

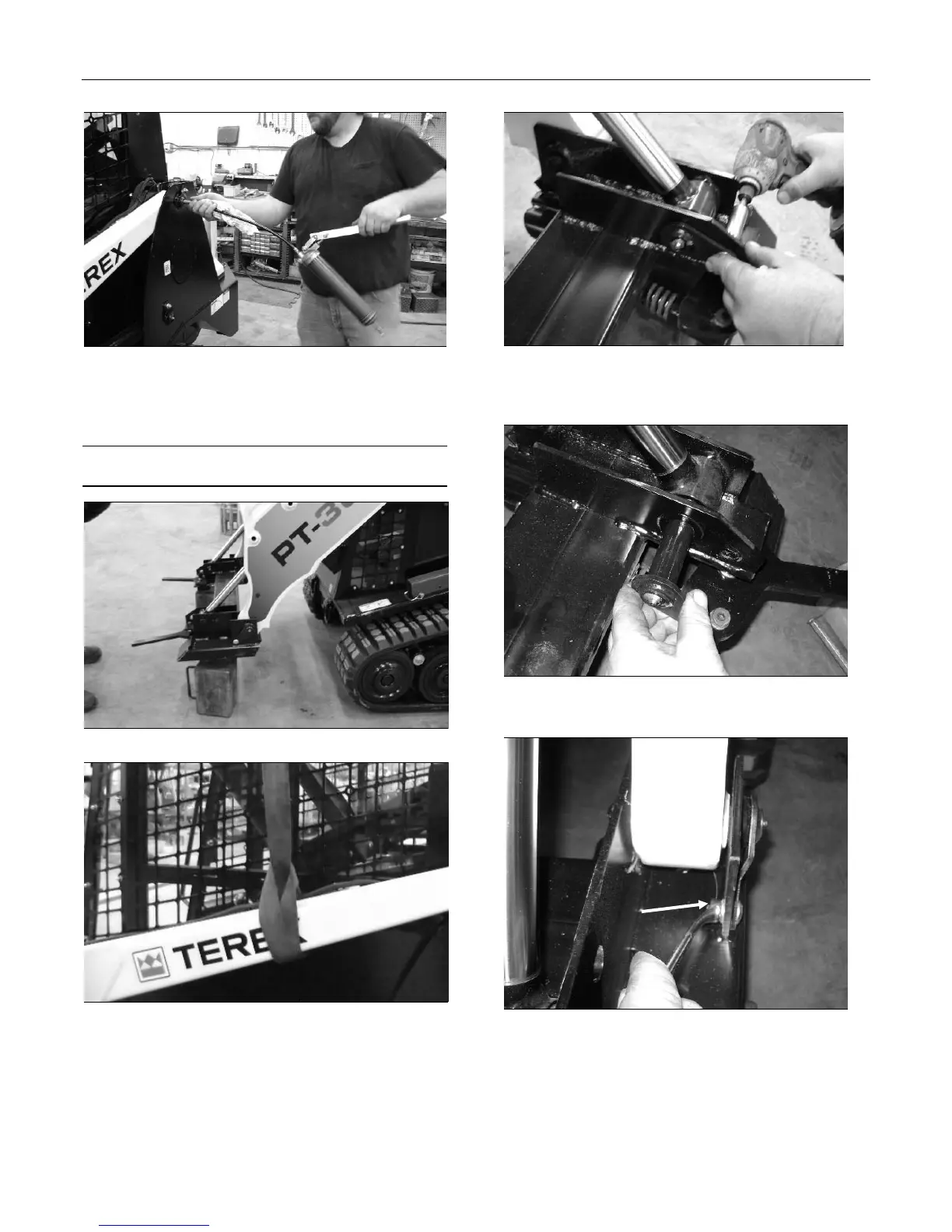

Figure 13-29
16. Add grease to the zerks located on each of the
lift pins to lubricate them.
Lower Friction Points:
Note: Each worn bushing will be removed one at a
time.
Figure 13-30
Figure 13-31
1. Lower lift arms onto a mechanical support,
with quick attach resting about 1 ft. off the
ground. Then attach a lifting device to secure
the lift arm in position.
Figure 13-32
2. Remove bolt from pins that secure the tilt
cylinder to the quick attach.
Figure 13-33
3. Remove pin from the cylinder and quick attach.
Figure 13-34
4. Remove bolt from pins that secure the quick
attach to the lift arm.
Bolt
