Terex PT-30 - Quick Attach Assembly Installation

Compact Track Loader
14. Quick Attach Disassembly and Assembly
14-3

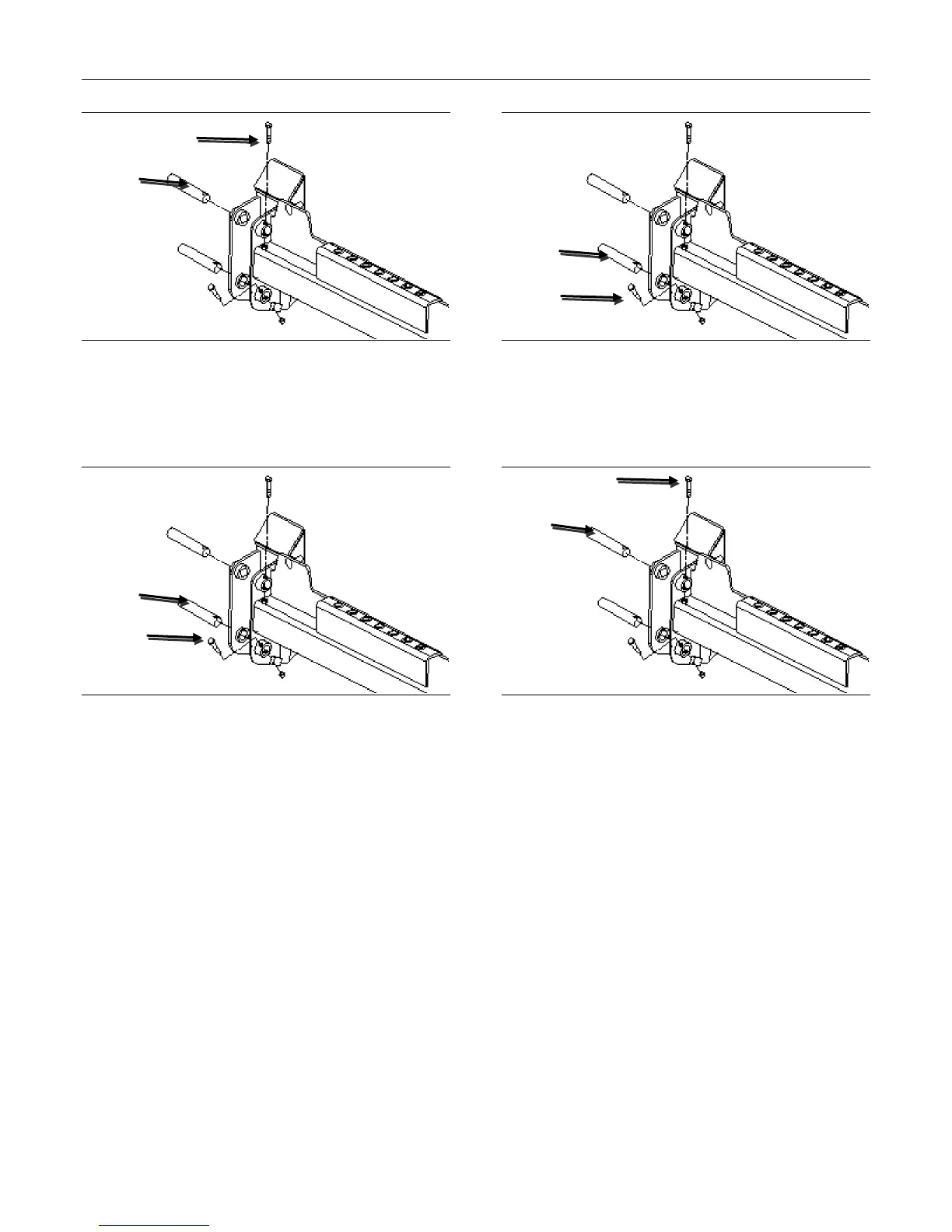

Figure 14-5
3. Remove the bolt and push out the pin that
secures each end of the quick attach assembly
to the tilt cylinders.
Figure 14-6
4. Remove the bolt and push out the pin that
secures each end of the quick attach assembly
to the loader frame.
5. The quick attach assembly is now free and
ready to be moved by a forklift.
Quick Attach Assembly Installation
1. With a forklift, move the quick attach assembly
in position to be secured to the loader frame and
tilt cylinders.
Figure 14-7
2. Insert the pin and install the bolt that secures
each end of the quick attach assembly to the
loader frame.
Figure 14-8
3. Insert the pin and install the bolt that secures
each end of the quick attach assembly to the tilt
cylinders.
Remove
Pin
Remove
Remove
Pin
Remove
Insert
Pin
Install
Insert
Pin
Install
