Terex PT-30 - Fuel Tank Installation

Compact Track Loader
6. Chassis Disassembly and Assembly
6-6
Remove
Filler Hose

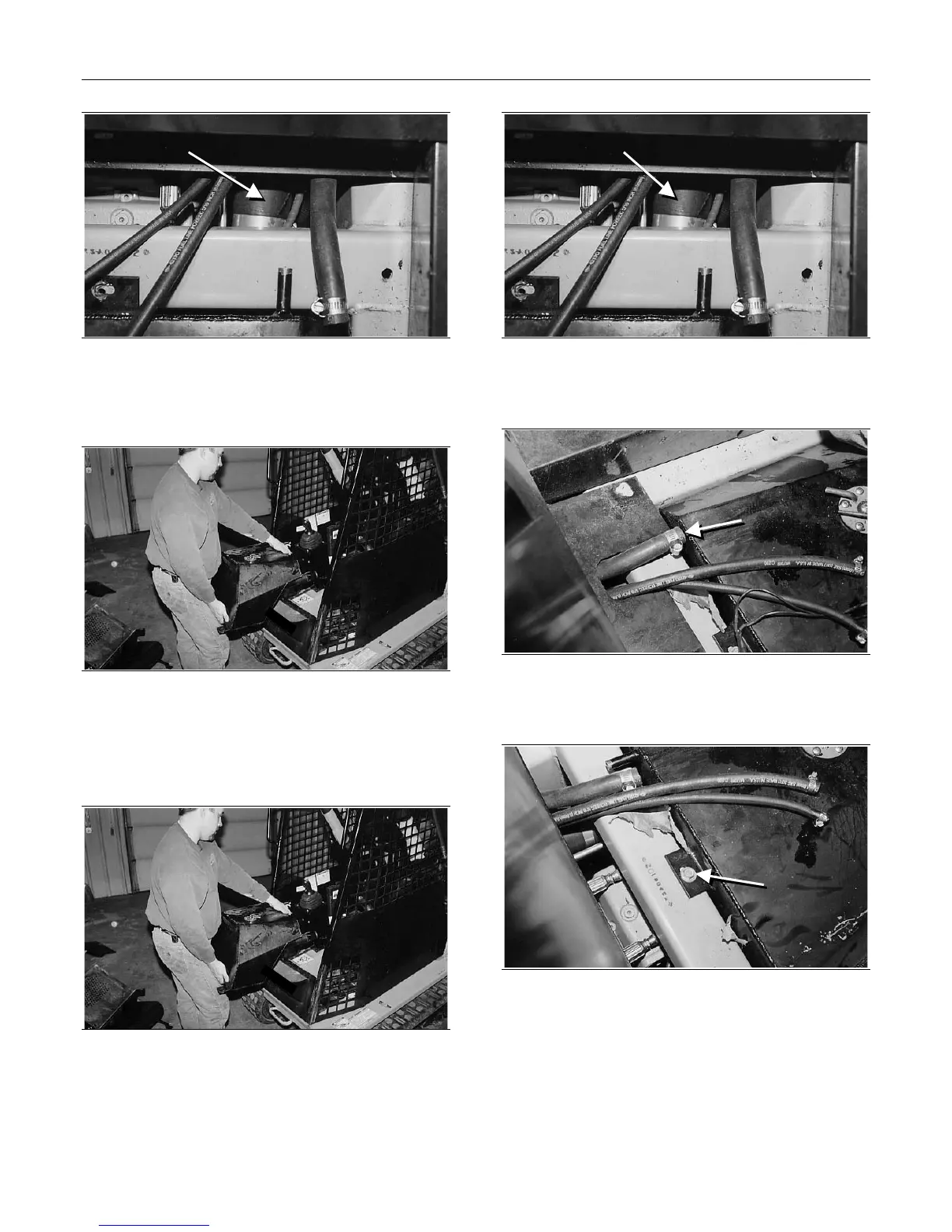

Figure 6-20
10. Remove the Compact filler hose from the back
end or the tank.
Figure 6-21
11. Remove the tank carefully from the machine.
Fuel Tank Installation
Figure 6-22
1. Place the fuel tank in the machine in approx-
imately its normal position.
Attach
Filler Hose
Figure 6-23
2. Attach the filler hose to the rear of the tank.
Connect
Vent Hose
Figure 6-24
3. Connect the vent hose to the fuel tank.
Insert
Bolt and
Washer
Figure 6-25
4. Insert the bolt and washer that connect the fuel
tank to the frame.
