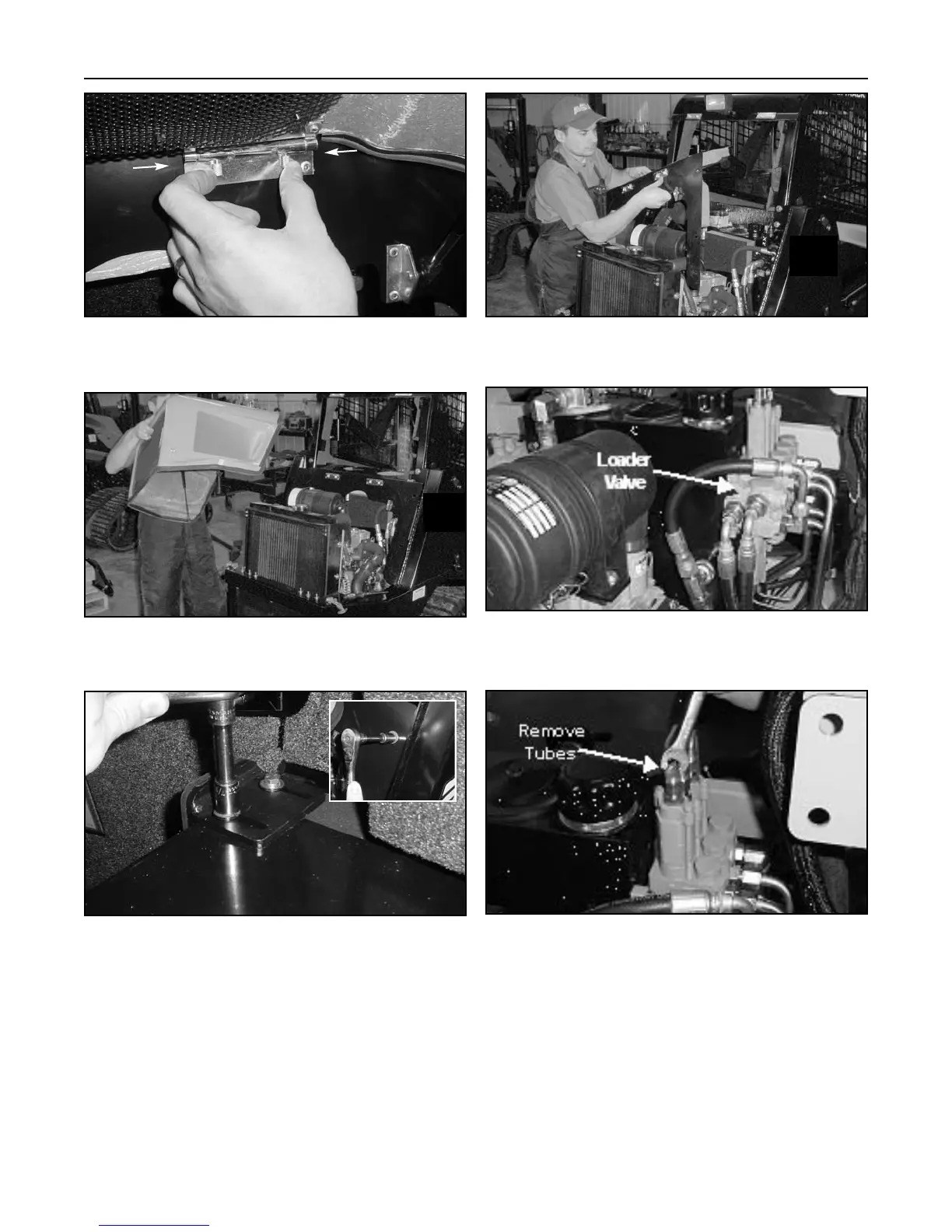

Figure 9-11
5. Disconnect the gas springs, then press the spring
latches inward as shown to remove the hood.
Figure 9-12
6. Carefully remove the hood from the machine and
set it aside.
Figure 9-13
7. Remove the bolts securing the rear valance panel
to the chassis to allow for removal.
Figure 9-14
8. Carefully remove the rear valance from the
machine to allow access to the loader valve.
Figure 9-15
9. Locate the loader valve on the side of the
hydraulic reservoir.
Figure 9-16
10. Disconnect the tubes from the top and bottom of
the loader valve. Cap and plug all openings to pre-
vent fluid loss.
9-5
Compact Track Loader
9. Loader/Transmission Controls
To Next Page
