Compact Track Loader
12. Undercarriage Disassembly and Assembly
12-2

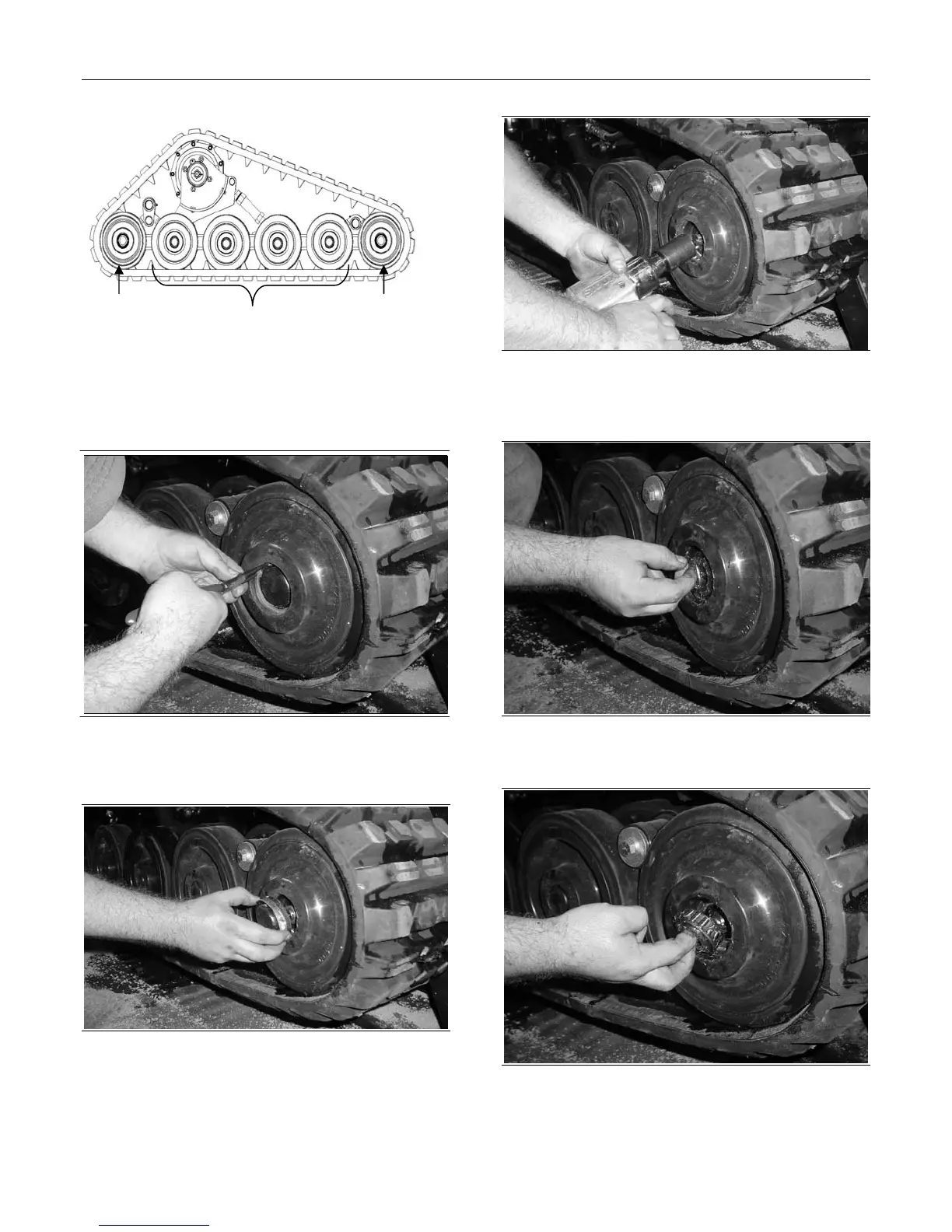

Figure 12-1
1. Loosen up the track tensioner as described in
the track removal procedure on page 12-3, steps
1-4.
Figure 12-2
2. Remove the snap ring securing the wheel cap
with snap ring pliers.
Figure 12-3
3. Remove the wheel cap using a large channel
lock pliers.
Figure 12-4
4.
Remove the nut that fastens the wheel to the
shaft with the correct size socket.
Figure 12-5
5. Remove the washer.
Figure 12-6
6. Remove the bearing.
Front
Idler
Wheels
Rear
Idler
Wheels
Bogie
Wheels
To Next Page
