Compact Track Loader
13. Loader Disassembly and Assembly
13-2
Collect and contain liquids in a suitable
container. Dispose of all liquids according to local
regulations and mandates.
Note: During disassembly, cap all hoses and fittings to
prevent fluid loss and contamination of the system fluids.
1. To remove lift cylinders raise the lift arms and
support them with the lift arm brace as described
in Ch 16 of this manual.
Note: When removing tilt cylinder(s), lower the loader
arms onto a mechanical support with the arms resting
about 6 inches off the ground.
2. Turn the ignition switch to the OFF position and
remove the key to avoid accidental start.

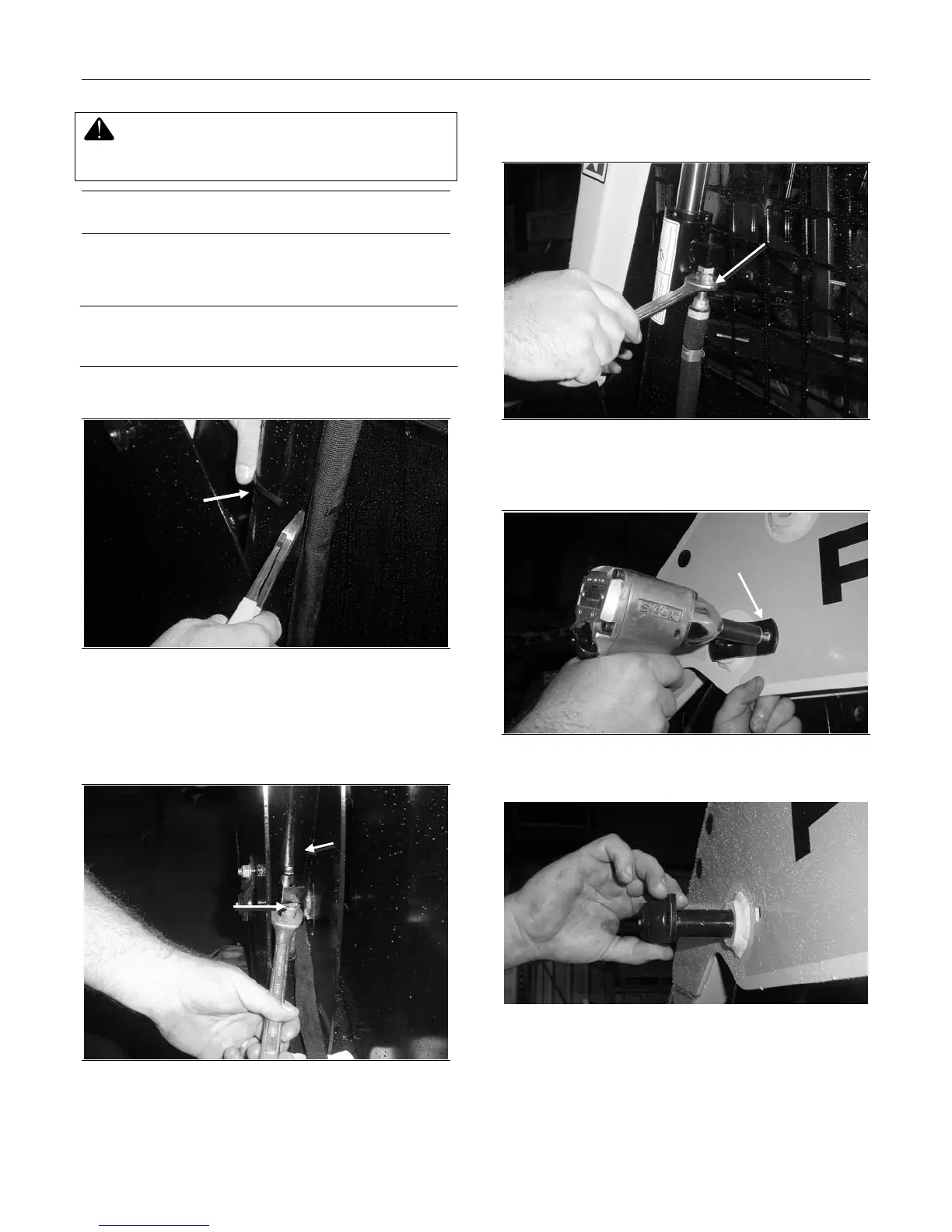

Figure 13-1
3. Remove the zip tie that secures the hydraulic
hose to the lift cylinder.
4. Release hydraulic pressure by performing step 3
on page 13-6 of this chapter.
Figure 13-2
5. Disconnect and cap the hose on the rear end of
the cylinder.
Figure 13-3
6. Disconnect and cap the hose on the forward end
of the cylinder.
Figure 13-4
7. Remove the forward pin assembly bolt.
Figure 13-5
8. Support the cylinder from the underside then
remove the forward pin assembly.
Disconnect
Hose
Disconnect
Hose
Remove
Bolt
Lift
Cylinder
Zip tie
To Next Page
