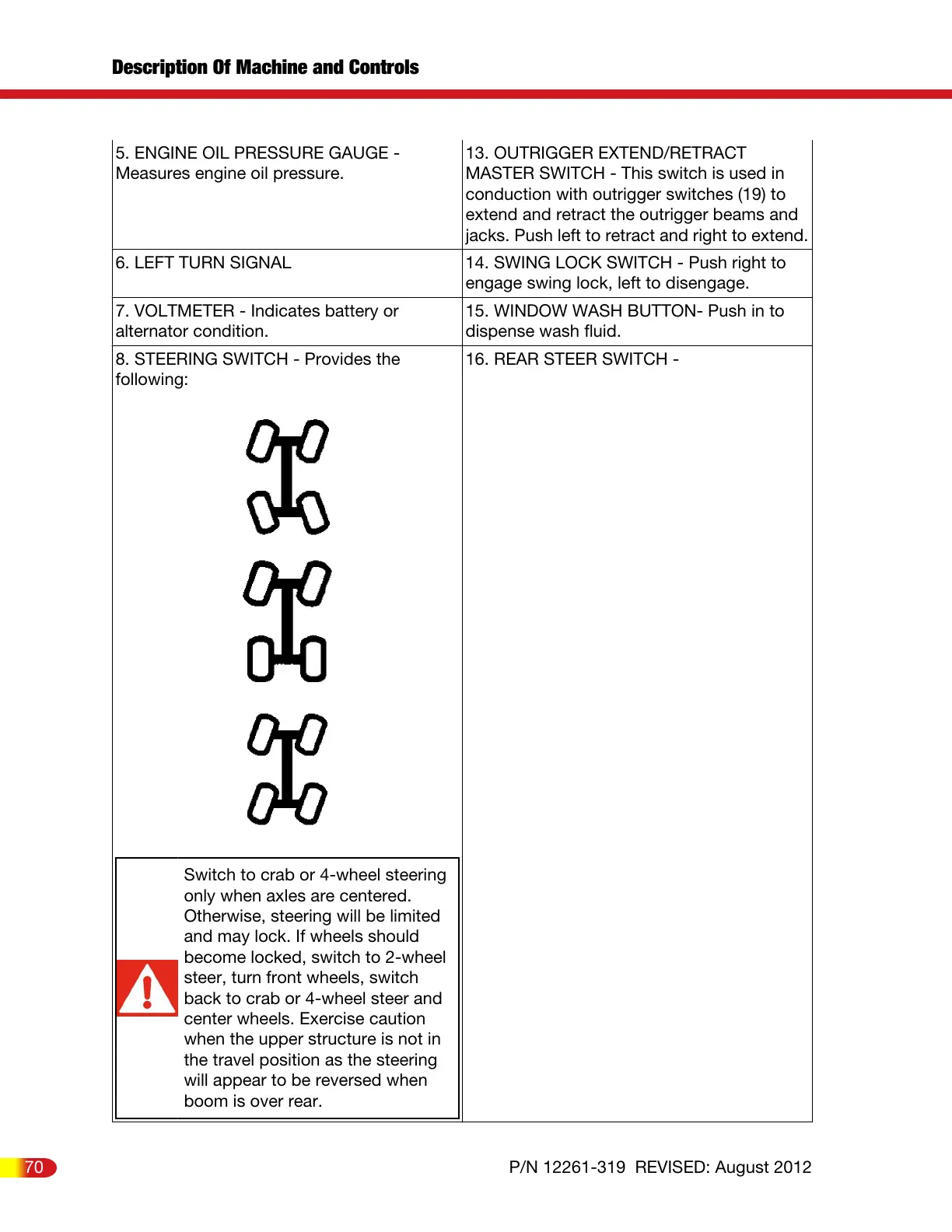

5. ENGINE OIL PRESSURE GAUGE -
Measures engine oil pressure.
13. OUTRIGGER EXTEND/RETRACT
MASTER SWITCH - This switch is used in
conduction with outrigger switches (19) to
extend and retract the outrigger beams and
jacks. Push left to retract and right to extend.
6. LEFT TURN SIGNAL 14. SWING LOCK SWITCH - Push right to
engage swing lock, left to disengage.
7. VOLTMETER - Indicates battery or
alternator condition.
15. WINDOW WASH BUTTON- Push in to
dispense wash fluid.
8. STEERING SWITCH - Provides the
following:
Switch to crab or 4-wheel steering
only when axles are centered.
Otherwise, steering will be limited
and may lock. If wheels should
become locked, switch to 2-wheel
steer, turn front wheels, switch
back to crab or 4-wheel steer and
center wheels. Exercise caution
when the upper structure is not in
the travel position as the steering
will appear to be reversed when
boom is over rear.
16. REAR STEER SWITCH -
Description Of Machine and Controls
70 P/N 12261-319 REVISED: August 2012
