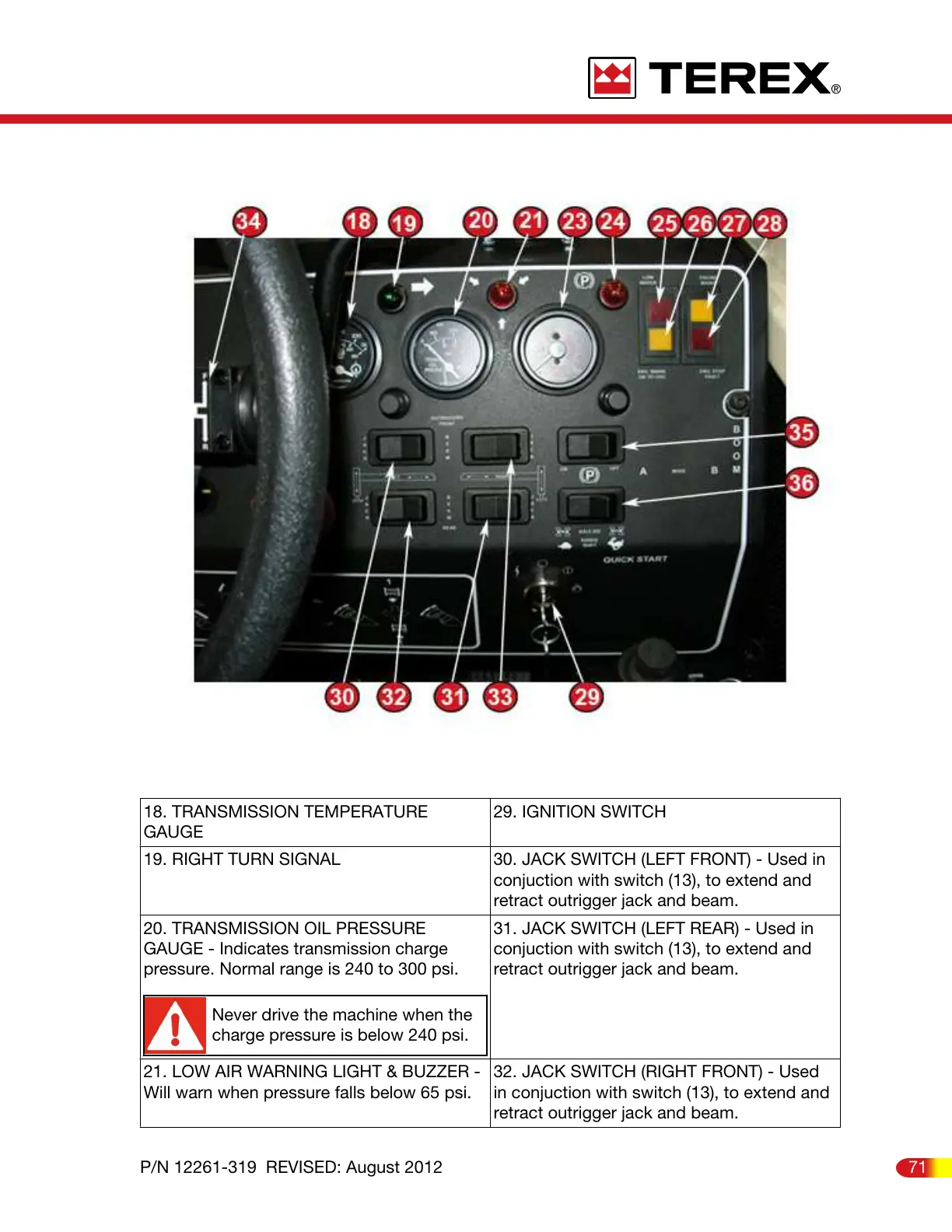

18. TRANSMISSION TEMPERATURE
GAUGE
29. IGNITION SWITCH
19. RIGHT TURN SIGNAL 30. JACK SWITCH (LEFT FRONT) - Used in
conjuction with switch (13), to extend and
retract outrigger jack and beam.
20. TRANSMISSION OIL PRESSURE
GAUGE - Indicates transmission charge
pressure. Normal range is 240 to 300 psi.
Never drive the machine when the
charge pressure is below 240 psi.
31. JACK SWITCH (LEFT REAR) - Used in
conjuction with switch (13), to extend and
retract outrigger jack and beam.
21. LOW AIR WARNING LIGHT & BUZZER -
Will warn when pressure falls below 65 psi.
32. JACK SWITCH (RIGHT FRONT) - Used
in conjuction with switch (13), to extend and
retract outrigger jack and beam.
71P/N 12261-319 REVISED: August 2012
