23. AIR PRESSURE GAUGE - 105 - 125 psi
optimum operating pressure.
33. JACK SWITCH (RIGHT REAR) - Used in
conjuction with switch (13), to extend and
retract outrigger jack and beam.
24. PARK BRAKE INDICATOR 34. GEAR SELECTOR
25. LOW WATER INDICATOR 35. PARKING BRAKE SWITCH
26. ENGINE STOP INDICATOR 36. AXLE DISENGAGE / RANGE SHIFT
27. ENGINE MAINTENANCE INDICATOR
28. ENGINE STOP / FAULT INDICATOR
7. VOLTMETER-Indicates battery or
alternator condition.
44. ENGINE STOP BUTTON-Depress button
to stop engine.
15.TURN SIGNAL/WIPER LEVER- 45. FIRE EXTINQUISHER-Remove from
quick release bracket, pull safety pin, point
toward base of object on fire, depress black
handle.

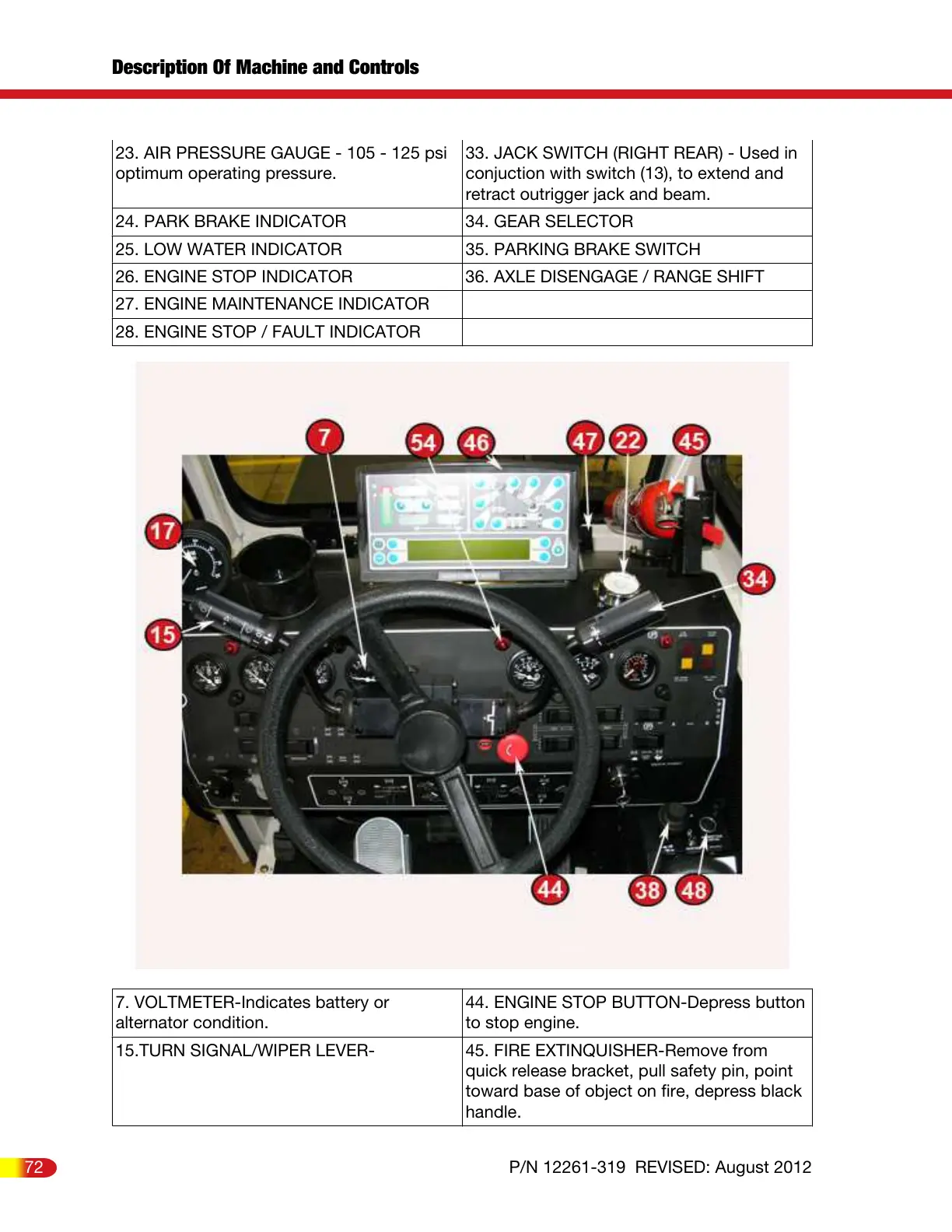

Description Of Machine and Controls
72 P/N 12261-319 REVISED: August 2012
