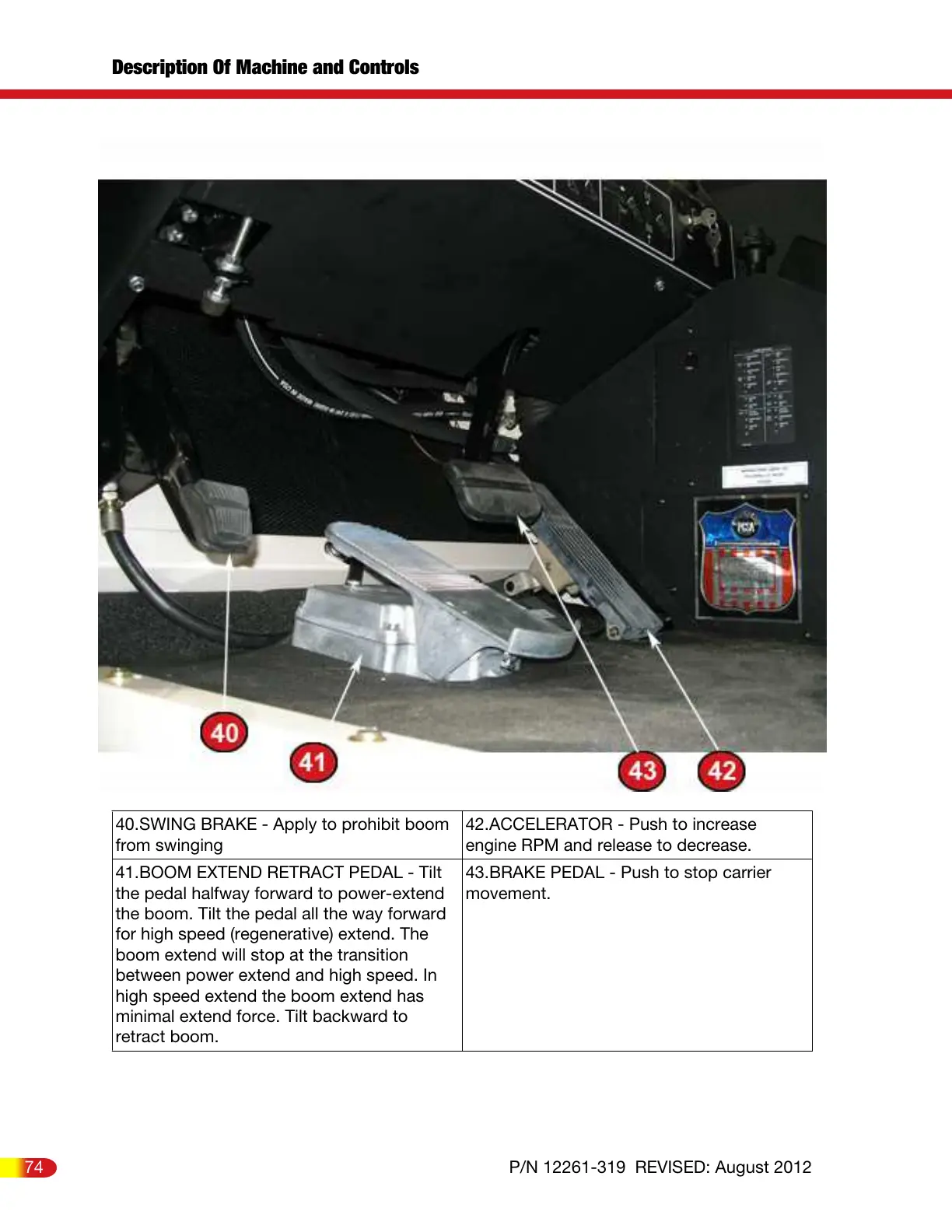

40.SWING BRAKE - Apply to prohibit boom
from swinging
42.ACCELERATOR - Push to increase
engine RPM and release to decrease.
41.BOOM EXTEND RETRACT PEDAL - Tilt
the pedal halfway forward to power-extend
the boom. Tilt the pedal all the way forward
for high speed (regenerative) extend. The
boom extend will stop at the transition
between power extend and high speed. In
high speed extend the boom extend has
minimal extend force. Tilt backward to
retract boom.
43.BRAKE PEDAL - Push to stop carrier
movement.
