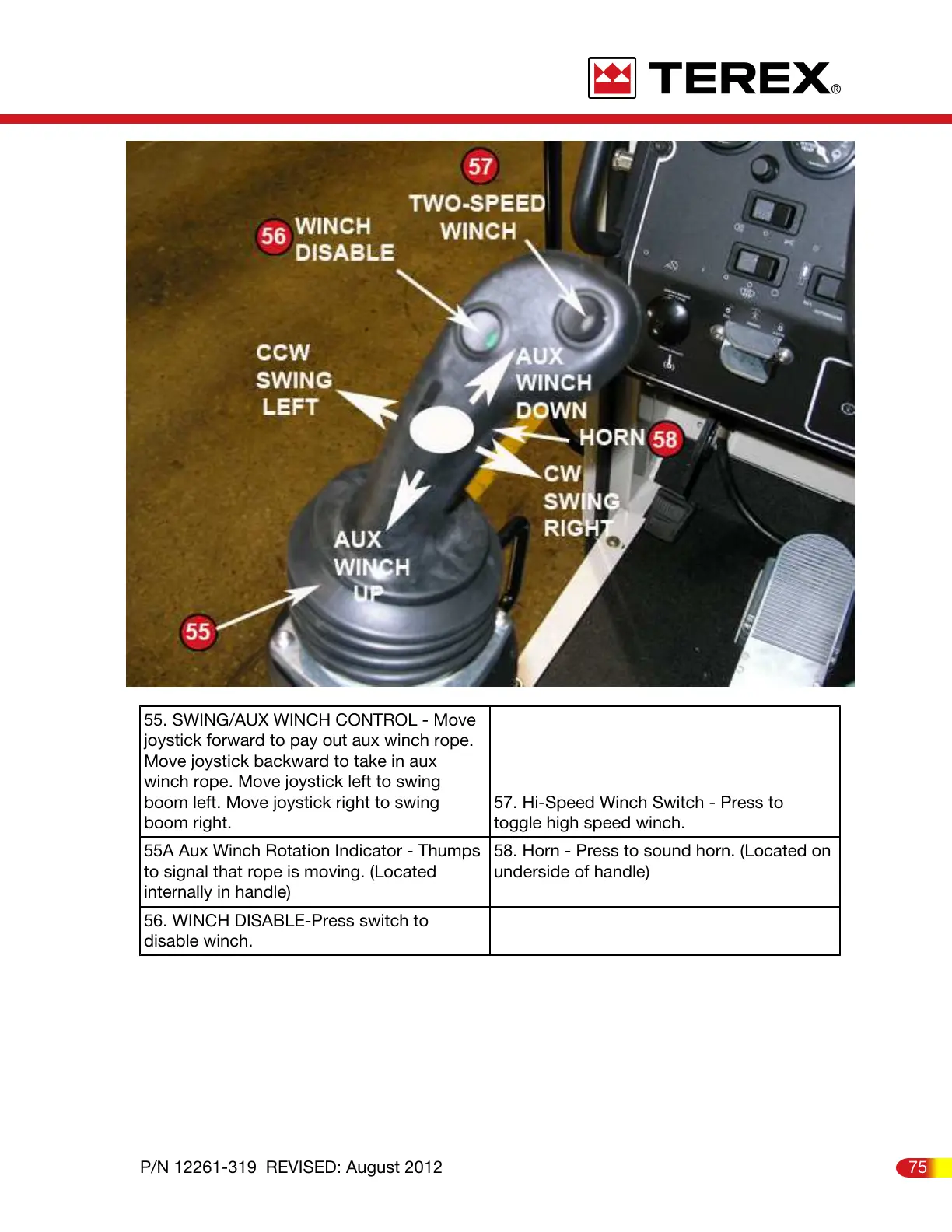

55. SWING/AUX WINCH CONTROL - Move
joystick forward to pay out aux winch rope.
Move joystick backward to take in aux
winch rope. Move joystick left to swing
boom left. Move joystick right to swing
boom right.
57. Hi-Speed Winch Switch - Press to
toggle high speed winch.
55A Aux Winch Rotation Indicator - Thumps
to signal that rope is moving. (Located
internally in handle)
58. Horn - Press to sound horn. (Located on
underside of handle)
56. WINCH DISABLE-Press switch to
disable winch.
75P/N 12261-319 REVISED: August 2012
