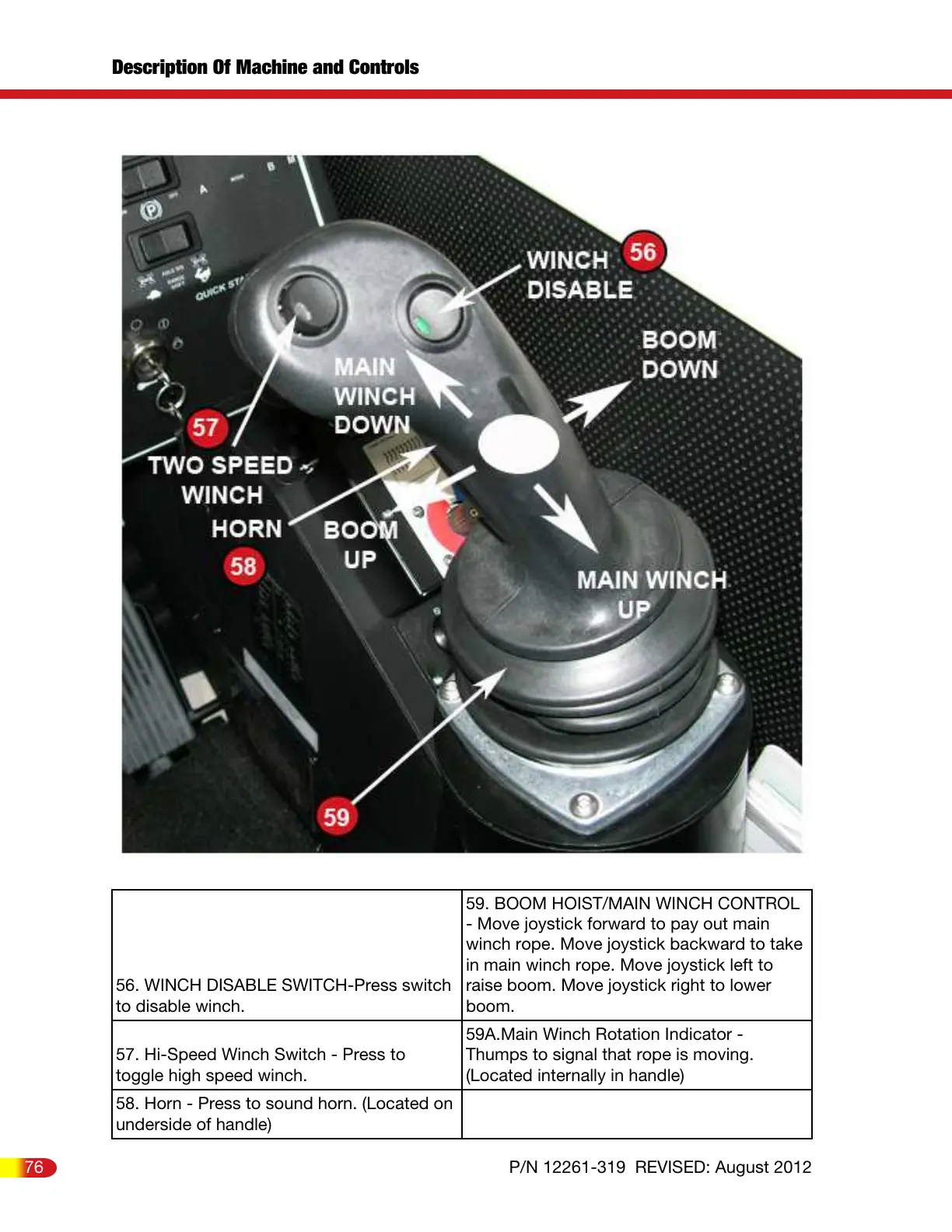

56. WINCH DISABLE SWITCH-Press switch
to disable winch.
59. BOOM HOIST/MAIN WINCH CONTROL
- Move joystick forward to pay out main
winch rope. Move joystick backward to take
in main winch rope. Move joystick left to
raise boom. Move joystick right to lower
boom.
57. Hi-Speed Winch Switch - Press to
toggle high speed winch.
59A.Main Winch Rotation Indicator -
Thumps to signal that rope is moving.
(Located internally in handle)
58. Horn - Press to sound horn. (Located on
underside of handle)
Description Of Machine and Controls
