When a reading is stored, by either method, a confirmation will be displayed. It will
show the record number, date and time along with any GPS positions available (if the
optional Bluetooth GPS is enabled).

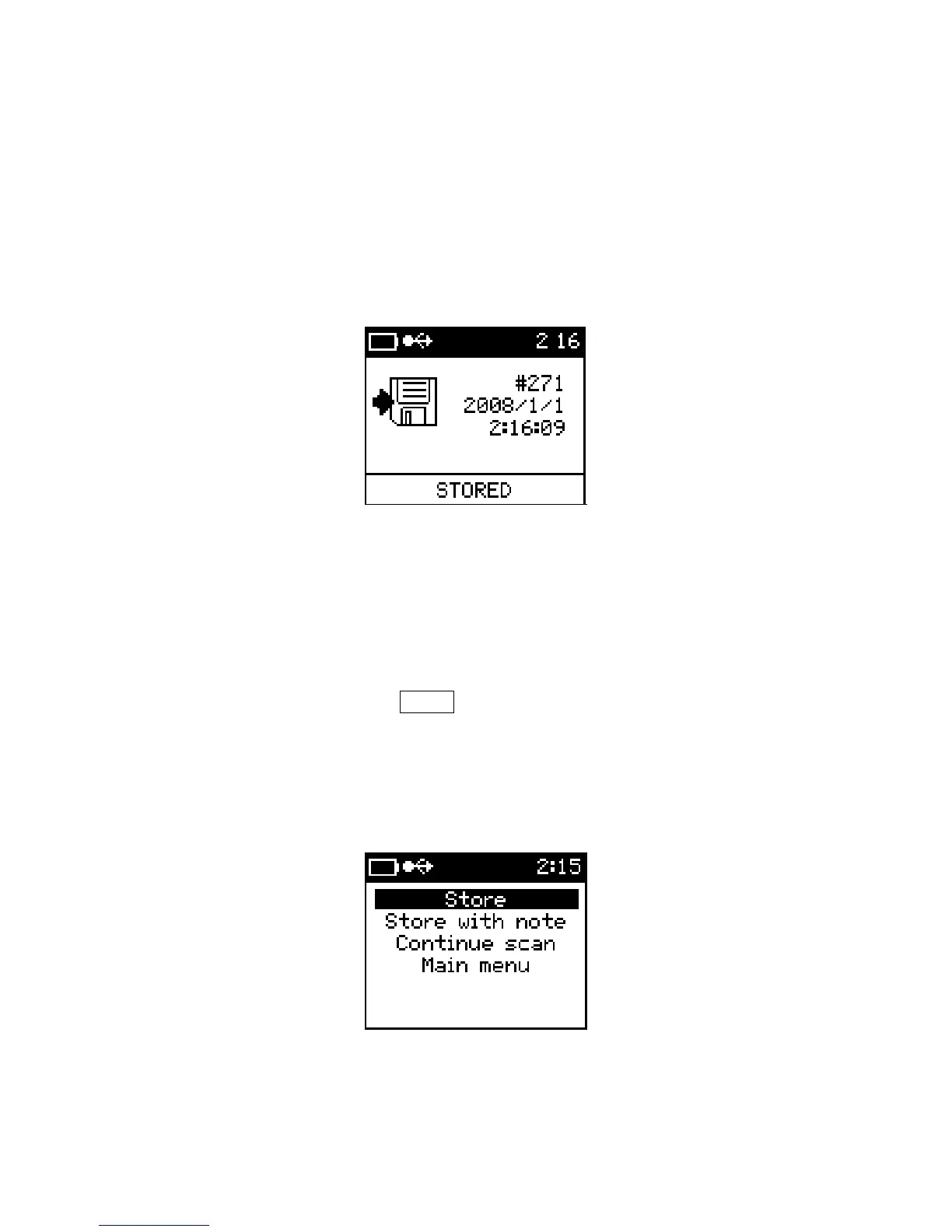

Figure 31: Saved Record
3.5.3 Measurement Sub Menu
The measurement menu can be accessed only when the results are displayed on the
screen; this is accomplished by a SBP▼ as shown in Figure 32. This menu allows for
the storing of the reading, storing of the reading with a voice note, returning to the
measure routine, disabling the GPS (if GPS connected), clearing the average or returning
to the main menu.
Figure 32: Scanner Measure Menu
35
