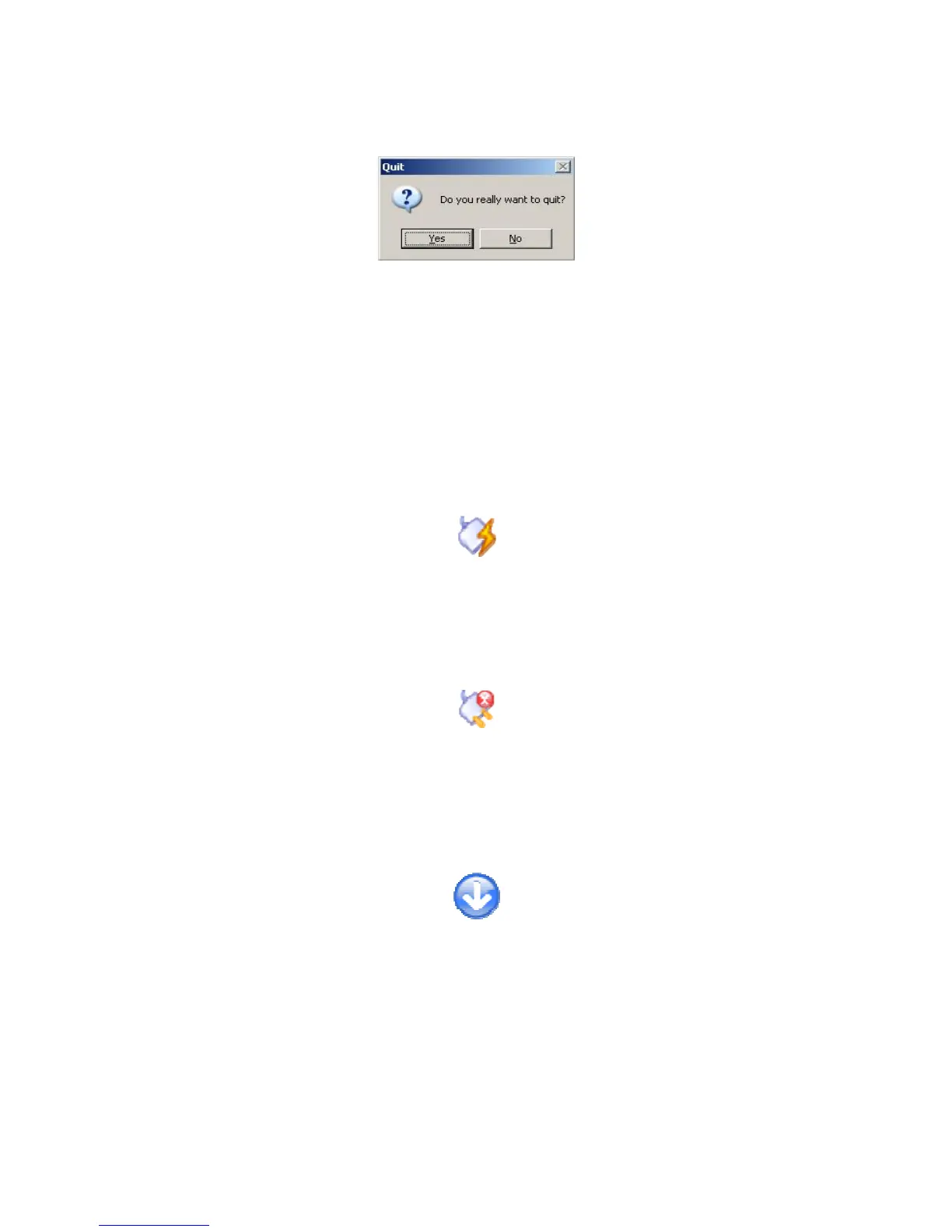

Figure 60: Exit Dialog
Under the Device menu you will find: Connect device, Disconnect device, Download
data, and Device settings. Each of the functions is listed below.
Connect device: - Connect your Personal Computer to a KT-10 v2 with a USB cable or
via Bluetooth connection. There is also an icon for quick access to this function and it can
be seen below
Connect to Device Icon
Disconnect device: - Disconnect your Personal Computer from a KT-10 v2’s USB or
Bluetooth connection, icon seen below.
Disconnect from Device Icon
Download data: - Begin the process to download data from a connected KT-10 v2, icon
seen below. Further details on this can be found in section 4.1.4 Data download on Page
67.
Download data Icon
Device settings: - Open the device settings window to make changes to KT-10 v2
operations, icon seen below. More details on device settings can be found in Section
4.1.7 on Page 76.
63
