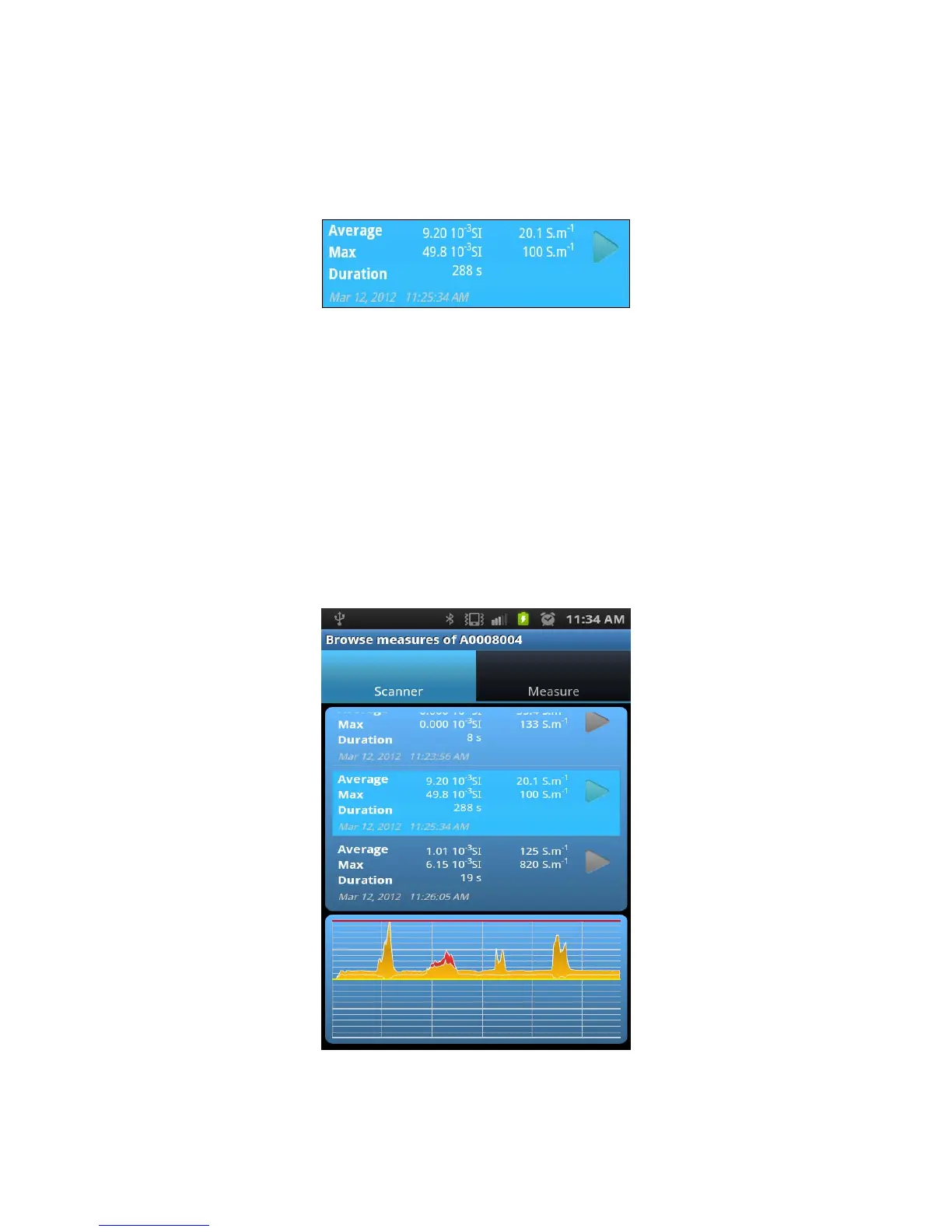

As seen in Figure 121, the scanner record is consist of Average and Max value of
Susceptibility & Conductivity, Duration in # samples recorded, and the time when the
measurement was saved on the meter.
Figure 121: Scanner record explained
Note: In the scanner mode 20 samples per seconds are collected. Of the 20
samples, 5 are averaged together, total of 4 samples are stored per
second. The maximum number of samples for full scanner duration is
120 seconds x 4 = 480.
To preview a scanner graph, tap on the record of your choice. The scanner
graph will be previewed as seen in the Figure 122 below.
Figure 122: Scanner data preview
98
