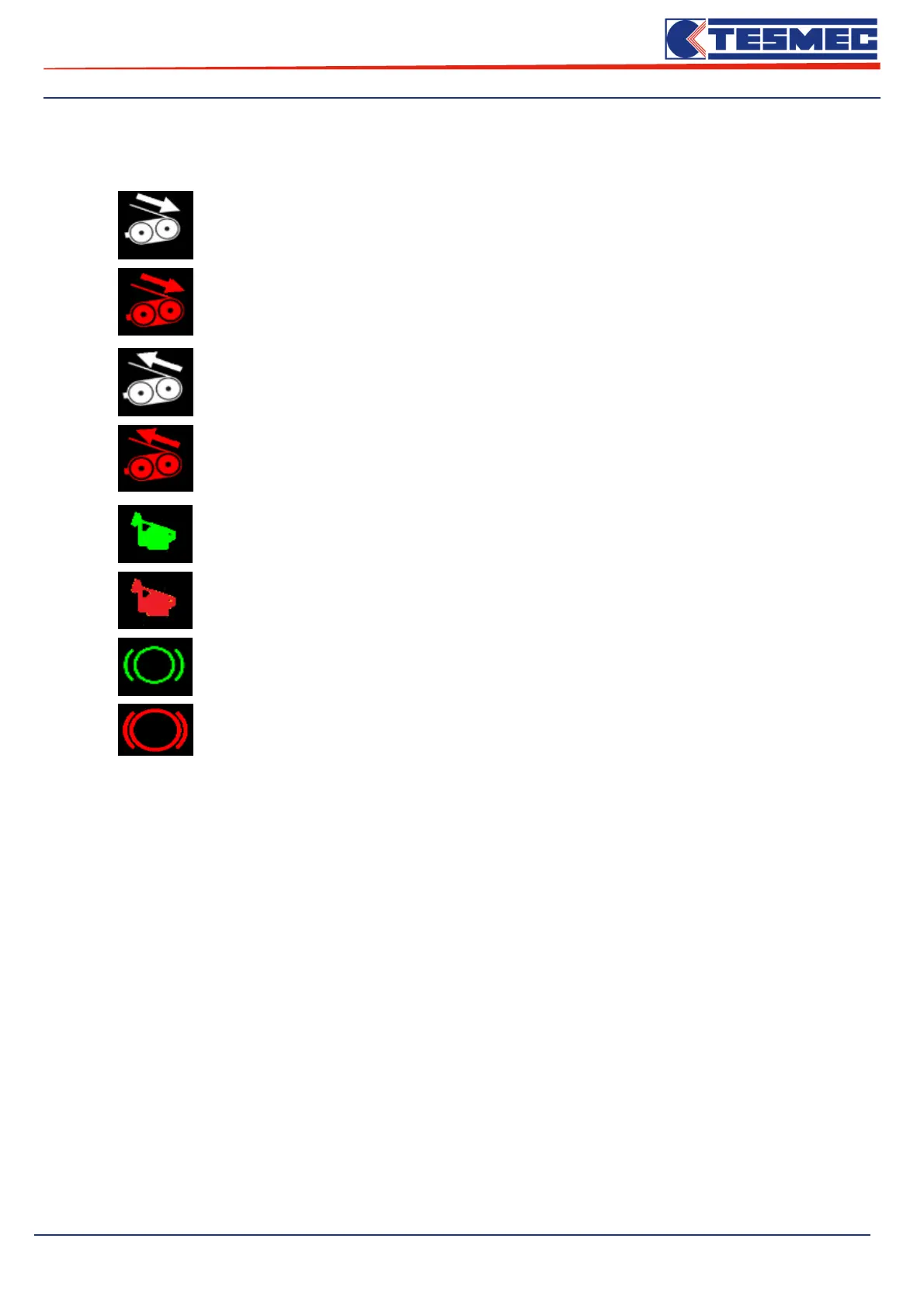

At the center of the virtual dynamometer, they show the following symbols, which can have different
configurations:
MACHINE IN PULLER CONFIGURATION.
MACHINE SET AS PULLER BUT IR WORKS AS A TENSIONER (only with bull-
wheels rotation speed > 0).
MACHINE IN TENSIONER CONFIGURATION.
MACHINE SET AS TENSIONER BUT IR WORKS AS A PULLER (only with bull-
wheels rotation speed > 0).
ROPE CLAMP OPENED.
ROPE CLAMP CLOSED
NEGATIVE BRAKE BULL-WHEELS CIRCUIT OPEN
NEGATIVE BRAKE BULL-WHEELS CIRCUIT CLOSED
2- Stringing speed: it is displays the speed in KM / H (or miles / h) which is string or recovered the rope
or wire.
3- Strung meters: it is displays how many meters (or feed) of conductor or rope have been strung
4- Reel Elevator Pressure: it is displays the set pressure on de reel winder circuit or hydraulic heads
mounted on the reel elevators.
5- Choosing Machine Operating Mode: through this button, the operator can select the scale of the pull
to be displayed (MACHINE TENSIONER or MACHINE PULLER). Depending on the chosen
configuration, the virtual dynamometer will automatically scale the pull consistently to the direction of
rotation of the bull-wheels if v> 0.
6- Meter counter reset: It allows you to reset the counter of the strung meters.
