HYDRAULIC PULLER-TENSIONER PT1250
Manual: MI-PT1250-050-01-IT Date: 06.11.2017 Author: AT Page: 28 of 69

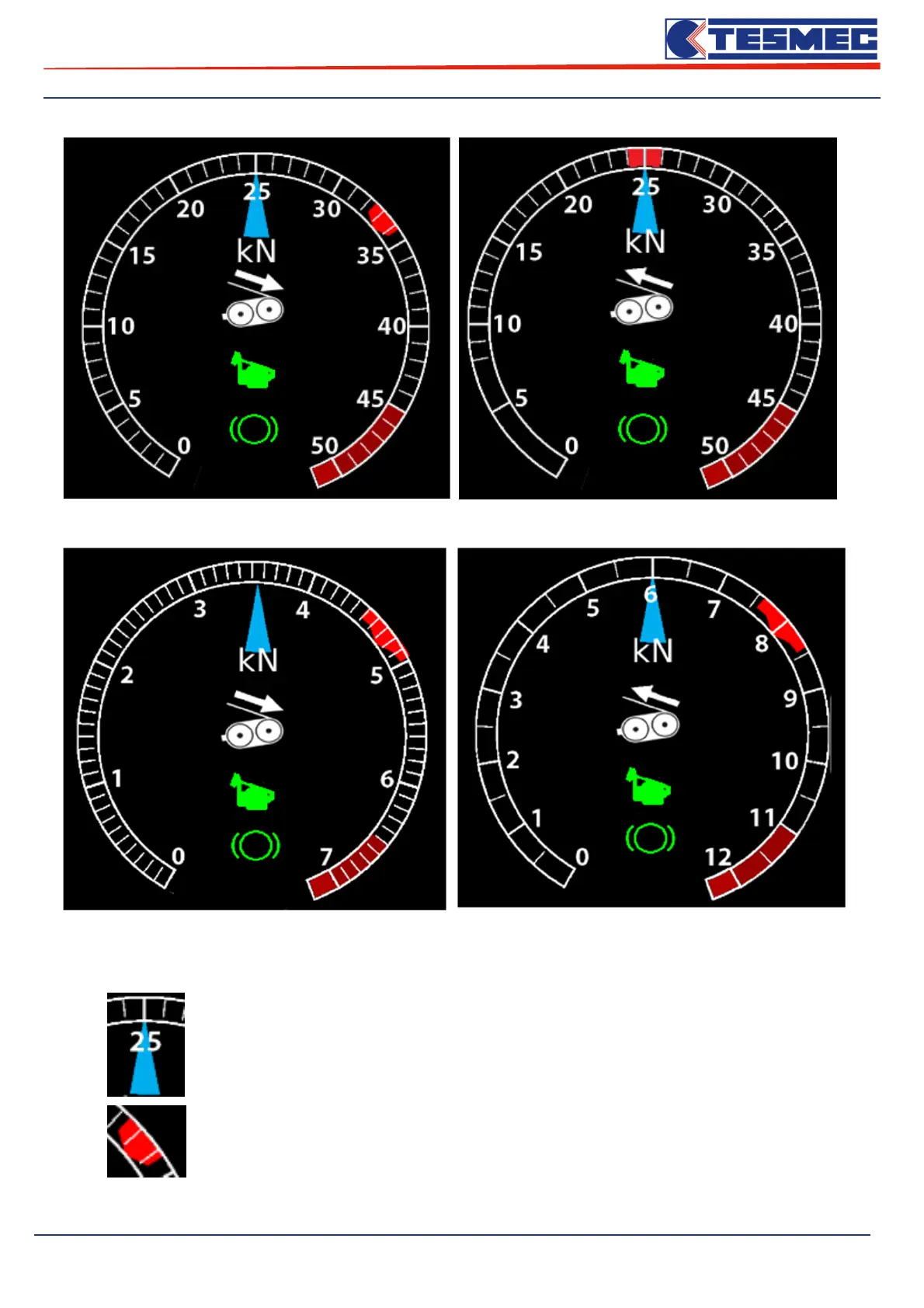

PULLER machine configuration TENSIONER machine configuration
FINE PULLER machine configuration FINE TENSIONER machine configuration
BLUE ARROW: indicates the CURRENT pull value in KN on the reference scale.
RED ARROW:
TENSIONER machine: Indicates the pull value SET in KN.
PULLER machine: Indicates the LIMIT pull value in KN.
