Tesmec PT1250 - External Reel Elevator Connections

HYDRAULIC PULLER-TENSIONER PT1250
Table: MI-TN1250-050-00-IT Data: 13.09.2017 Author: AT Page 7 of 9

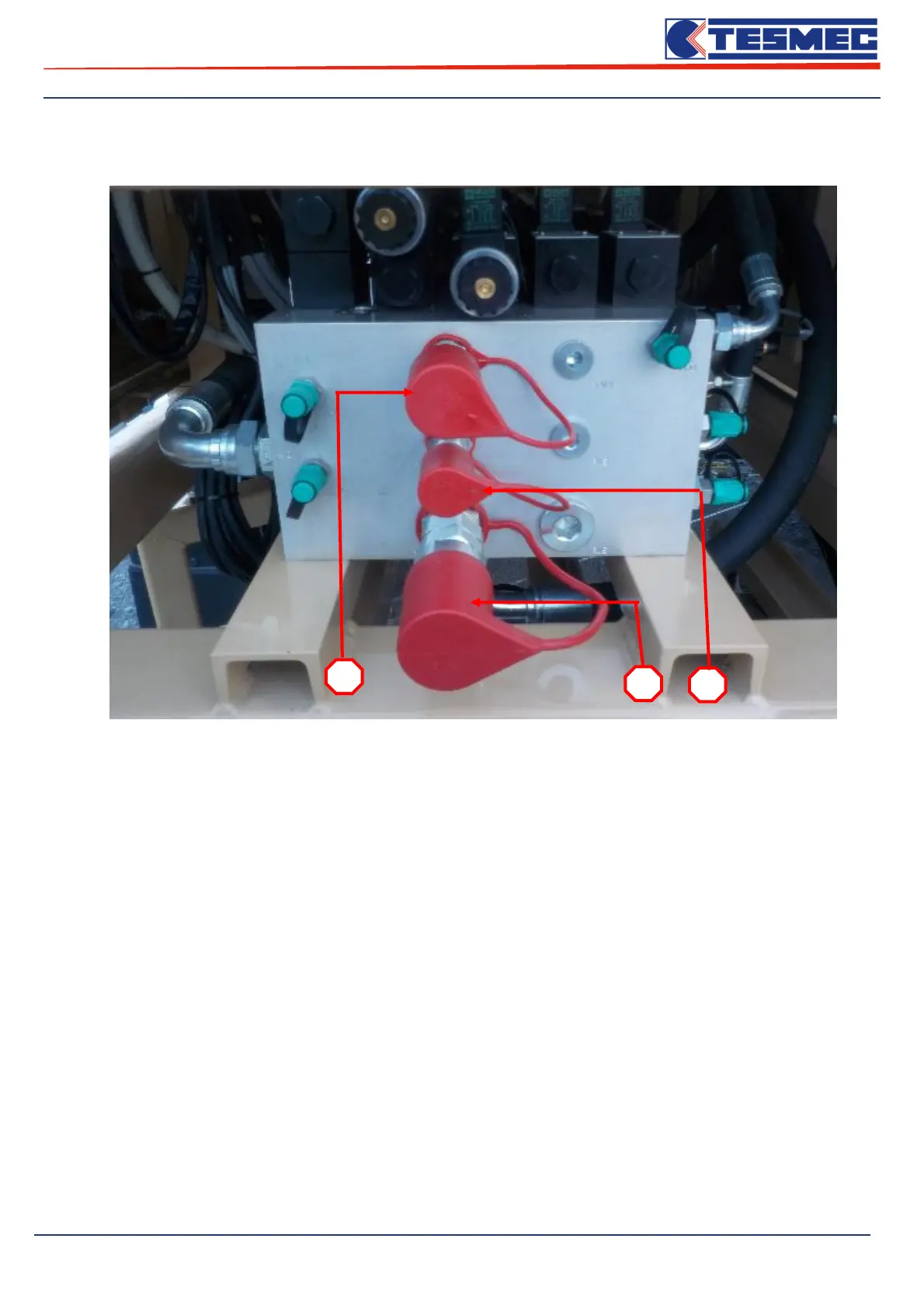

Table 7 – External Reel Elevator Connections
1. Hydraulic Oil to Hydraulic Head Delivery;
2. Drainage;
3. Hydraulic Oil to Hydraulic Head Return;
1
3
2
