Tesmec PT1250 - Hydraulic Gearbox

HYDRAULIC PULLER-TENSIONER PT1250
Table: MI-TN1250-050-00-IT Data: 13.09.2017 Author: AT Page 6 of 9

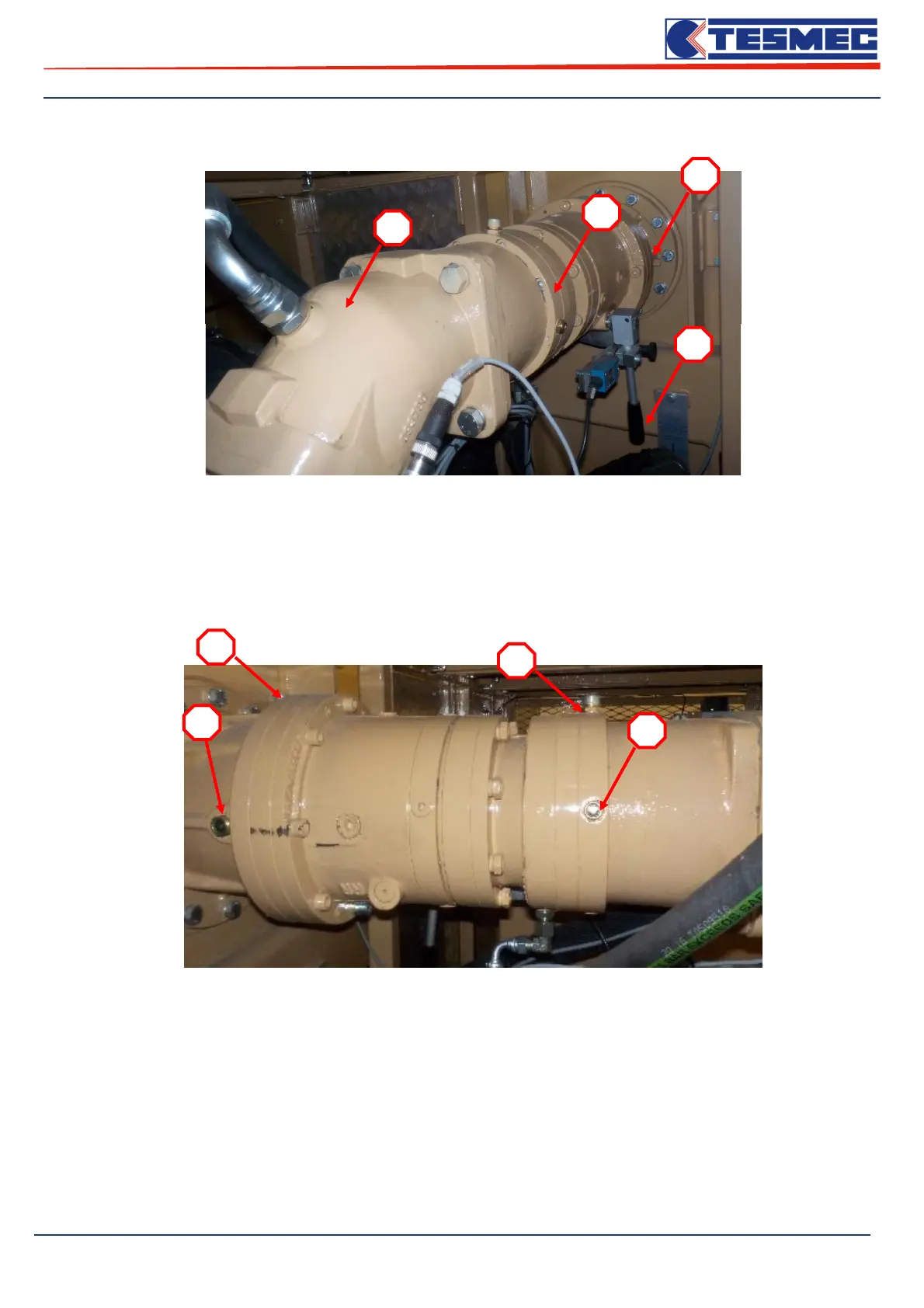

Table 6 – Hydraulic Gearbox
1. Hydraulic Engine;
2. Negative Brake;
3. Reduction Gear;
4. Shift Lever Fine Stringing;
5. Gearbox Oil Level;
6. Gear Oil Filling Plug;
7. Negative Brake Oil Filling Plug;
8. Negative Brake Oil Level;
