HYDRAULIC PULLER-TENSIONER PT1250
Manual: MI-PT1250-050-01-IT Date: 06.11.2017 Author: AT Page: 57 of 69

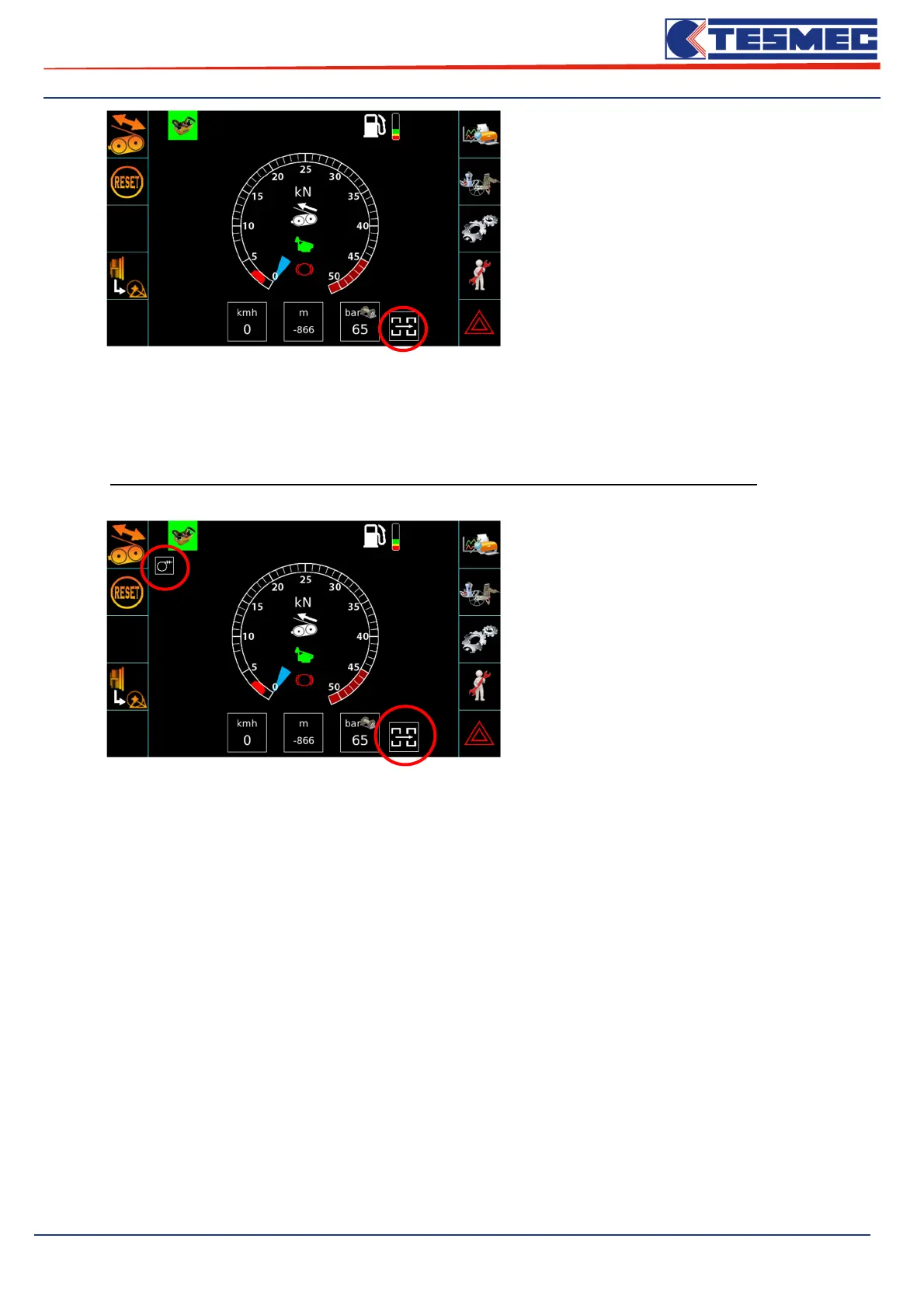

When the electronic connection is active, the
corresponding symbol on all SLAVE machine
will be displayed.
When the machines are electronically connected to each other, it is possible to use automatic electronic
synchronization: this system automatically adjusts the speeds of both circuits so that you can have the
wires or ropes at the same height during the stringing operations.
Synchronization can be used when the machine is powered by PULLER or TENSIONER.
If the electronic connection and electronic
synchronization is active, on the main job
screen of all SLAVE machines, the
corresponding symbol will be displayed.
NOTE: Electronic synchronization can only be
activated when the electronic connection is
active.
6.1.3 MANUAL ELECTRONIC SYNCRONIZER
When electronic connection is active but automatic electronic synchronization (OFF switch sync) is
disabled, manual adjustment can be made on the pull-force value or the recovery speed of the individual
slave machines, depending on the settings set on the master machine.
This system can be used in two different situations:
- Machine like TENSIONER: Between the MASTER machine pull potentiometer (pos.3 p.9) you can set
the pull-force value on all machines, while through the SLAVE drive remote control potentiometer (pos.3
9) you can make a small adjustment on the value of the single circuit, depending on the value set on the
master.
In this way, the operator can manually adjust the height of the wire or wire according to the line and the
various stretching operations that are being carried out
