HYDRAULIC PULLER-TENSIONER PT1250
Manual: MI-PT1250-050-01-IT Date: 06.11.2017 Author: AT Page: 48 of 69
5.7 CONNECTION MACHINE-HYDRAULIC HEAD OF THE REEL ELEVATOR OR REEL WINDER
Machine can feed 2 reel elevators with hydraulic head or 2 reel winders made by Tesmec, both
functioning as tensioner and puller.
Each hydraulic head (or each reel winder) has a connecting kit consisting of two pipes.
Each of these pipes has to be connected to the proper rapid coupler making care to connect them
properly (otherwise the installation will not work).

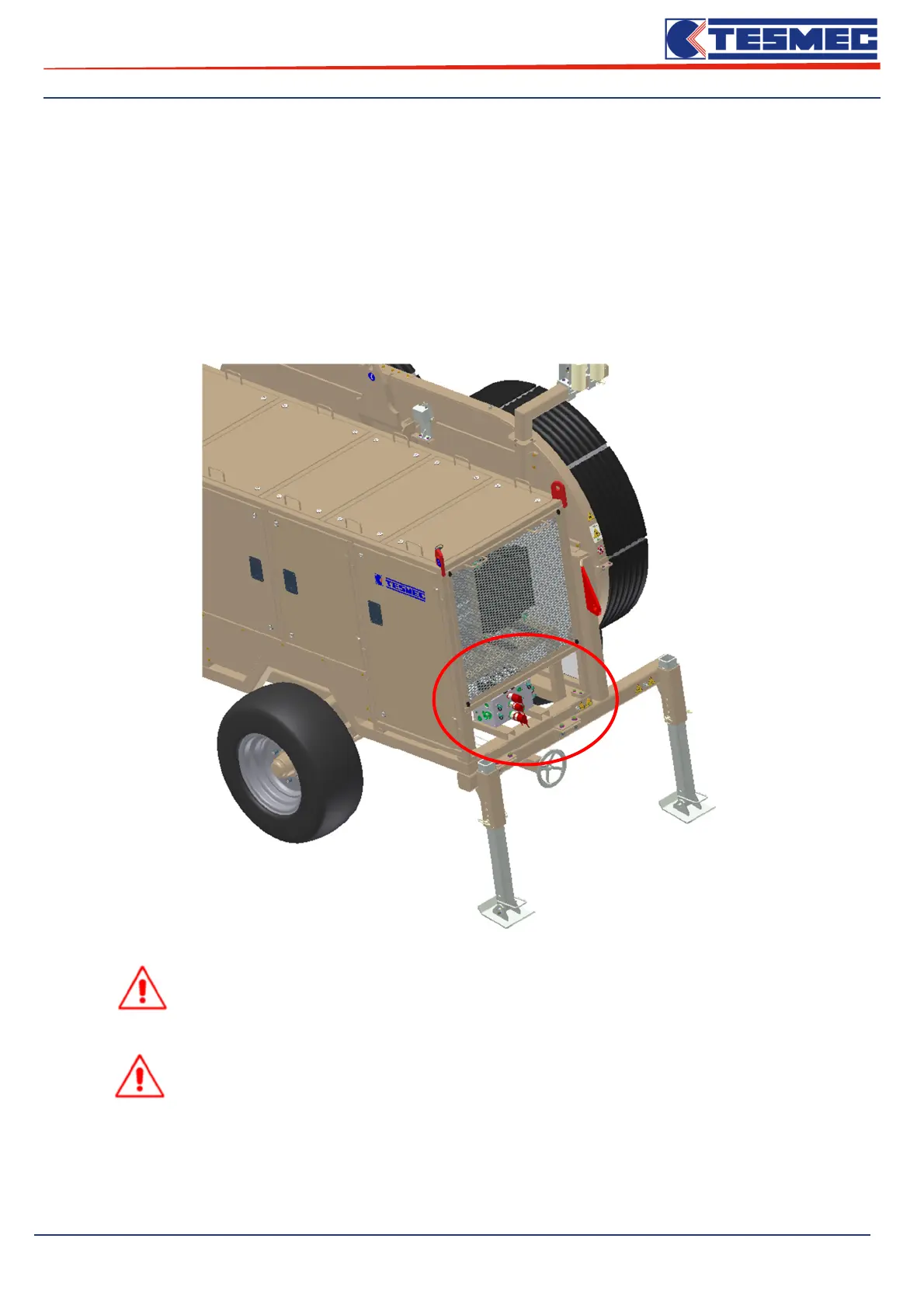

Connect the hoses of the reel elevators to the rapid couplers (tav. 7).
ATTENZION: it is important that, before connecting the rapid couplers, the
operator has checked their cleanliness as the introduction of dirt into the
hydraulic circuit can create very serious damages.
ATTENZION: The rapid couplers must be connected before putting the circuit
under pressure.
