Tesmec PT1250 - Machine Radio Control

HYDRAULIC PULLER-TENSIONER PT1250
Table: MI-TN1250-050-00-IT Data: 13.09.2017 Author: AT Page 9 of 9

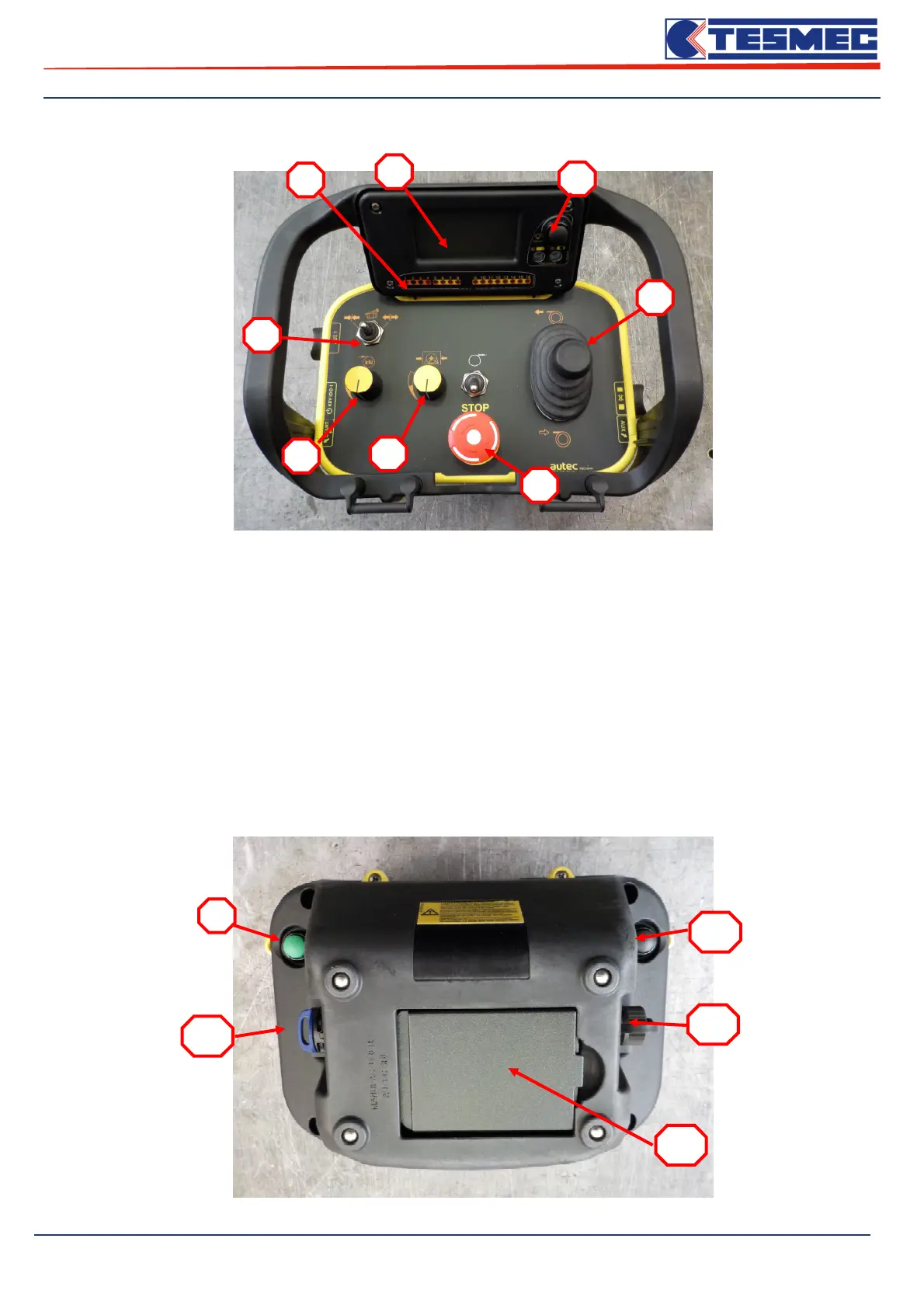

Table 9 – Machine Radio control
1. Operational Stop Button;
2. Reel Elevator Circuit Pressure;
3. Pull Settings;
4. Rope Clamp Control;
5. Bull-wheels Movement Control;
6. Page Management Display Button;
7. Data Display;
8. Alarm Led/or Several Reports;
9. Radio control Connection Button;
10. Radio Control Switch;
11. Reel Elevator Rotation Button;
12. Socket for Remote Connection Cable;
13. Radio control Battery;
