Software Operation
www.ti.com

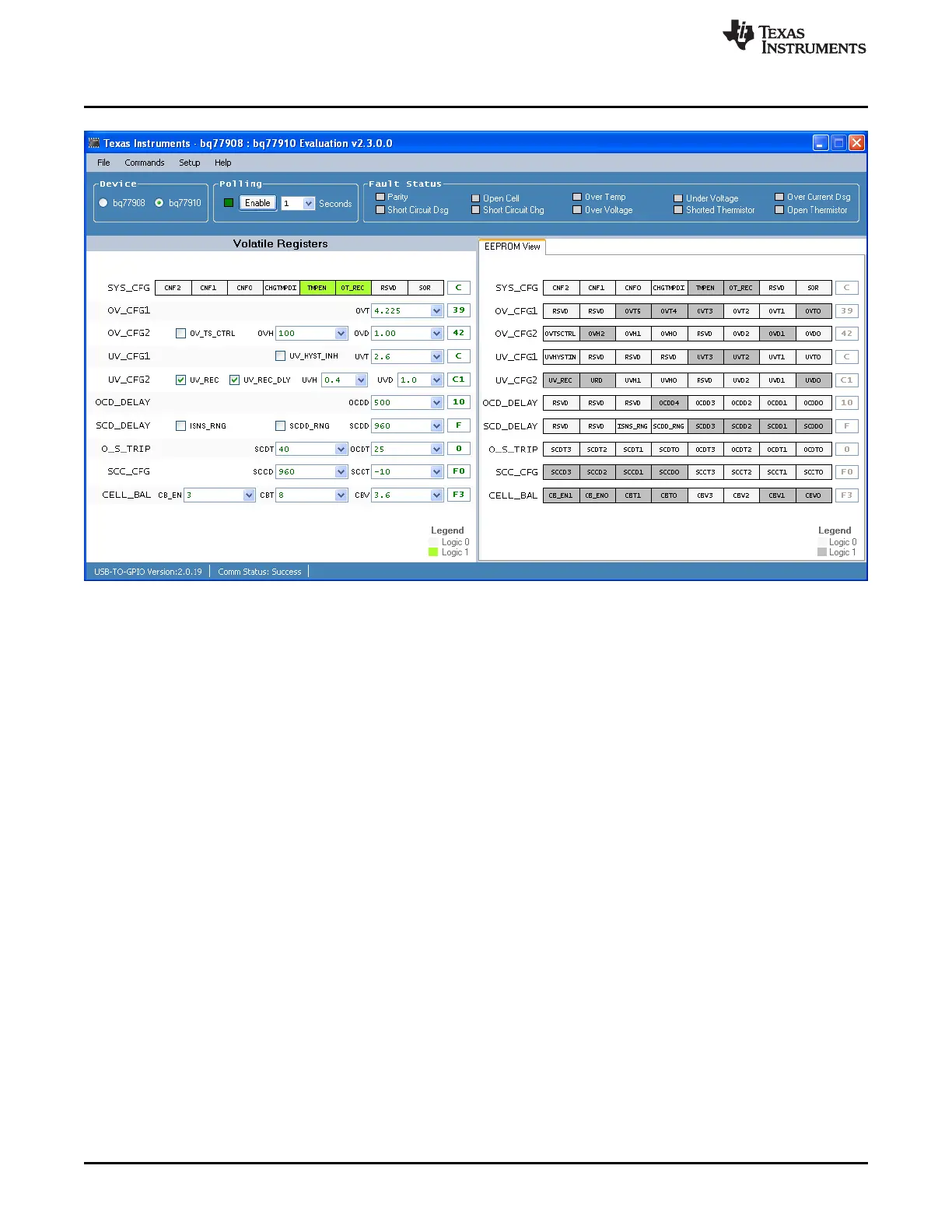

Figure 4. GUI with Communication Established
Other than the menu selections, the software window has 3 sections. In the bottom border is a status
section. The middle section is a register section. The top section is a status area useful for checking the
device status when a fault is detected. Details are described in following sections.
5.1 Menu Commands
5.1.1 Help Menu
The Help > About menu selection displays version information about the program.
5.1.2 Setup Menu
The Setup > Communication selection allows selection of either the USB Interface Adapter or the
Aardvark. Default is the TI USB Interface Adapter and this window will not be needed. Selecting the Save
and Exit button will check for the adapter, If the selected adapter is not present, a communications error
window will appear. Selecting OK in the window will return to the Communication Selection Window. To
exit without having the selected adapter connected, use the close window tool (red X button). Selection of
an adapter other than the 2 shown is not supported.
12
bq77910AEVM SLUU855–February 2012
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
