bq77910A Circuit Module Physical Construction
www.ti.com

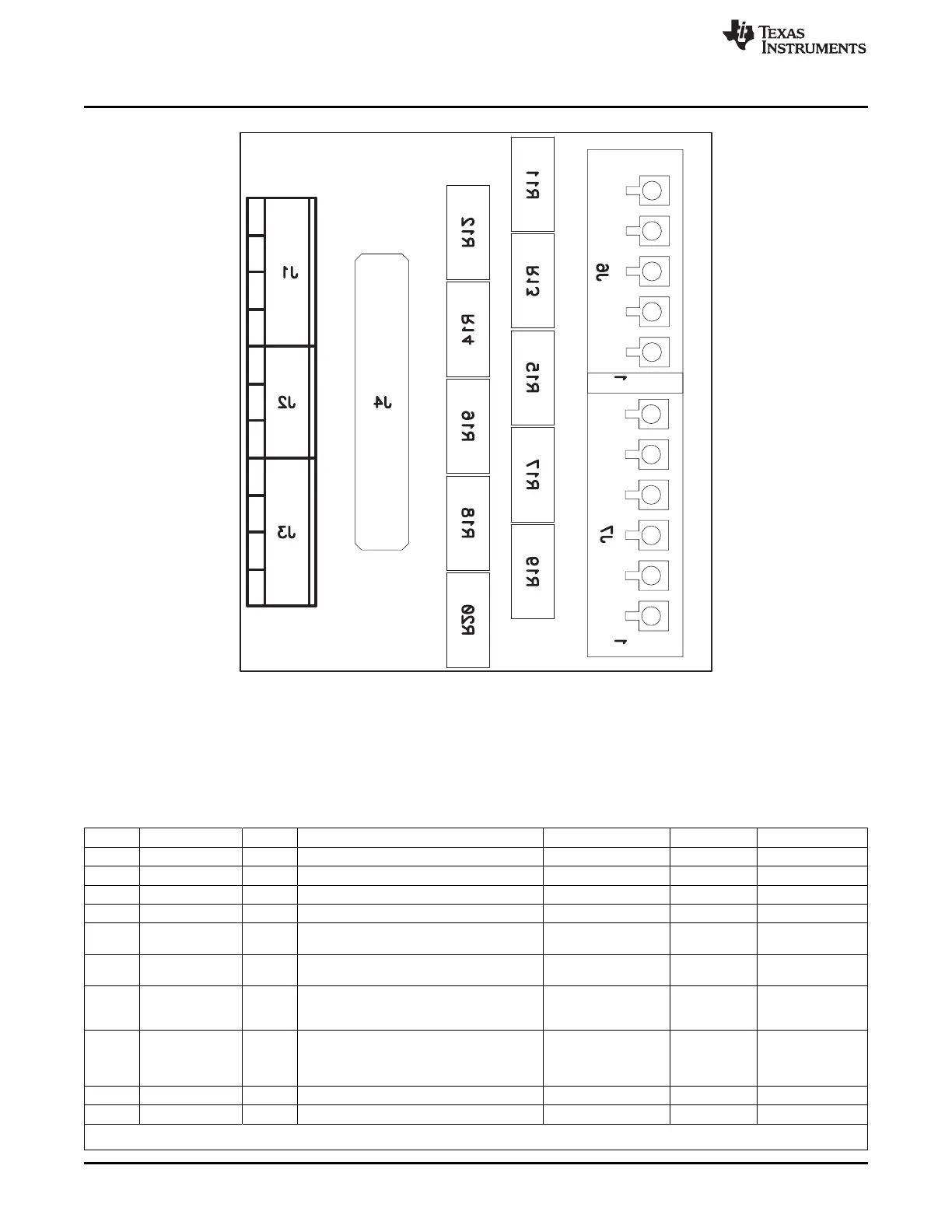

Figure 24. Resistor Simulator Bottom assembly
8.2.2 Resistor Simulator Bill of Materials
The bill of materials for the Resistor Simulator circuit module is shown in Table 12.
Table 12. Resistor Simulator Bill of Materials
Count Reference Design Value Description Size Part Number Manufacturer
0 J1, J3 Terminal Block, 4-pin, 6-A, 3.5mm 0.55 x 0.25 inch ED555/4DS OST
0 J2 Terminal Block, 3-pin, 6-A, 3.5mm 0.41 x 0.25 inch ED555/3DS OST
0 J4 Header, Male 2x11-pin, 100mil spacing 0.100 inch x 11 x 2 PEC11DAAN Sullins
0 J5, J8 150-mil hole for standard banana plug 0.300 dia inch
1 J6 ** 1875454 Header, 8A, 160V, 5-pin, 3.81 mm spacing, Top 6.85 x 22.96 mm 1875454 Phoenix Contact
Entry
1 J7 ** 1875467 Header, 8A, 160V, 6-pin, 3.81 mm spacing, Top 6.85 x 26.77 mm 1875467 Phoenix Contact
Entry
10 R1, R2, R3, R4, 200 Resistor, Metal Film, 1/4 watt, ± 1% 1206 STD STD
R5, R6, R7, R8,
R9, R10,
0 R11, R12, R13, Resistor, Chip, 1W, 1% 2512
R14, R15, R16,
R17, R18, R19,
R20
0 TP1, TP2 Pad, TH 0.038 inch
1 – PCB, 2 In x 1.75 In x 0.062 In HPA582 Any
Notes: 1. These assemblies are ESD sensitive, ESD precautions shall be observed.
36
bq77910AEVM SLUU855–February 2012
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
