N2200EVO:

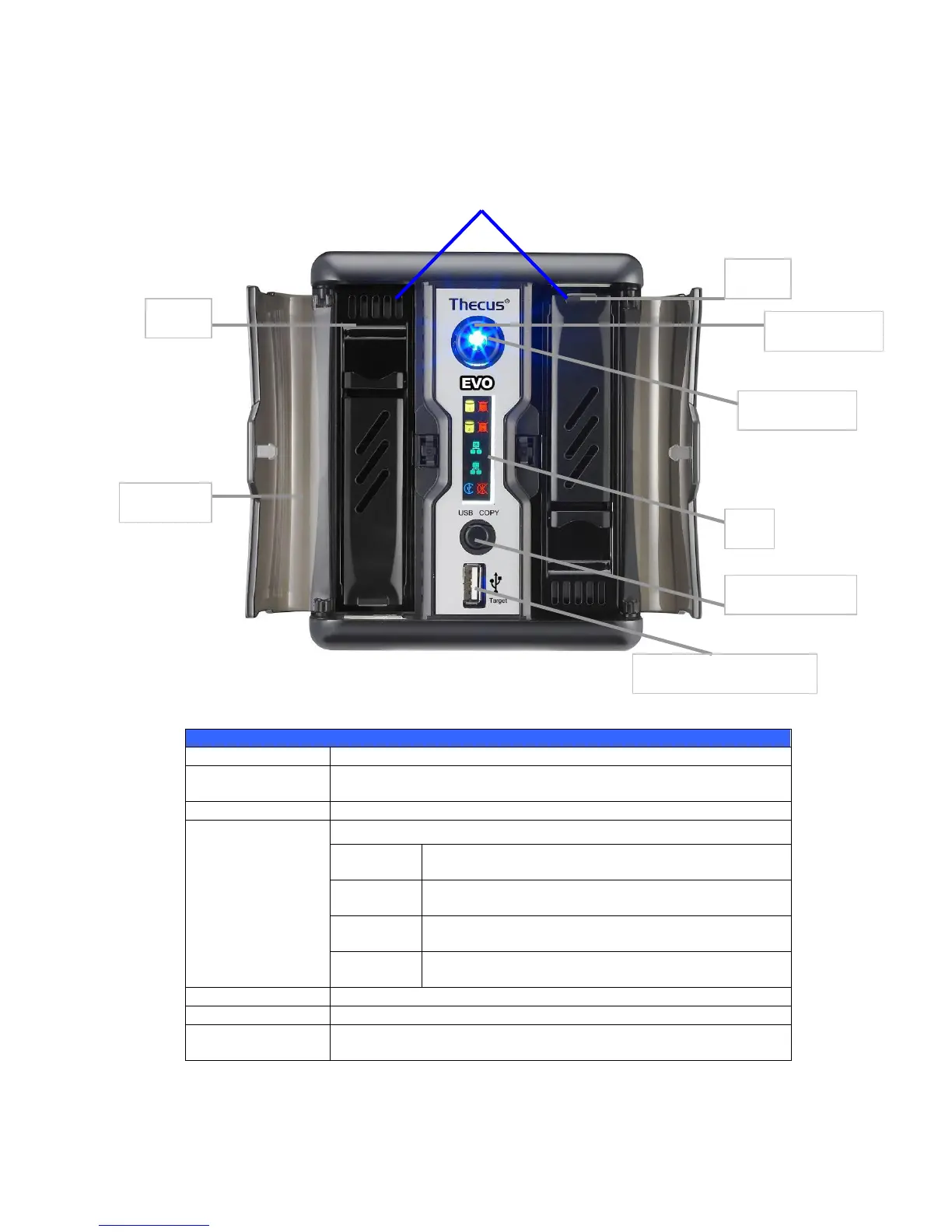

The Thecus N2200EVO‘s front panel has the device‘s controls, indicators, and hard
disk trays:
Front Panel
Item
Description
Power LED
 Solid blue: system is ready
 Blinking Blue: system is re-build
Power Button
 Power on/off N2200EVO
LCD
 Displays current system status and messages
HDD 1 LED
 Blinking Yellow: HDD activity
 Blinking Red: HDD failure
HDD 2 LED
 Blinking Yellow: HDD activity
 Blinking Red: HDD failure
WAN LED
LAN LED
 Blinking green: network activity
 Blinking green: network activity
USB Copy
● Blinking Blue: USB Copy activity
● Blinking Red: USB Copy failure
HDD Tray
 Two HDD trays support 2x 3.5" or 2 x 2.5‖ HDDs
USB Copy Button
 Copy USB storage contents to N2200EVO. (use rear USB port)
USB Port
(Target Mode)
 USB 2.0 port to connect to PC (Type A of target mode)
Power LED
Power Button
LCD
USB Copy Button
USB Port ( Target Mode)
(
Front Door
HDD 1
HDD 2
