Thecus N4100EVO User Manual

33

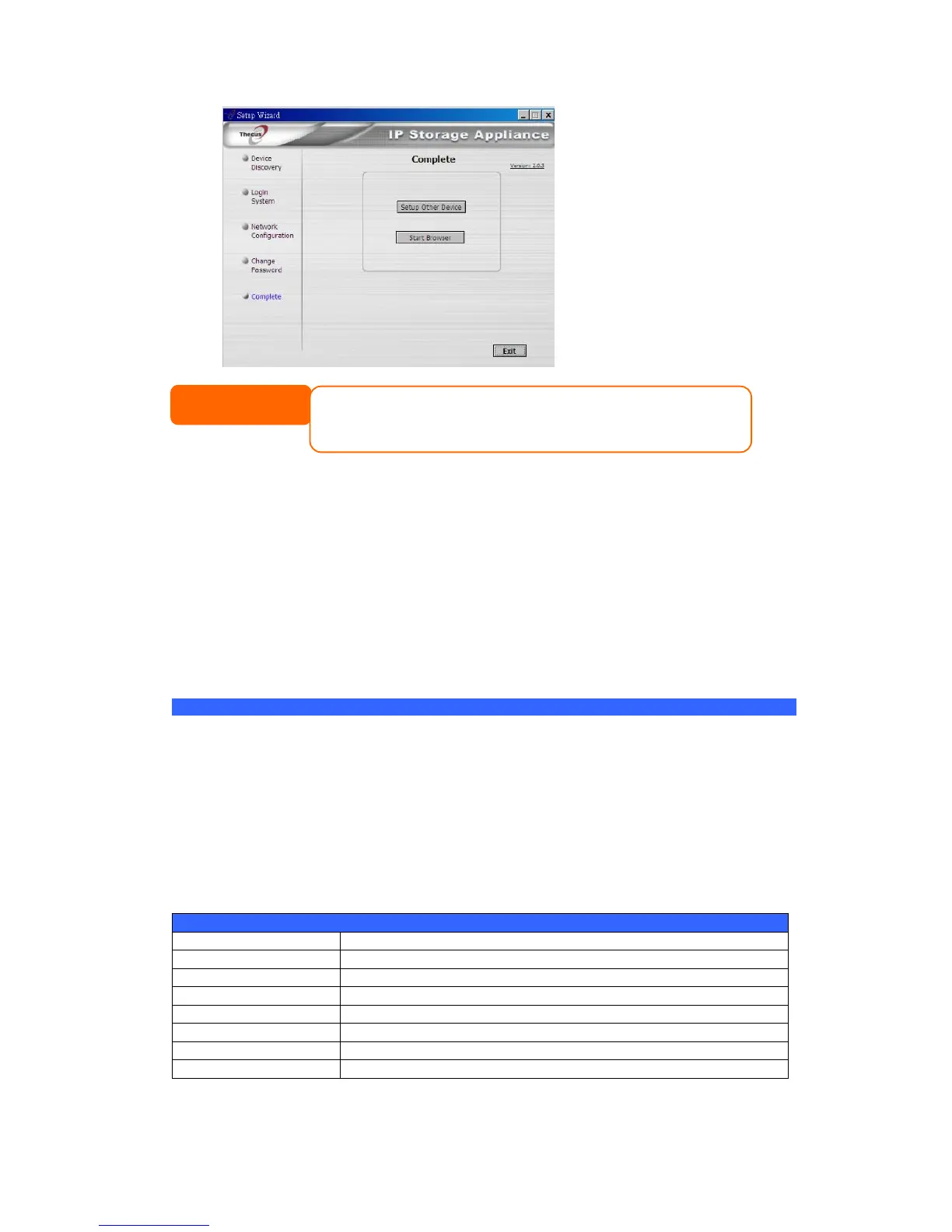

LCD Operation
The N4100EVO is equipped with an LCD on the front for easy status display and
setup. There are four buttons on the front panel to control the LCD functions.
LCD Controls
Use the Down (▼), Up (▲), Enter () and Escape (ESC) keys to operate LCD to
view system information and USB copy.
The following table illustrates the keys on the front control panel:
LCD Controls
Icon
Function
Description
▲
Up Button
Select the previous configuration settings information.
▼
Down Button
Select the next configuration settings information

Enter
Enter for the USB copy confirmation message.
ESC
Escape
Escape and return to the previous menu.
There is one mode of operation for the LCD: Display Mode
Display Mode
During normal operation, the LCD will be in Display Mode.
Display Mode
Item
Description
Host Name
Current host name of the system.
WAN
Current WAN IP setting.
LAN
Current LAN IP setting.
Disk Info
Current status of disk slot has been installed
RAID
Current RAID status.
System Fan
Current system fan status.
2006/06/16 12:00
Current system time.
NOTE
The Thecus Setup Wizard is designed for installation on systems running Windows
XP/2000/vista/7 or Mac OSX or later. Users with other operating systems will
need to install the Thecus Setup Wizard on a host machine with one of these
operating systems before using the unit.
