125HD 6 Setting up the power supply
EN - 15

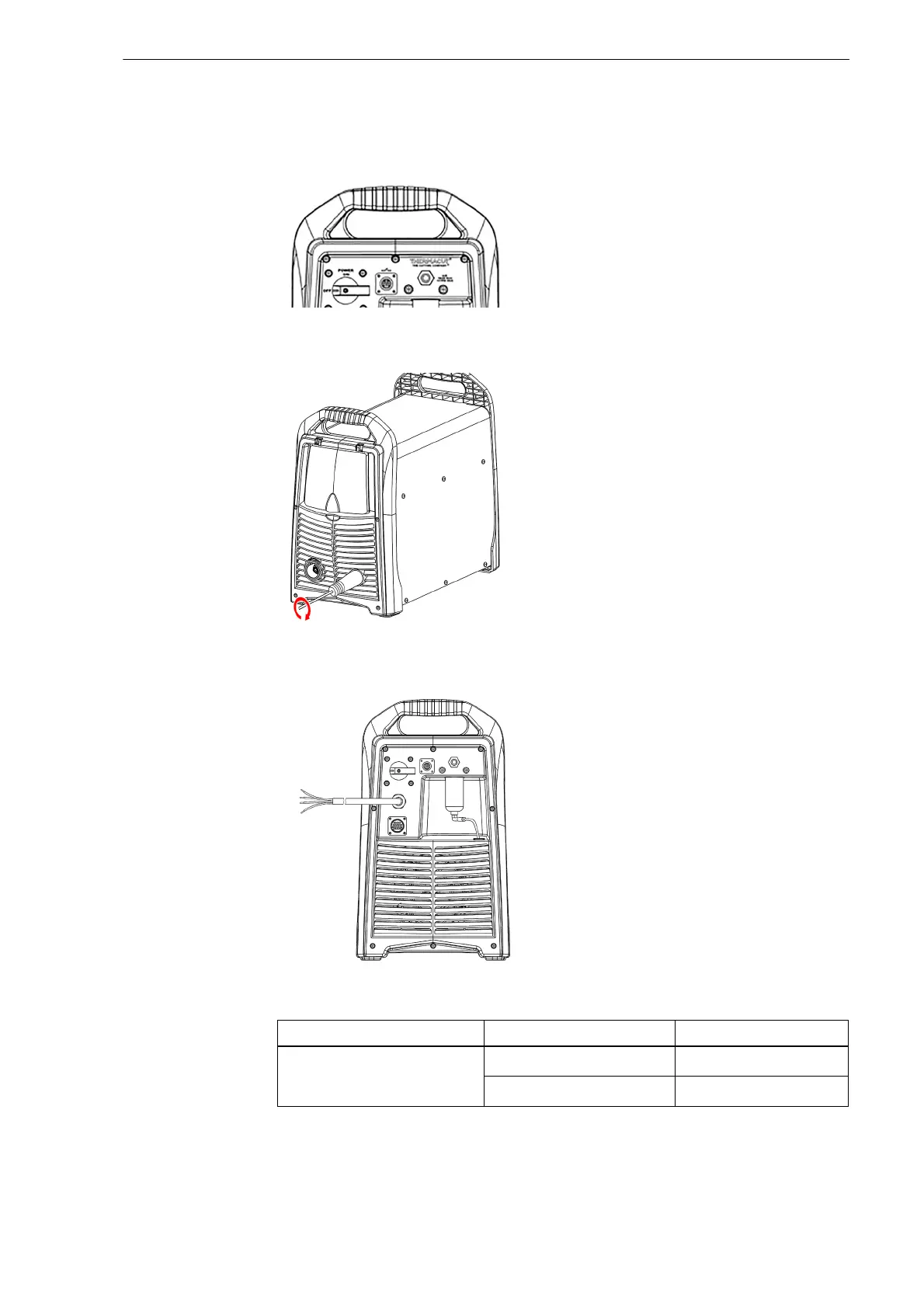

6 Setting up the power supply
6.1 Connecting to the gas supply
6.2 Connecting the work lead
6.3 Connecting the power supply cable
 Connect the gas hose with an inside
diameter of at least 6 mm to the gas
connection of the
EX-TRAFIRE
®
125HD.
 Connect the work lead to the work
lead connecting socket and secure it
by rotating clockwise.
 The power supply should be
connected by a qualified electrician.
L1 -> brown (U)
L2 -> black (V)
L3 -> gray (W)
PE grounding -> green-yellow
Table 7 Recommended cable extensions
Input voltage Wire cross-sections Length
400 V AC/3 phases
6mm
2
Up to 15 m
6mm
2
15–45 m
B
r
o
w
n
G
r
e
e
n
-
y
e
l
l
o
w
Black
Gray
