THERMACUT EX-TRAFIRE 125HD - 105 A cutting, shielded, with compressed air (Detailed)

EX-TRAFIRE
®
125HD 20 Cutting tables for mechanical cutting
EN - 57

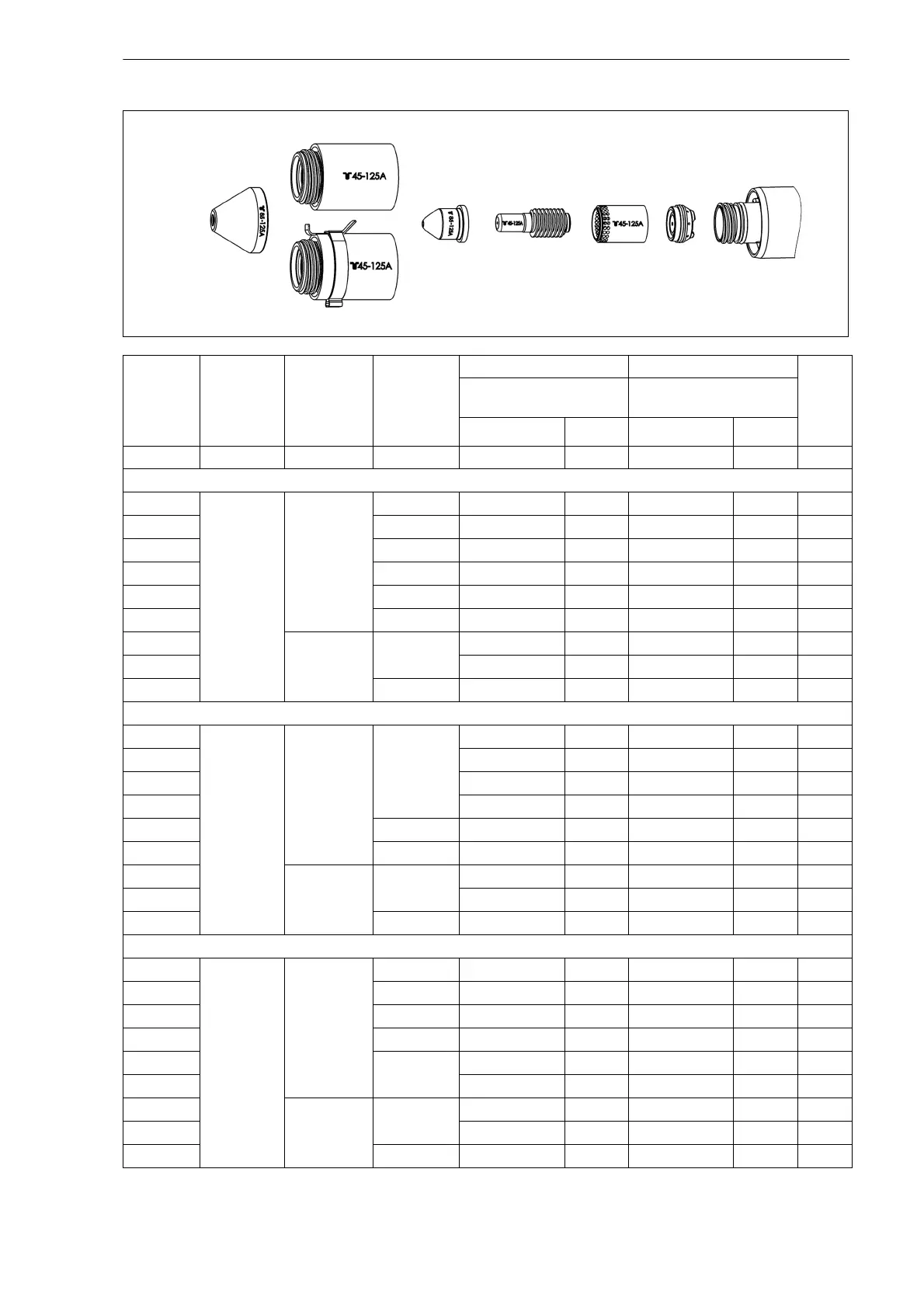

20.4.1 105 A cutting, shielded with compressed air
EX-6-421-021
EX-6-415-021
EX-6-415-022
EX-6-409-021 EX-6-404-021EX-6-401-021
Material
thickness
Torch
(shield) to
workpiece
distance
Pierce
height
(shield) to
workpiece
distance
Pierce
delay
time
Recommended speed Maximum speed Kerf
width
Settings for
highest quality
Standard quality
settings
Cutting speed Voltage Cutting speed Voltage
[mm] [mm] [mm] [Seconds] [mm/min] [Volts] [mm/min] [Volts] [mm]
Mild steel
6
4.6
7.2
0.5 3700 143 5400 143 2
8 0.6 3220 143 4570 143 2.1
10 0.8 2170 145 3000 145 2.2
12 0.7 1810 146 2180 146 2.3
16 1 1050 150 1430 150 2.4
20 1 780 153 940 153 2.5
25
Edge start
1
540 156 700 156 2.7
30 420 160 440 160 3
32 1.2 370 162 400 162 3.2
Stainless steel
6
4.6
7.2
0.5
5320 143 6900 145 1.6
8 3650 147 4300 150 1.9
10 2230 147 2420 150 2.2
12 1490 160 2300 160 2.3
16 1 950 155 1230 155 2.4
20 1.5 660 158 855 158 2.5
25
Edge start
1
440 160 570 160 2.9
30 330 161 450 161 2.9
32 1.2 290 162 420 162 2.9
Aluminum
6
4.6
7.2
0.5 6340 152 6390 154 1.9
8 0.6 4330 152 4690 154 2
10 0.8 2660 152 3900 154 2.2
12 0.7 2020 154 3100 155 2.2
16
1
1350 155 1860 156 2.1
20 970 156 1220 158 2.1
25
Edge start
1
660 155 960 157 2.5
30 460 168 700 176 2.5
32 1.2 390 170 490 178 2.5
