THERMACUT EX-TRAFIRE 125HD - Enabling the external DC coil; Enabling the external AC coil

EX-TRAFIRE
®
125HD 6 Setting up the power supply
EN - 19

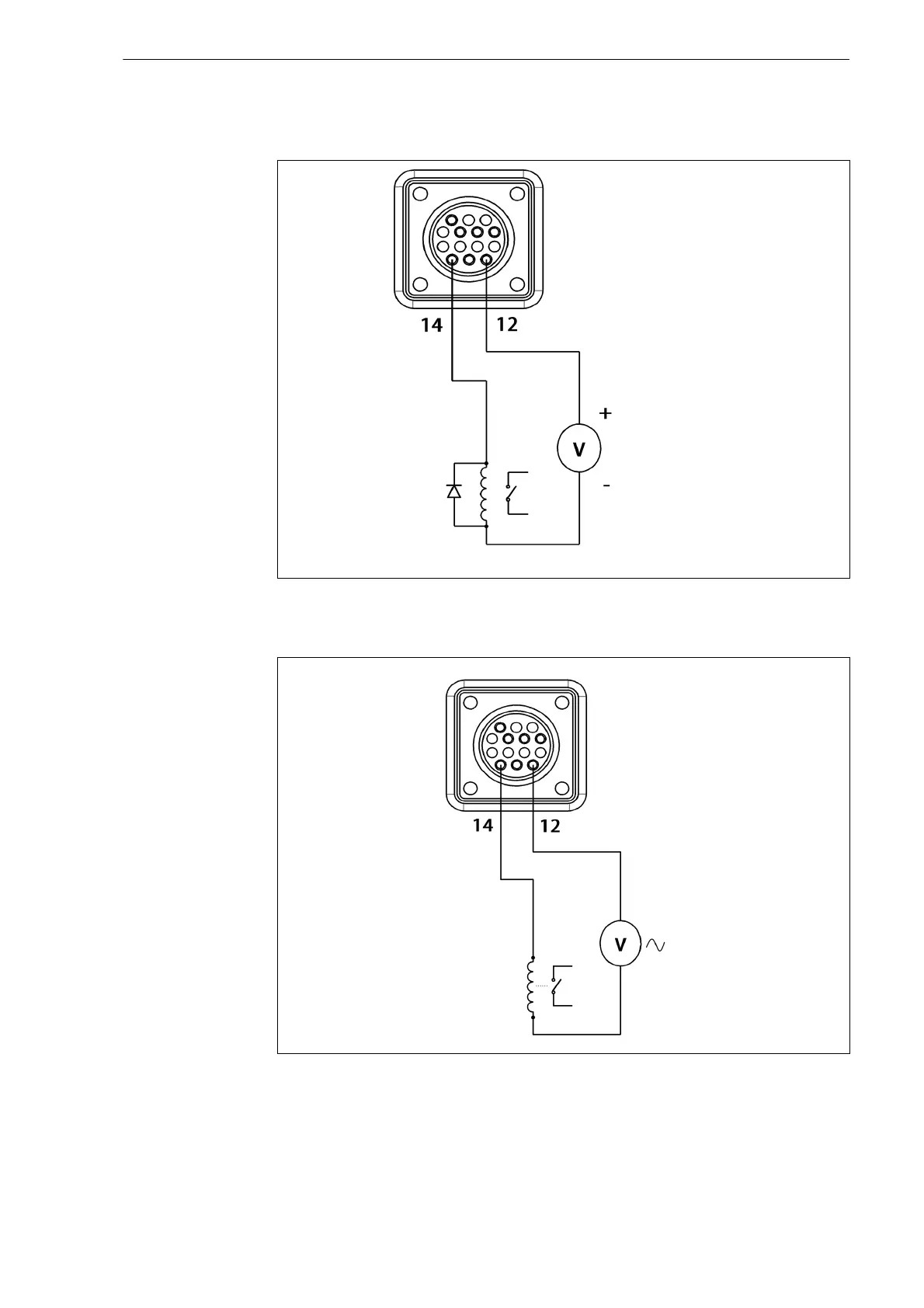

6.6.2 Enabling the external DC coil with an external power supply
 For 24 V DC, use a 1N4007 diode.
6.6.3 Enabling the external AC coil with an external power supply
Fig. 5 Enable the external DC coil with an external power supply.
24 V DC
Use diode
1N4007 if the
voltage is
24 V DC.
Fig. 6 Enable the external AC coil with an external power supply.
24 V AC
230 V AC
