THERMACUT EX-TRAFIRE 125HD - Aligning machine cutting torch

EN - 22
6 Setting up the power supply EX-TRAFIRE
®
125HD
6.8 Aligning FHT-EX
®
125TTM machine cutting torch
For information on the cutting process
 6 Setting up the power supply on page EN-15

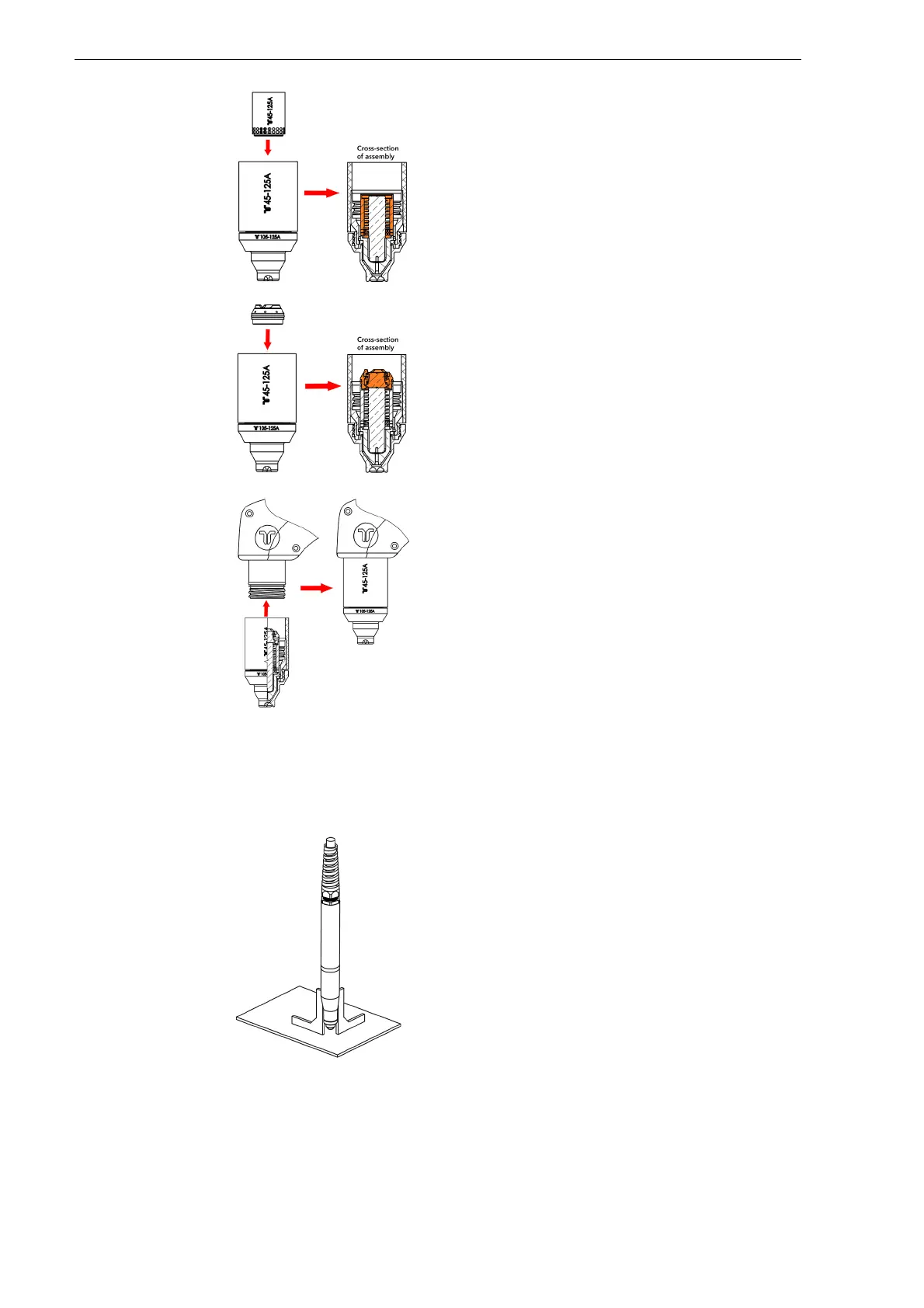

4 Insert swirl ring into the entire
assembly.
5 Insert swirl ring holder.
 Apply silicon to the O-ring of the
swirl ring holder.
6 Screw entire assembly onto the hand
cutting torch.
 Do not overtighten!
1 Position the cutting torch
perpendicular to the workpiece.
2 Use an angle gauge to align the
machine cutting torch at 0° and 90°.
