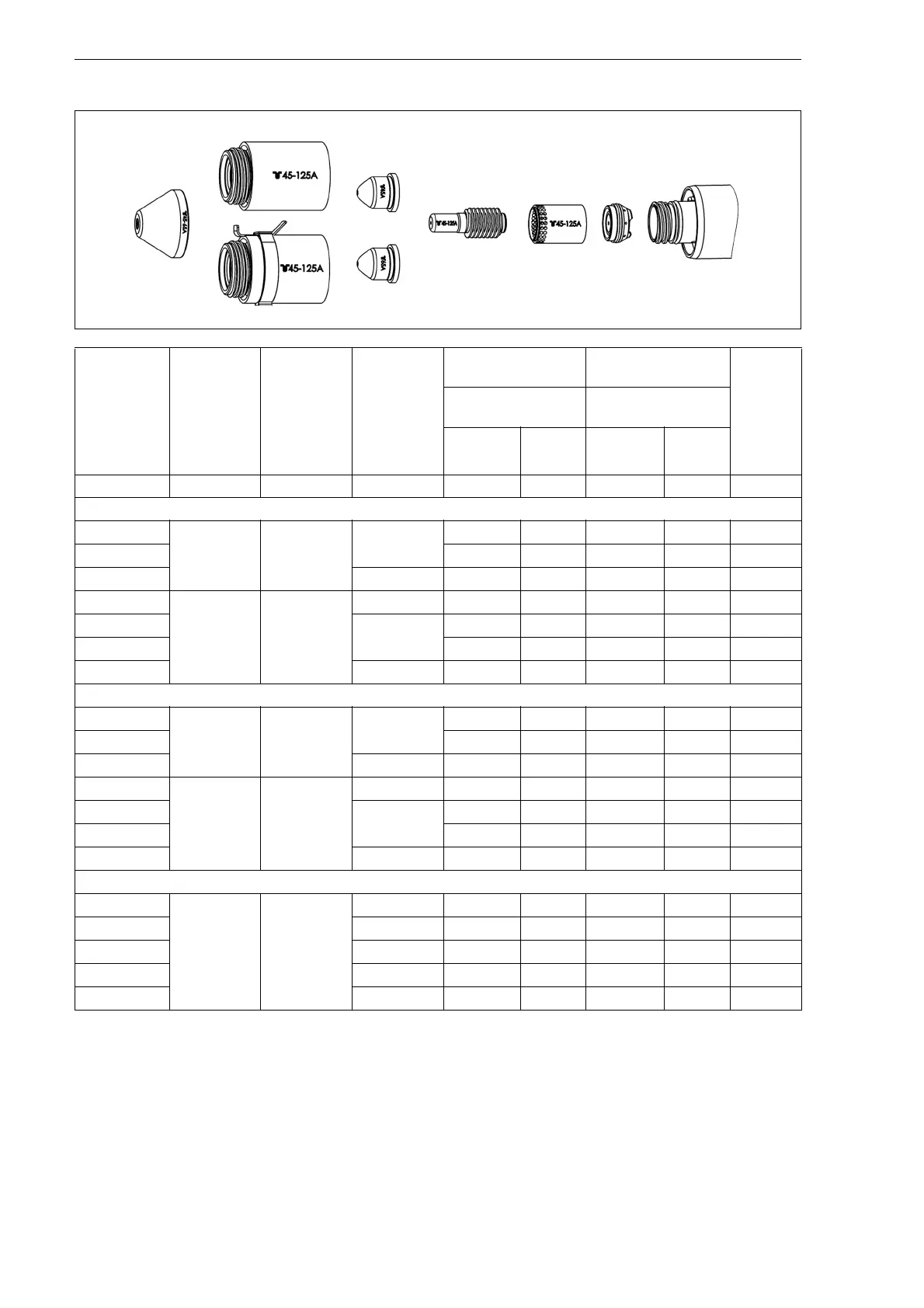

THERMACUT EX-TRAFIRE 125HD - 45 A cutting, shielded, with compressed air

EN - 52
20 Cutting tables for mechanical cutting EX-TRAFIRE
®
125HD
20.1 45 A cutting, shielded, with compressed air
EX-6-421-022
EX-6-415-022
EX-6-415-021
EX-6-409-023
EX-6-409-024
EX-6-401-021
EX-6-404-021
Material
thickness
Torch
(shield) to
workpiece
distance
Pierce
height
(shield) to
workpiece
distance
Pierce delay
time
Recommended
speed
Maximum speed Kerf
width
Settings for
highest quality
Standard quality
settings
Cutting
speed
Voltage Cutting
speed
Voltage
[mm] [mm] [mm] [Seconds] [mm/min] [Volts] [mm/min] [Volts] [mm]
Mild steel
0.5
0.5 2
0
8890 104 12510 104 1.6
1 8890 104 10760 104 1.4
1.5 0.1 8040 106 10160 106 1.4
2
1.5 3.8
0.3 6565 106 7770 106 1.4
3
0.4
3725 108 5375 108 1.5
4 2250 113 3550 113 1.5
6 0.5 1265 122 2050 122 1.6
Stainless steel
0.5
0.5 2
0 8890 103 12510 103 1.4
1 8890 103 10760 103 1.2
1.5 0.1 7825 110 10160 110 1.2
2
1.5 3.8
0.3 6095 110 8615 110 1.2
3 0.4 3585 110 4405 110 1.5
4 2185 127 2810 127 1.6
6 0.5 975 127 1250 127 1.7
Aluminum
1
1.5 3.8
0 9145 126 11100 124 1.5
2 0.1 7470 125 9210 124 1.5
3 0.2 4675 125 7400 125 1.6
4 0.4 3700 129 5800 127 1.6
6 0.5 1740 135 2795 132 1.8
