THERMACUT EX-TRAFIRE 125HD - Consumables for machine cutting torch; Consumables for standard machine cutting torch 45-65 A

EX-TRAFIRE
®
125HD 19 FHT-EX
®
125TTM consumables for machine cutting torch
EN - 47
19 FHT-EX
®
125TTM consumables for machine
cutting torch
19.1 FHT-EX
®
125TTM consumables for standard machine
cutting torch 45–65 A
 If a torch height controller is used, a retaining cap with IHS (initial height
sensing) must be used.

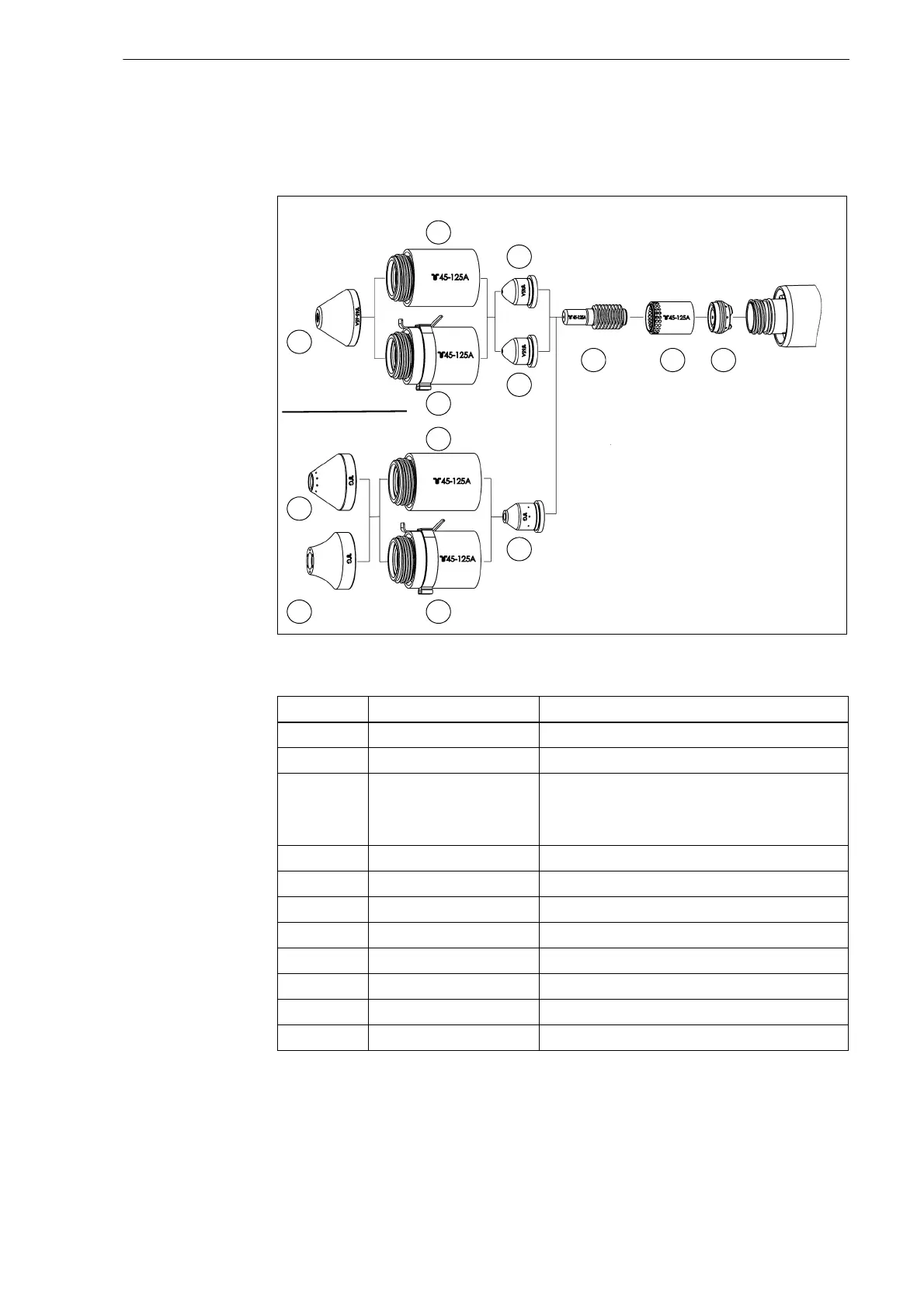

Table 21 FHT-EX
®
125TTM consumables for standard machine cutting
torch 45–65 A
Item Part number Description
A See item no. 3 Swirl ring holder
B EX-6-404-021 Swirl ring 45–125 A
C EX-6-401-021 Electrode 45–125 A
part is only available in a 5 piece set,
including 1 swirl ring holder
D EX-6-409-024 Nozzle 45 A
E EX-6-409-023 Nozzle 65 A
F EX-6-415-021 Retaining cap 45–125 A
G EX-6-415-022 Retaining cap 45–125 A with IHS tab
H EX-6-421-022 Shield 45–65 A, machine
I EX-6-440-020 Nozzle, gouging
J EX-6-440-023 Shield, gouging, standard
K EX-6-440-024 Shield, gouging, high removal
Shielded
Gouging
AB
C
F
D
E
F
J
GK
G
I
H
