THERMACUT EX-TRAFIRE 125HD - Page 21

EX-TRAFIRE
®
125HD 6 Setting up the power supply
EN - 21

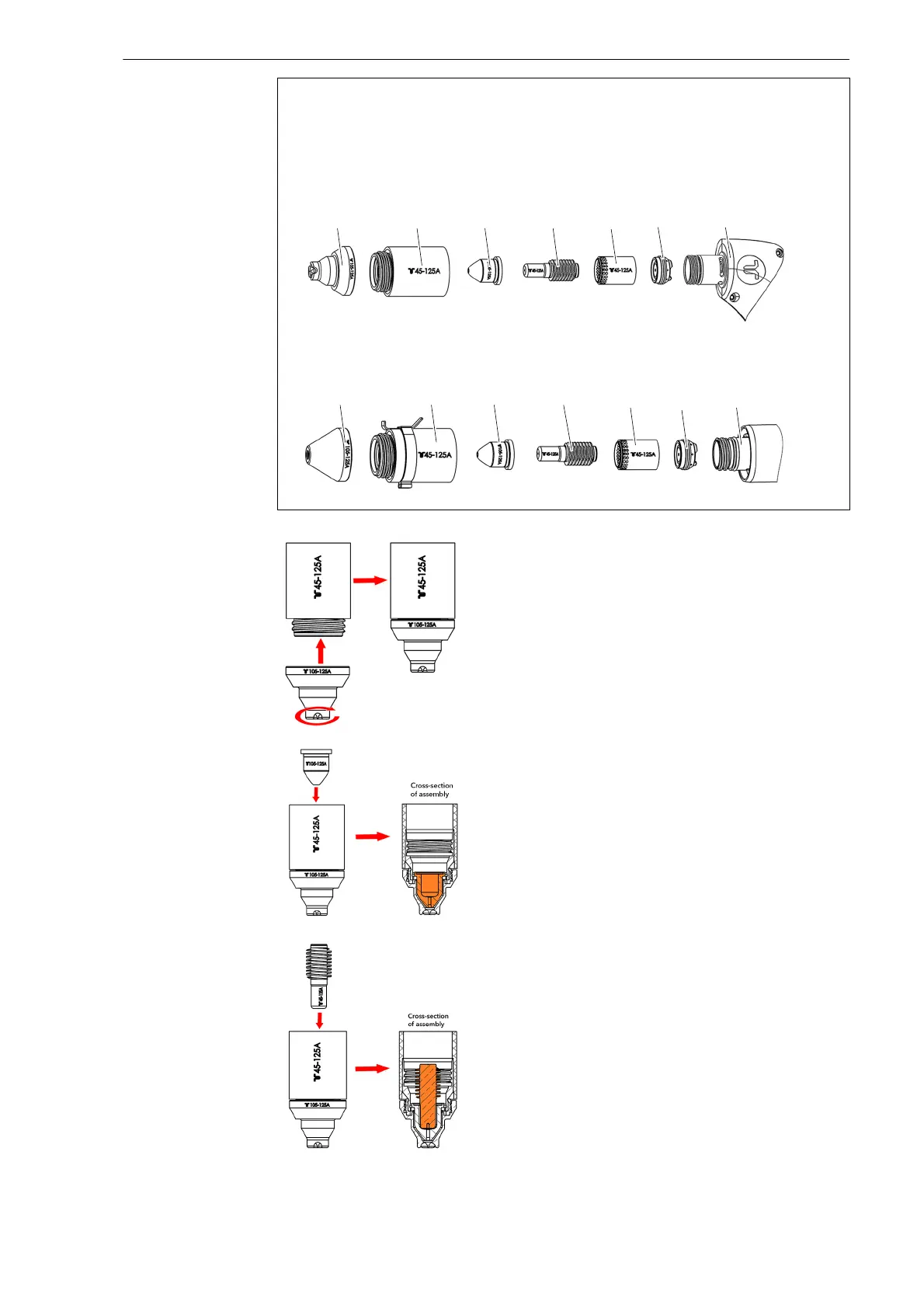

A Shield
B Retaining cap
C Nozzle
D Electrode
E Swirl ring
F Swirl ring holder
G Hand cutting torch/Machine cutting
torch
1
Screw shield onto retaining cap and
tighten by hand.
2 Insert nozzle into retaining cap with
shield.
3 Insert electrode into retaining cap
with shield and nozzle.
A BCDEF
Hand cutting torch
G
A BC D EF
Machine cutting torch
G
