Thermal Arc 500 - Power-Master 350 P Specifications

POWERMASTER 500, 500P, 350, 350P
2-8
March 17, 2006
Line Frequency: 50/60 HZ
Out put Current Range: 5 – 560 Amps
Out put Voltage Range: 10 – 44 Volts
Maximum Output Current: 600 Amps
Maximum Open Circuit Voltage (OCV): 70 Volts (57 Volts for CCC)
Operating Temperature Range: 0 – 40 C
Input Line Variations: ± 10%
Line Regulation: ± 1%
Load Regulation: ± 1%
Water Protection Class: IP23S
POWER
10A
A
V
GTAW SMAW GMAW
PULSED
GMAW
MODE SELECT
CONTACTOR REMOTE ON
PULSE SCHEDULE
PROGRAMMER
POWERMASTERPOWERMASTER
14.9 in / 378.5 mm
25.5 in /
64.7 cm
26.8 in /
68.0 cm
6.8 in /
172.7 mm
22.0 in / 55.9 cm
23.0 in / 58.4 cm
Art # A-06855
Net Weight: 154 lbs / 70 kg
350
350
2.10 Power-Master 350P Specifications
Line Voltage Line Current kVA Eff. PF Output
208 VAC/3 Phase 37 Amps 13.1 89% 0.83 300A/32V/100% Duty Cycle
230 VAC/3 Phase 33 Amps 13.1 89% 0.82 300A/32V/100% Duty Cycle
380 VAC/3 Phase 24 Amps 15.8 88% 0.82 300A/32V/100% Duty Cycle
400 VAC/3 Phase 19 Amps 13.1 89% 0.84 300A/32V/100% Duty Cycle
460 VAC/3 Phase 17 Amps 13.1 89% 0.84 300A/32V/100% Duty Cycle
208 VAC/3 Phase 43 Amps 15.4 89% 0.88 350A/34V/60% Duty Cycle
230 VAC/3 Phase 39 Amps 15.4 89% 0.87 350A/34V/60% Duty Cycle
380 VAC/3 Phase 28 Amps 18.4 88% 0.85 350A/34V/60% Duty Cycle
400 VAC/3 Phase 23 Amps 15.4 91% 0.86 350A/34V/60% Duty Cycle
460 VAC/3 Phase 20 Amps 15.4 90% 0.88 350A/34V/60% Duty Cycle
Input Data

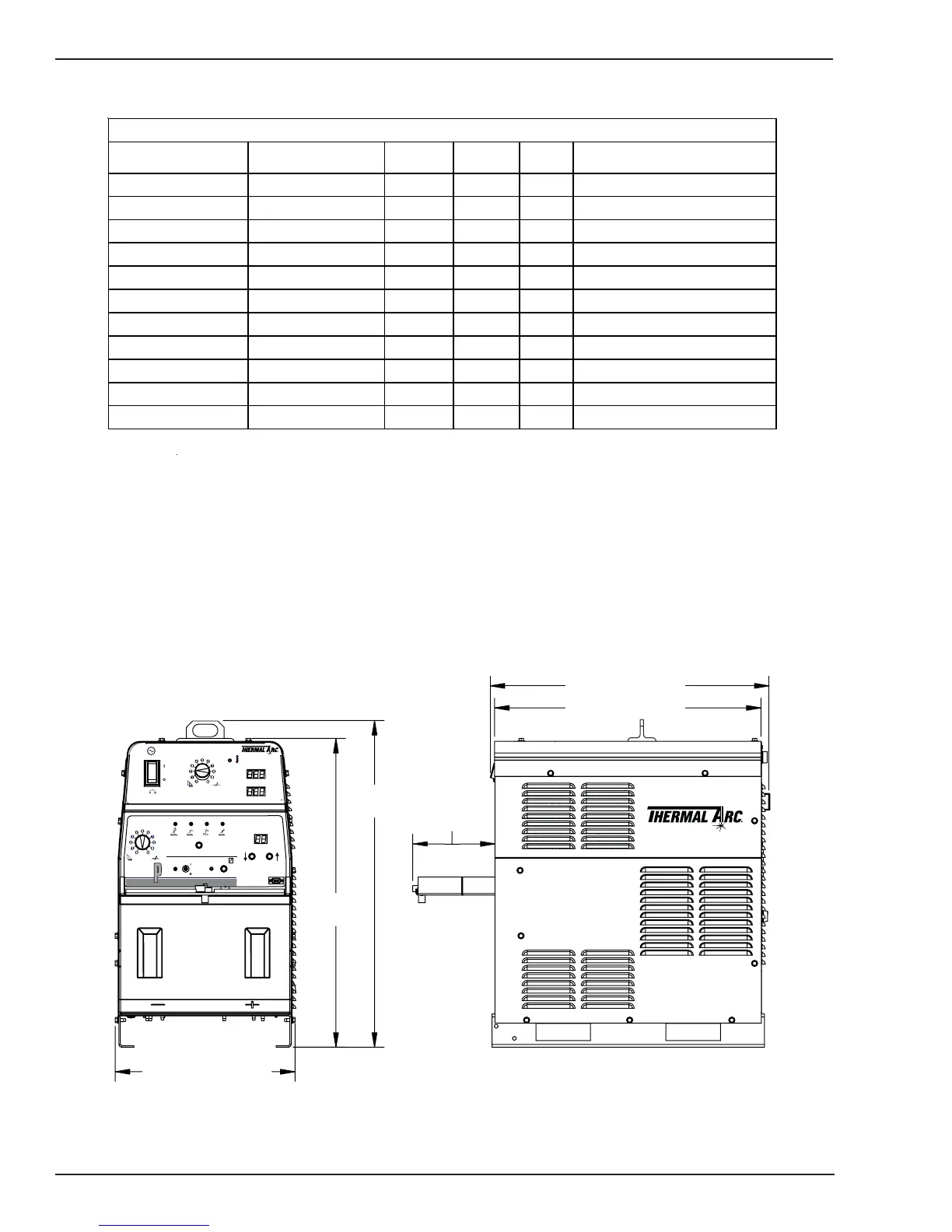

Figure 2-6: Power-Master 350P Dimensions
